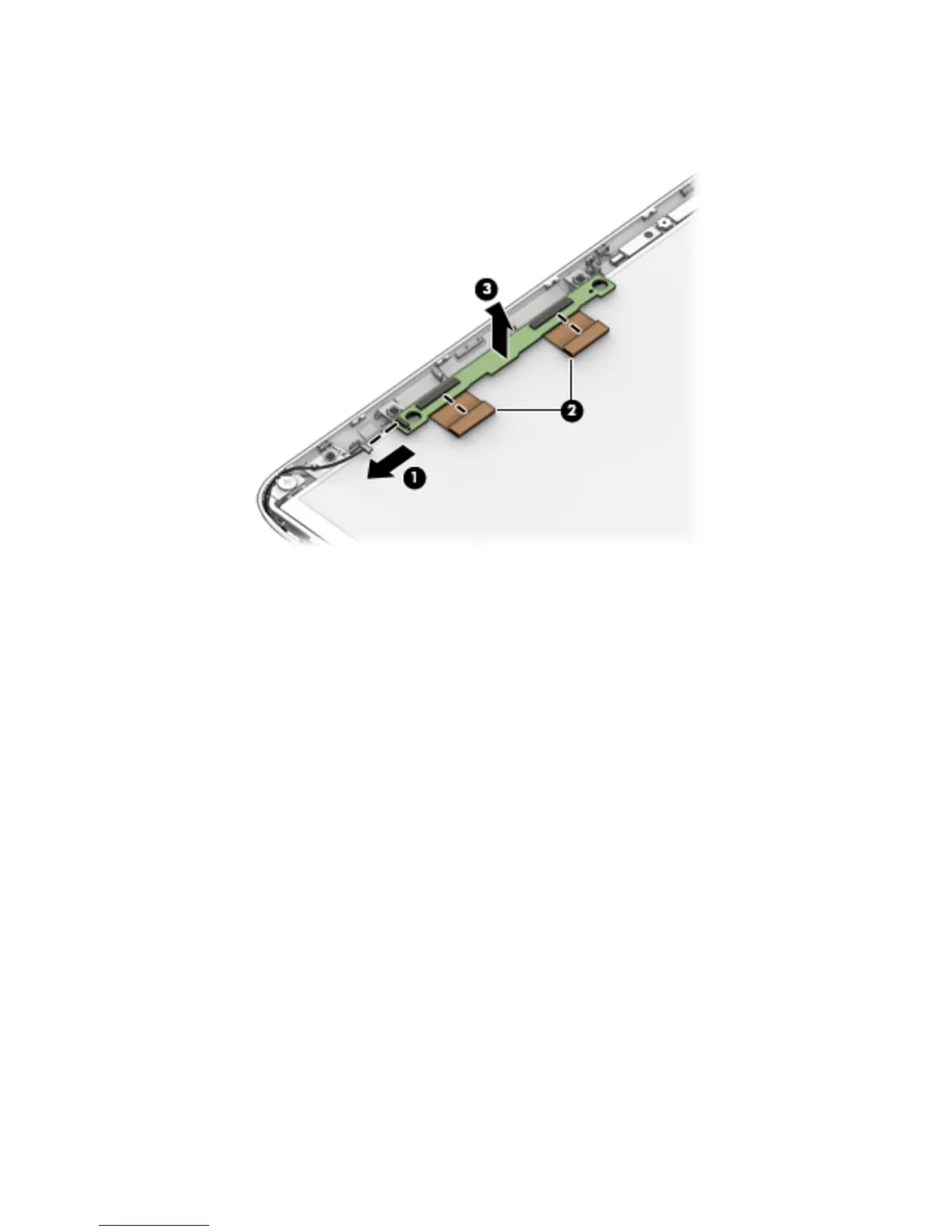

d. Disconnect the two larger cables from the board (2).
e. Remove the touch control board from the display assembly (3).
6. To remove the display hinges:
a. Remove the three Phillips broadhead PM2.5×3.0 screws (1) from the bottom of each hinge and the
Phillips broadhead PM2.5×3.0 screw (2) from the top of each hinge.
Component replacement procedures 73
