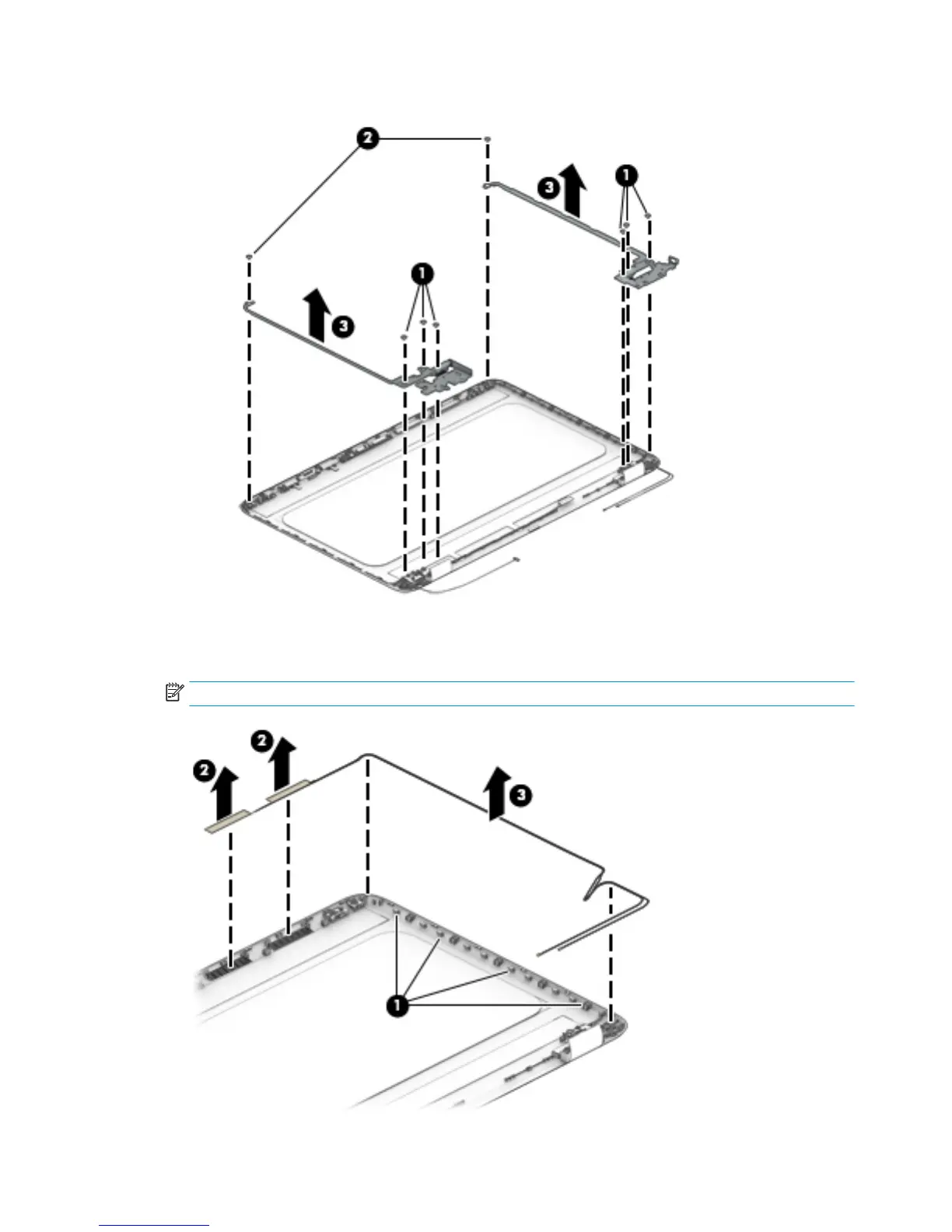

b. Remove the display hinges from the panel (3).
7. To remove the wireless antenna cables and transceivers, release the wireless antenna cables from the
clips (1) built into the back of the display, peel o the transceivers (2), and then remove the antenna
cables and transceivers (3).
NOTE: Number of antennas and transceivers may vary.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
