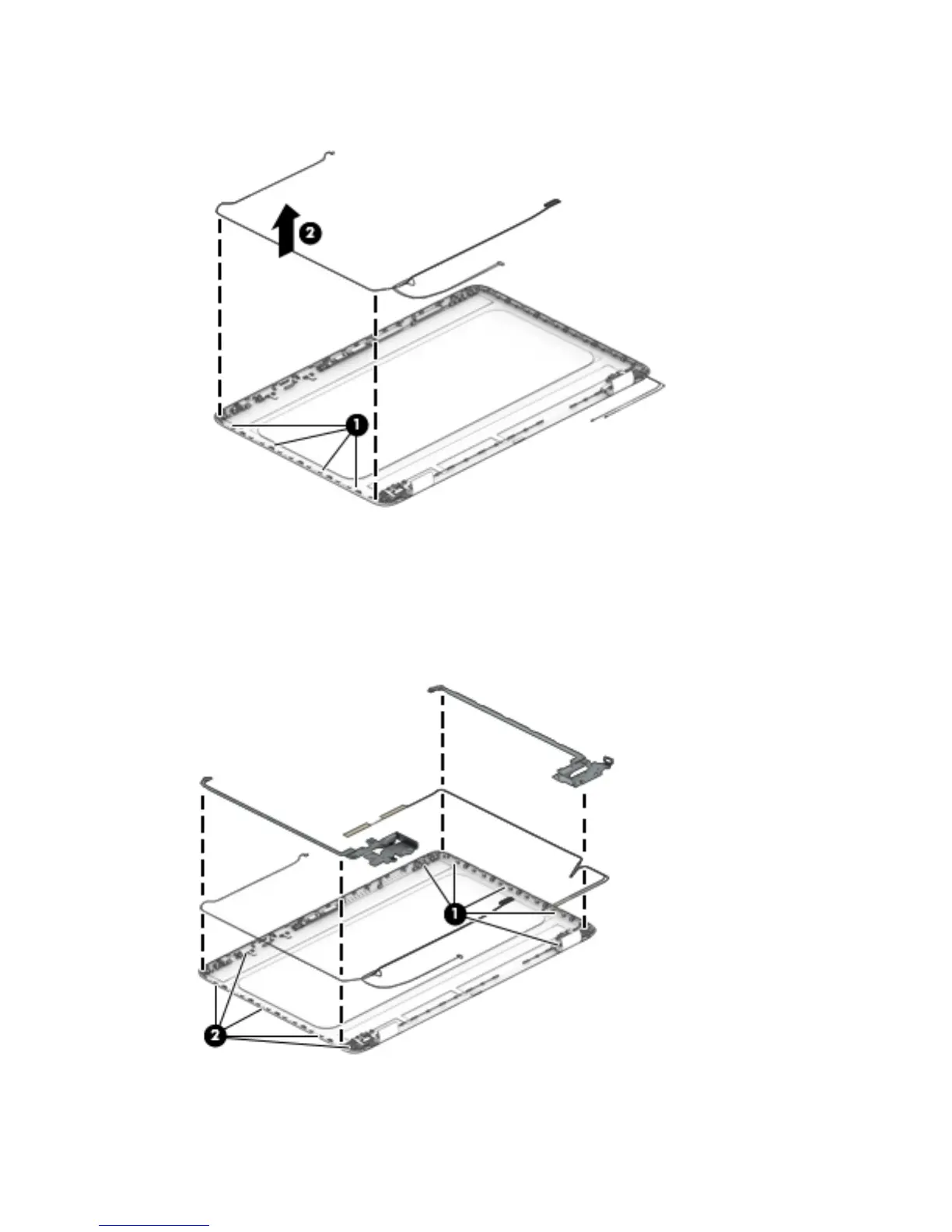

8. To remove the display/webcam cable, remove the cable from the clips built into the display panel (1),
and then remove the cable from the display (2).
9. If replacing the display enclosure, be sure that the subcomponents (including the webcam/microphone
module, the antenna receivers, and all associated cables and hardware) are transferred to the new
enclosure.
Reverse this procedure to reassemble and install the display assembly.
When reassembling and reinstalling the display assembly, note the routing of the antenna cable (1) and
display/webcam cable (2) as shown in the following image.
Component replacement procedures 75
