1-4 Product Overview

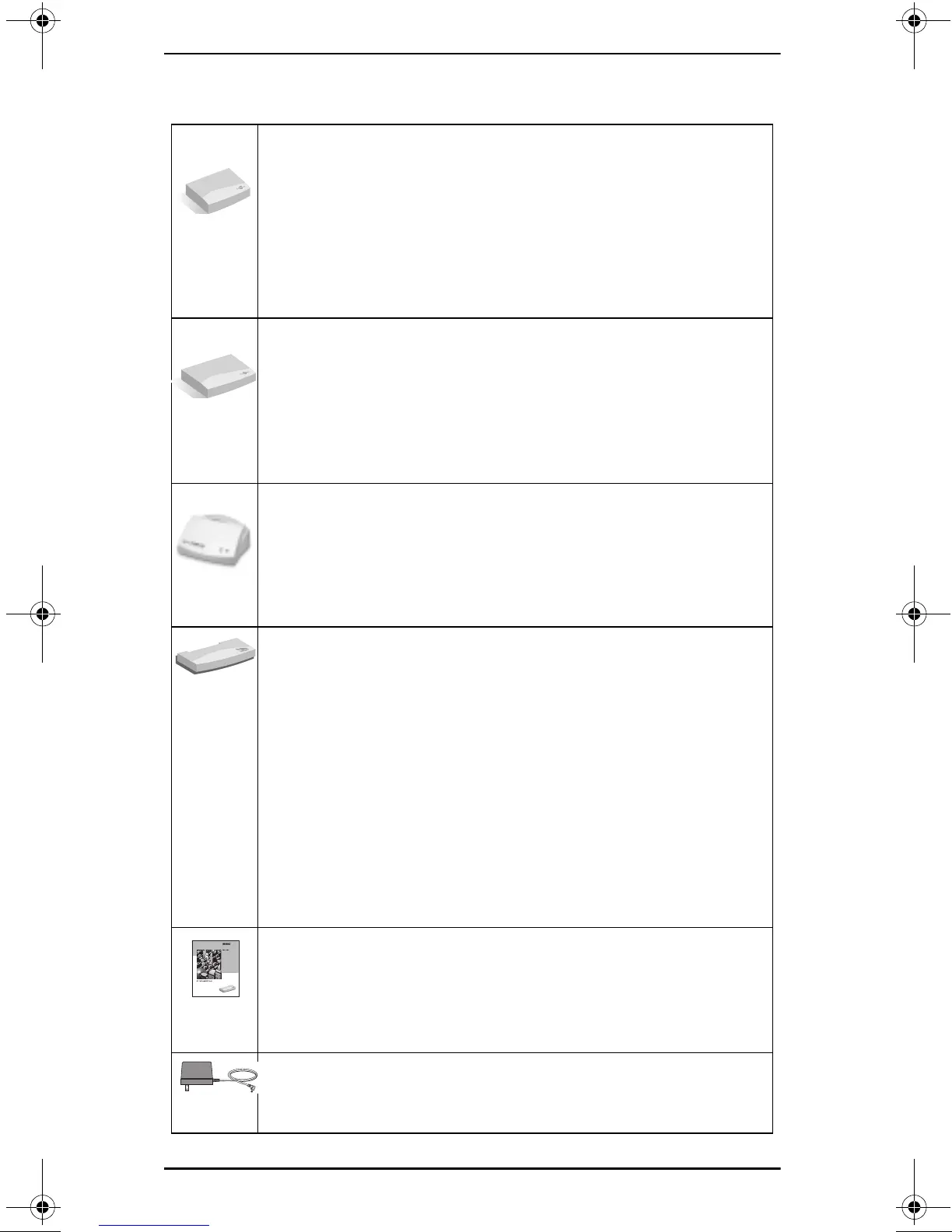

Components and Features
HP JetDirect 300X (J3263A):
●
Bidirectional parallel port (IEEE 1284).
●
Network port (Ethernet or Fast Ethernet): RJ-45 for 10Base-T
or 100Base-TX.
●
Test button (sends print server configuration page).
●
2 LEDs on front indicate LAN activity/status.
●
2 LEDs on back indicate 10 or 100 Mbps.
HP JetDirect EX Plus (J2591A):
●
Bidirectional parallel port (IEEE 1284).
●
Network port (Ethernet): RJ-45 (10Base-T) or BNC
(10Base2).
●
Test button (sends print server configuration page).
●
2 LEDs on front indicate LAN activity/status.
HP JetDirect 170X (J3258B):
●
Bidirectional parallel port (IEEE 1284).
●
Network port (Ethernet): RJ-45 (10Base-T).
●
Test button (sends print server configuration page).
●
2 LEDs on front indicate LAN activity/status.
HP JetDirect 500X (J3265A, J3264A):
●
3 bidirectional parallel ports (IEEE 1284).
●
Network port:
J3265A (Ethernet): RJ-45 (10Base-T, 100Base-TX) and
BNC (10Base2).
J3264A (Token Ring): DB9 (shielded twisted-pair) and
RJ-45 (unshielded twisted-pair).
●
Test button (sends print server configuration page to Port 1).
●
2 LEDs on front indicate LAN activity/status.
●
J3265A: 2 LEDs on back indicate 10 or 100 Mbps.
●
J3264A: switch for 4 or 16 Mbps.
HP JetDirect Quick Start Guide:
Included with every external print server. Explains how to install
the print server and configure it for Novell or Microsoft NOSs.
(For other NOSs, refer to the
user manuals on the HP JetDirect
CD-ROM.)
Power Module:
Included with every external print server: Provides power to the
HP JetDirect external print servers.
