Getting Started
Getting Started With the Web Interface
Interface Layout and Features

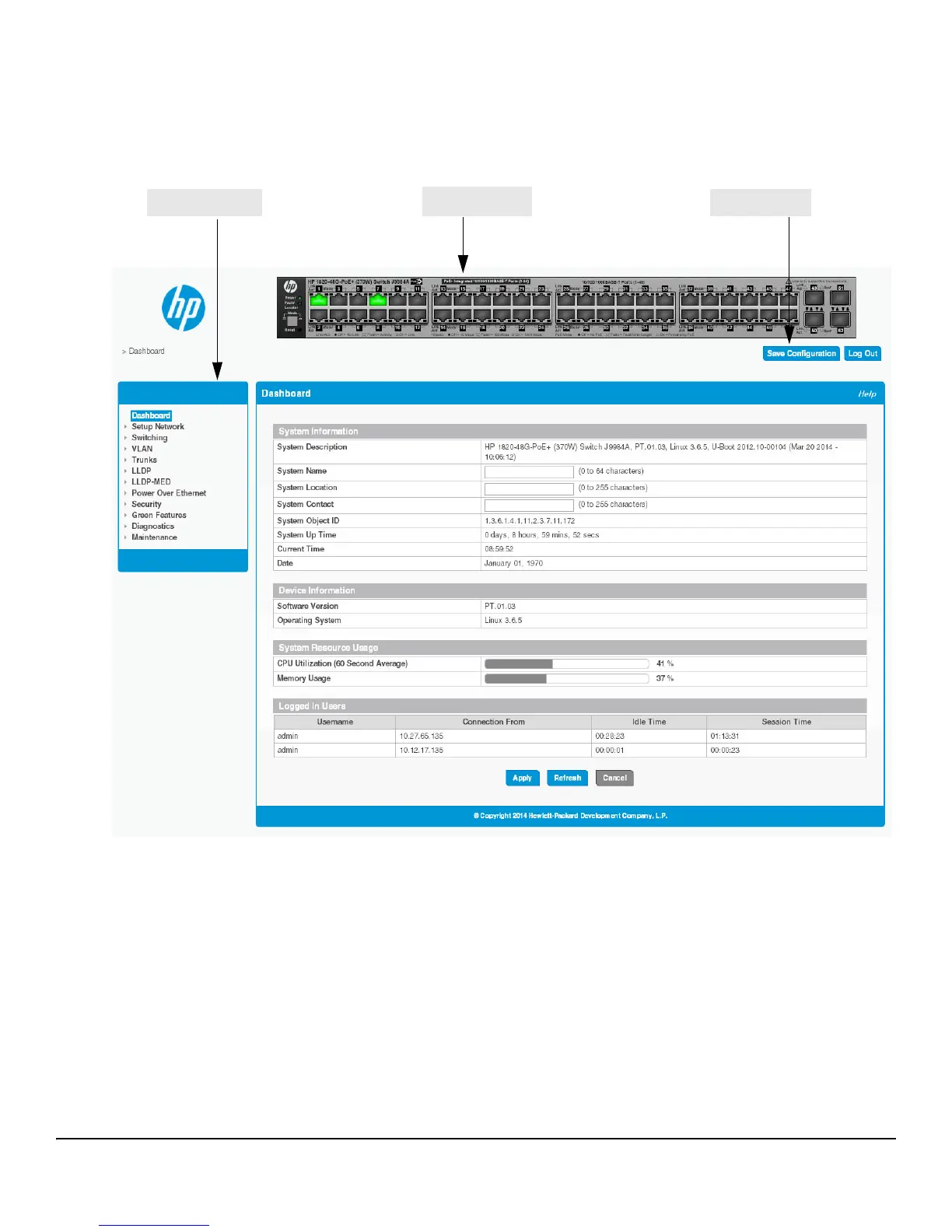

Figure 1-2 shows the initial view.
Figure 1-2. Interface Layout and Features
Click on any topic in the navigation page to display related configuration options.
The Dashboard page displays when you first log on and when you click Dashboard in the navigation pane. See
“Dashboard” on page 2-1 for more information.
You can click the Setup Network link beneath Dashboard to display the Get Connected page, which you use
to set up a management connection to the switch. See “Get Connected” on page 3-1 for more information.
The graphical switch displays summary information for the switch LEDs and port status. For information on
this feature see “Graphical Switch” on page 1-5.
Navigation Pane
Graphical Switch
Common Links

HP 1820 Specifications

General

Power Supply	Internal
Ports	8, 24, 48 RJ-45 10/100/1000 ports; depending on model
Management	Web-managed
Switching Capacity	16 Gbps (8-port), 52 Gbps (24-port), 104 Gbps (48-port)
Forwarding Rate	11.9 Mpps (8-port), 38.7 Mpps (24-port), 77.4 Mpps (48-port)
Mounting	Rack-mountable
Jumbo Frame Support	Yes
Operating Temperature	0°C to 40°C (32°F to 104°F)
