HP 2009m

20" LCD Color Monitor HP 2009M&2009F
16

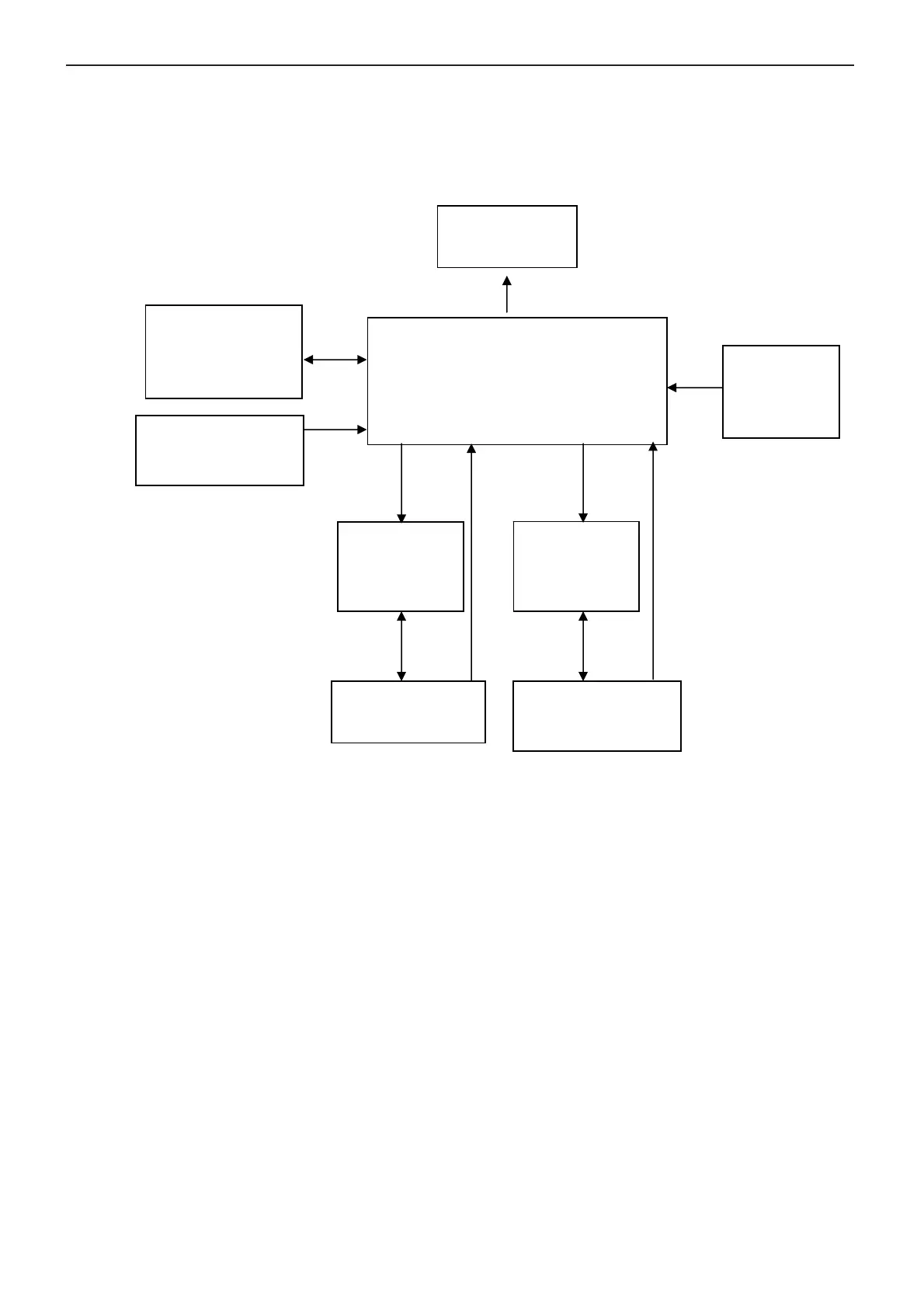

6.2 Electrical Block Diagram
6.2.1 Scalar Board
LCD Interface
(
CN402
)
Scalar TSUMU58EHLF(2009M)
TSUMO58GHL(2009F)
(Include: MCU, ADC, OSD etc)
(U401)
Key control Interface
(CN401)
D-SUB Connector
(CN101)
EEPROM
M24C02
(
U106
)
Crystal
14.318MHZ
(X401)
EEPROM
PM25LV010A
(U402)
DVI Connector
(
CN102
)
EEPROM
M24C02
(
U107
)
