HP 2009m User Manual

20" LCD Color Monitor HP 2009M&2009F
9

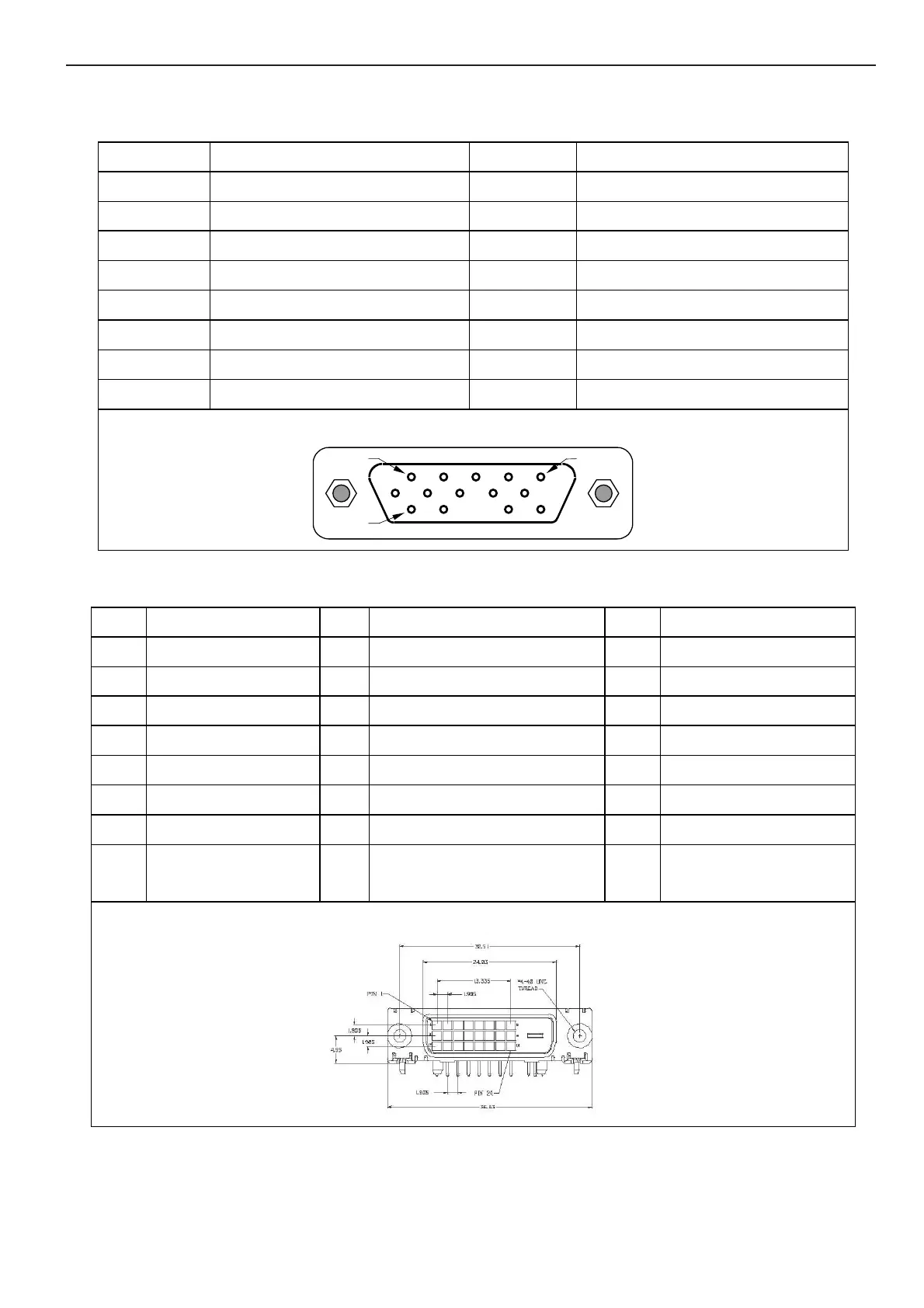

4. Input/Output Specification
4.1 Input Signal Connector
Pin Signal Pin Signal
1 Red Video 9 3.3/+5 V (from PC)
2 Green Video 10 Sync Ground
3 Blue Video 11 None
4 None 12 DDC Data
5 Ground (DDC Return) 13 Horizontal Sync
6 Red GND 14 Vertical Sync
7 Green GND 15 DDC Clock
8 Blue GND
VGA connector layout
PIN 1
PIN 5
PIN 11
Pin Signal Pin Signal Pin
Signal
1
TMDS Data 2 -
9
TMDS Data 1 -
17
TMDS Data 0 -
2 TMDS Data 2 + 10 TMDS Data 1 + 18 TMDS Data 0 +
3
TMDS Data 2 / 4 Shield
11
TMDS Data 1 / 3 Shield
19
TMDS Data 0 / 5 Shield
4
TMDS Data 4 -
12
TMDS Data 3 -
20
TMDS Data 5 -
5
TMDS Data 4 +
13
TMDS Data 3 +
21
TMDS Data 5 +
6
DDC Clock
14
+3.3/+5V Power (from PC)
22
TMDS Clock Shield
7
DDC Data
15
Ground (Return for +5V)
23
TMDS Clock +
8
No Connect
16
Hot Plug Detect (connect internally
to pin-14)
24
TMDS Clock -
DVI-D digital connector layout

HP 2009m Specifications

General

3D	No
Pixel pitch	0.2768 x 0.2768 mm
Aspect ratio	16:9
Display diagonal	20 \
Display resolution	1600 x 900 pixels
Vertical scan range	50 - 76 Hz
Horizontal scan range	24 - 83 kHz
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1600 x 900
On/off switch	Yes
DVI-I ports quantity	0
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	47 W
Power consumption (standby)	2 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Certification	FCC
Country of origin	China

Weight and Dimensions

Depth (without stand)	289 mm
Width (without stand)	523 mm
Height (without stand)	480 mm
Weight (without stand)	9000 g
