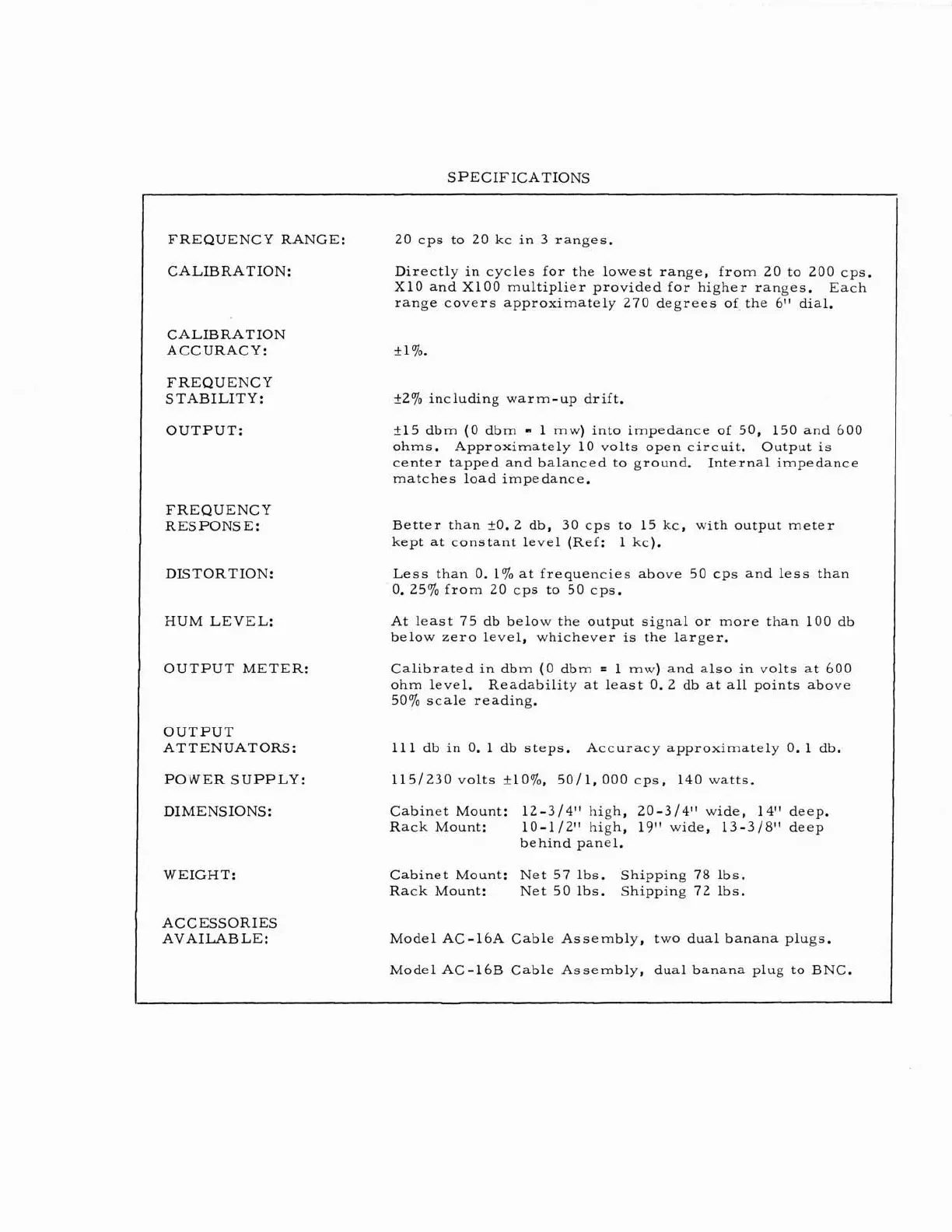

SPECIFICATIONS
FREQUENCYRANGE:
CALIBRATION:
CALIBRATION
ACCURACY:
FREQUENCY
STABILITY:
OUTPUT:
FREQUENCY
RESPONSE:
DISTORTION:
XUM LEVEL:
OUTPUT METER:
OUTPUT
ATTENUATORS:
POWER SUPPLY:
DIMENS IONS
:
WEIGHT:
ACCESSORIES
AVAIUBLE:
20 cps to 20 kc in 3 ranges.
Directly in cycles for the lowest range,
from
20 to 200 cps.
X10 and XlOO multiplier provided for higher ranges.
Each
range covers approximately 270 degrees
of. the 6" dial.
f270 including warm-up drift.
f15 dbm (0 dbm
-
1 mw) into impedance of 50, 150 and 600
ohms. Approximately 10 volts open circuit. Output is
center tapped and balanced to ground. Internal impedance
matches load impedance.
Better than
f0. 2 db, 30 cps to 15 kc,
with output meter
kept at constant level (Ref:
1
kc).
Less than
0. 170 at frequencies above 50 cps and less than
0.
2570 from 20 cps to 50 cps.
At least 75 db below the output signal or more than 100 db
below zero level,
whichever is the larger.
Calibrated in dbm
(0 dbm
=
1 mw) and also in volts at 600
ohm level. Readability at least 0. 2 db at
all
points above
5070 scale reading.
111 db in
0. 1 db steps. Accuracy approximately 0. 1 db.
1151230 volts
+1070, 501 1,000 cps, 140 watts.
Cabinet Mount:
12-3/4" high, 20-3/4" wide, 14" deep.
Rack Mount: 10-1
12" high, 19" wide, 13-318" deep
behind panel.
Cabinet Mount: Net 57 lbs. Shipping 78 lbs.
Rack Mount: Net 50 lbs. Shipping 72 lbs.
Model
AC -16A Cable Assembly, two dual banana plugs.
Model AC-16B Cable Assembly, dual banana plug to BNC.
