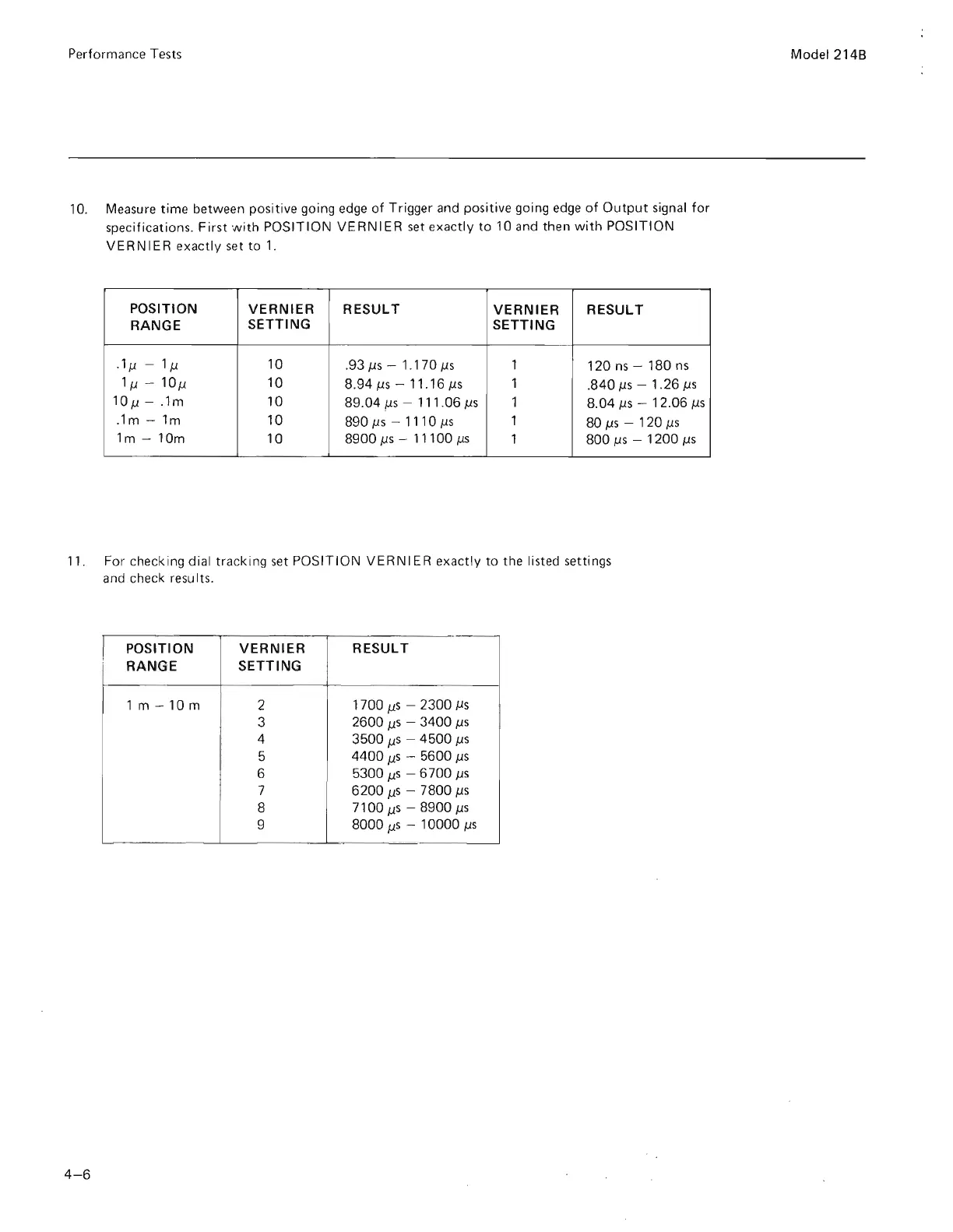

Performan ce Tests
10. Measure
time between positive going edge of Trigger and positive going edge of Output signal for
specifications. First with POSITION VERNIER set exactly to 10 and then with POSITION
VERNIER exactly se t to 1.
POSITION
VERNIER RESULT
VERNIER RESULT
RANGE
SETTING
SETTING
. 1J..l - 1 J..l
10
.93 J..ls - 1.170 J..ls
1
120 ns - 180 ns
1 J..l - 10J..l
10
8.94 J..ls - 11 .16 J..ls
1
. 840 J..ls - 1.26 J..ls
10J..l -. lm 10
89.04 f-!s - 111.06 J..lS
1
8.04 J..ls - 12. 06 J..lS
.1m - 1m
10
890 !1S - 1110 !1s
1
80
J..lS - 120 J..ls
1 m - 10m
10 8900 J..lS - 11100 !1s
1 800 J..lS - 1 200 J..lS
11 . For checking dial tracking set POSITION VERNI ER exactly to the listed settings
and check
resu Its.
.._-
I
POSITION VERNIER
RESULT
RANGE
SETTING
1 m - 10 m
2
1700 !1s - 2300 JJ.s
3 2600 JJ.s - 3400 JJ.S
4
3500 !1s - 4500 JJ.S
5 4400 JJ.s - 5600 JJ.S
6 5300 J..ls - 6700 J..ls
7 6200 JJ.s - 7800 ps
8
71 00 pS - 8900 J..lS
9 8000 pS - 10000 !1s
4-6
