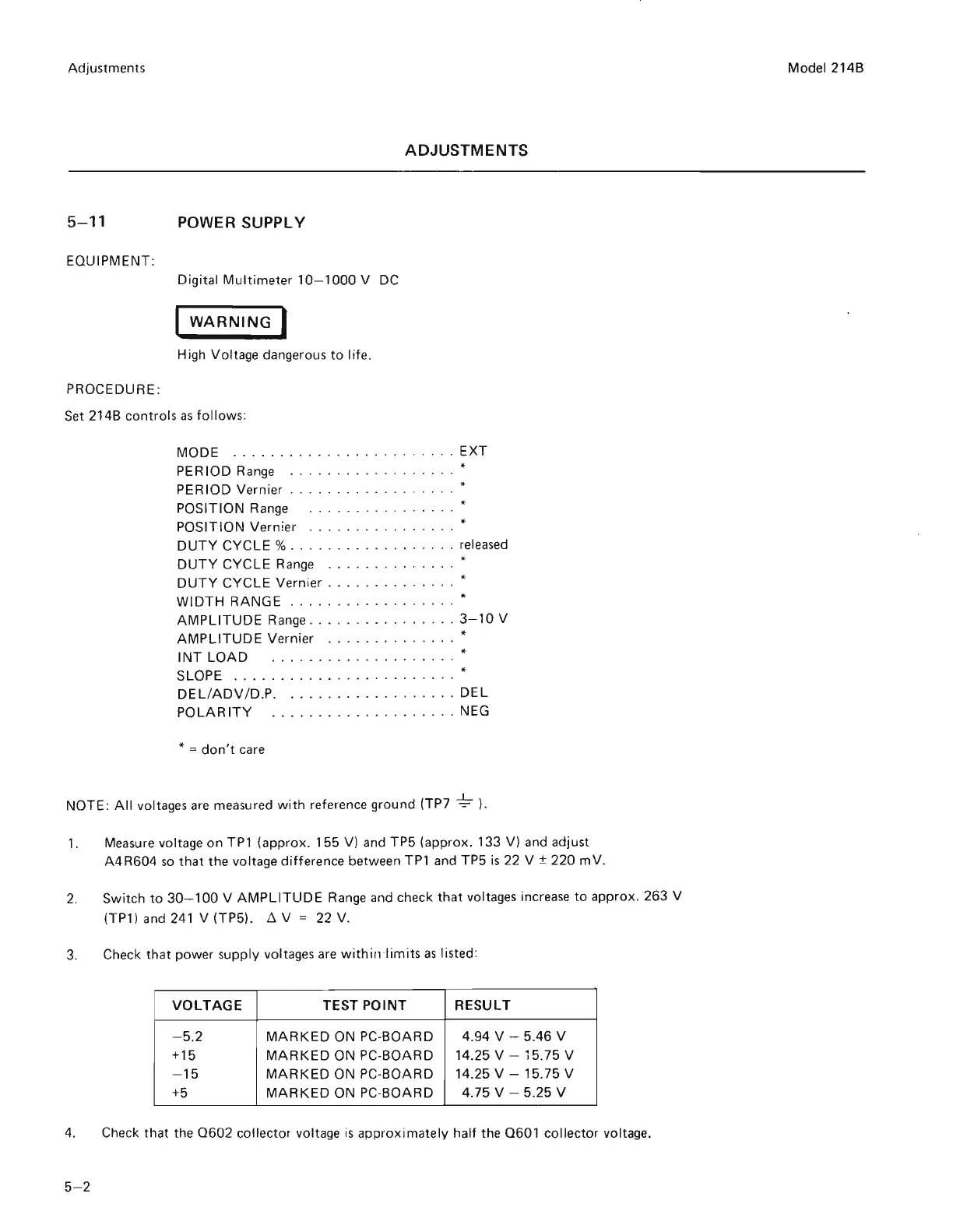

Adjustments
ADJUSTMENTS
5-11
POWER SUPPLY
EQUIPMENT:
Digital
Multimeter
10-1000
V DC
I
WARNING
I
High Voltage dangerous
to
life.
PROCEDURE:
Set 214B controls
as
follows:
MODE
..............
. .
.....
...
EXT
PERIOD
Range
.
..
..
.
............
*
PERIOD Vernier
...
....
. .
..
.......
*
POSITION
Range
.......
.
.......
.
POSITION Vernier . .
.......
.
... ...
*
DUTY
CYCLE %
...
......
.
...
. . .
..
released
DUTY
CYCLE
Range
......
.
.......
*
DUTY
CYCLE Vernier
..
. . . . .
..
.
....
*
WIDTH
RANGE
. .
.....
....
..
.
....
*
AMPLITUDE
Range
...
..
..
..
.......
3-10
V
AMPLITUDE
Vernier
....
...
..
.
....
*
INT
LOAD
.........
..
..
.....
. . *
SLOPE
........
.
...
.
..
. .
.......
*
DEL/ADV/D.P
.......
......
.
.....
DEL
POLARITY
......
.
..
...
.
.......
NEG
* =
don't
care
NOTE:
All
voltages
are
measured
with
reference ground (TP7
~
).
1. Measure voltage on
TPl
(approx. 155 V) and TP5 (approx. 133 V) and adjust
A4R604
so
that
the voltage difference between
TPl
and TP5
is
22 V ± 220 mY.
2. Switch
to
30-100
V
AMPLITUDE
Range
and check
that
voltages increase
to
approx. 263 V
(TPll
and
241
V (TP5) .
~
V = 22 V.
3. Check
that
power supply voltages
are
within
limits
as
listed:
VOLTAGE
TEST
POINT
RESULT
-5.2
MARKED
ON PC-BOARD
4.94 V - 5.46 V
+15
MARKED
ON PC-BOARD
14.25 V - 15.75 V
-15
MARKED
ON
PC
-
BOARD
14.25 V - 15.75 V
+5
MARKED
ON
PC
-
BOARD
4.75 V - 5.25 V
4. Check
that
the
0602
collector voltage
is
approximately half the
0601
collector voltage.
5-2
Model 214B
