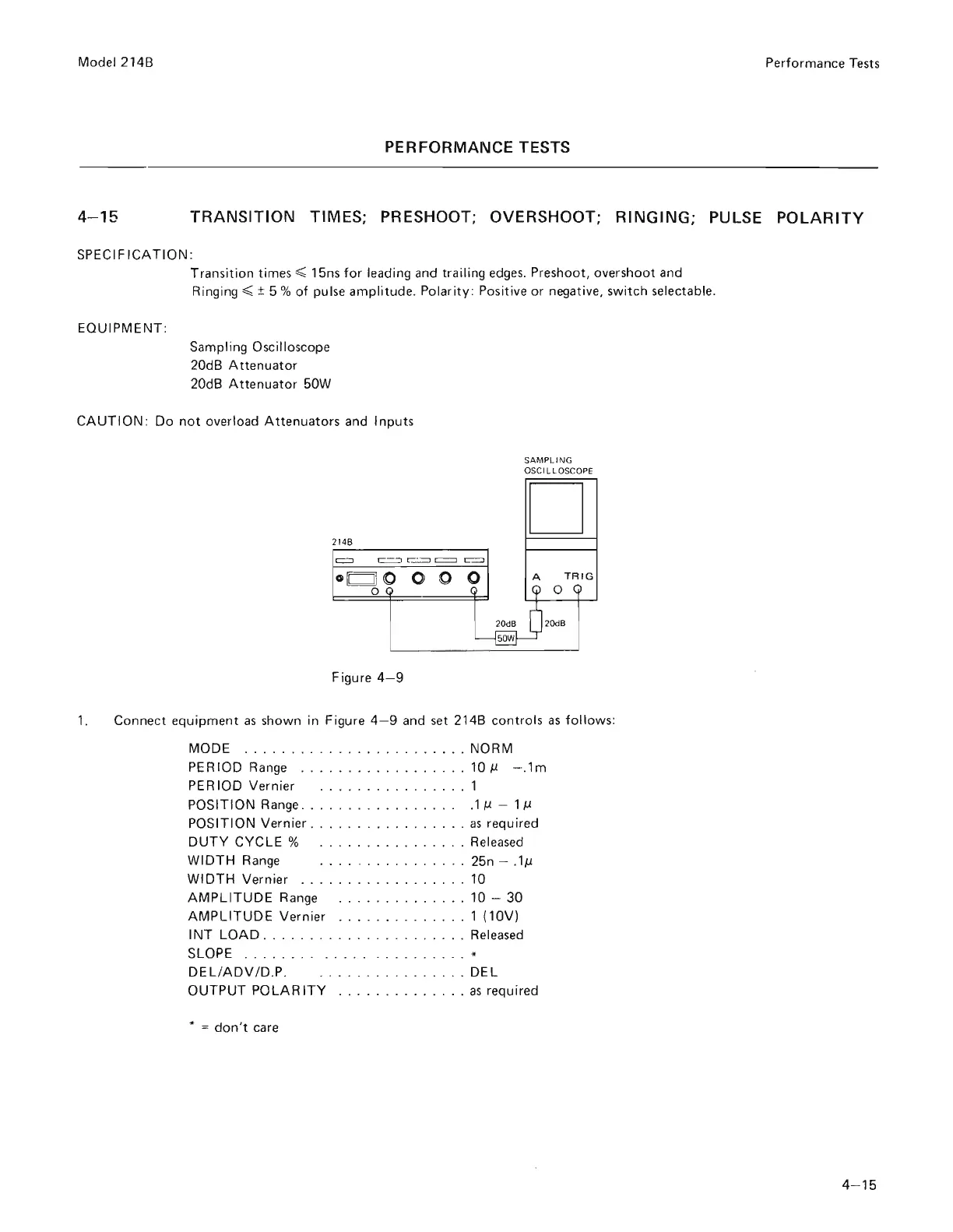

Model 214B
Performance Tests
PERFORMANCE TESTS
4-15
TRANSITION
TIMES; PRESHOOT; OVERSHOOT;
RINGING;
PULSE
POLARITY
SPECIFICATION
:
EQUIPMENT
:
Transition times
< 15ns
for
leading and trailing
edges.
Preshoot, overshoot and
Ringing < ± 5 %
of
pulse
amplitude
. Polarity: Positive or negative, switch selectable.
Sampling Oscilloscope
20dB A
ttenuator
20dB
Attenuator
50W
CAUTION:
Do
not
overload
Attenuators
and Inputs
SA
MPLING
OSCI L
LOSCO
PE
D
2
146
=
c.=:=J
t:::.=:J
c::::::=::::I
C=:J
o
t--==:il
0
0
0
0
A
TRIG
0
9
o (
W
2~
6
50
W
Figure 4- 9
1. Connect equipment
as
shown in Figure 4- 9 and
set
214B controls
as
follows:
MODE
............
..
....
.
..
.
..
NORM
PERIOD Range
...
..
....
....
. . .
..
10
J.1
- .
lm
PERIOD Vernier
..
... ...
.
..
.. ..
. 1
POSITION Range .
..
.
...
.
....
.
...
, .1
J.1
- 1
J.1
POSITION Vernier
..
..
. .
..
.
.......
.
as
required
DUTY
CYCLE
% .
.........
..
.. ..
Released
WIDTH
Range
.
.......
.
..
.
..
. .
25n-
.
1J.1
WIDTH
Vernier
.....
.
.....
..
.....
10
AMPLITUDE
Range
... ...
.
..
. . . . . 10 -
30
AMPLITUDE
Vernier
...
..
.
..
.
.....
1 (10V)
INT
LOAD
..
. .
..
...
. . . . . .
..
..
...
Released
SLOPE . . . . . . .
..
.
...
. .
......
. . *
DELIADV
/D.P. .
..
. . . .
..
. .
....
.
DEL
OUTPUT
POLARITY
..........
.
...
as
required
* ;
don't
care
4-15
