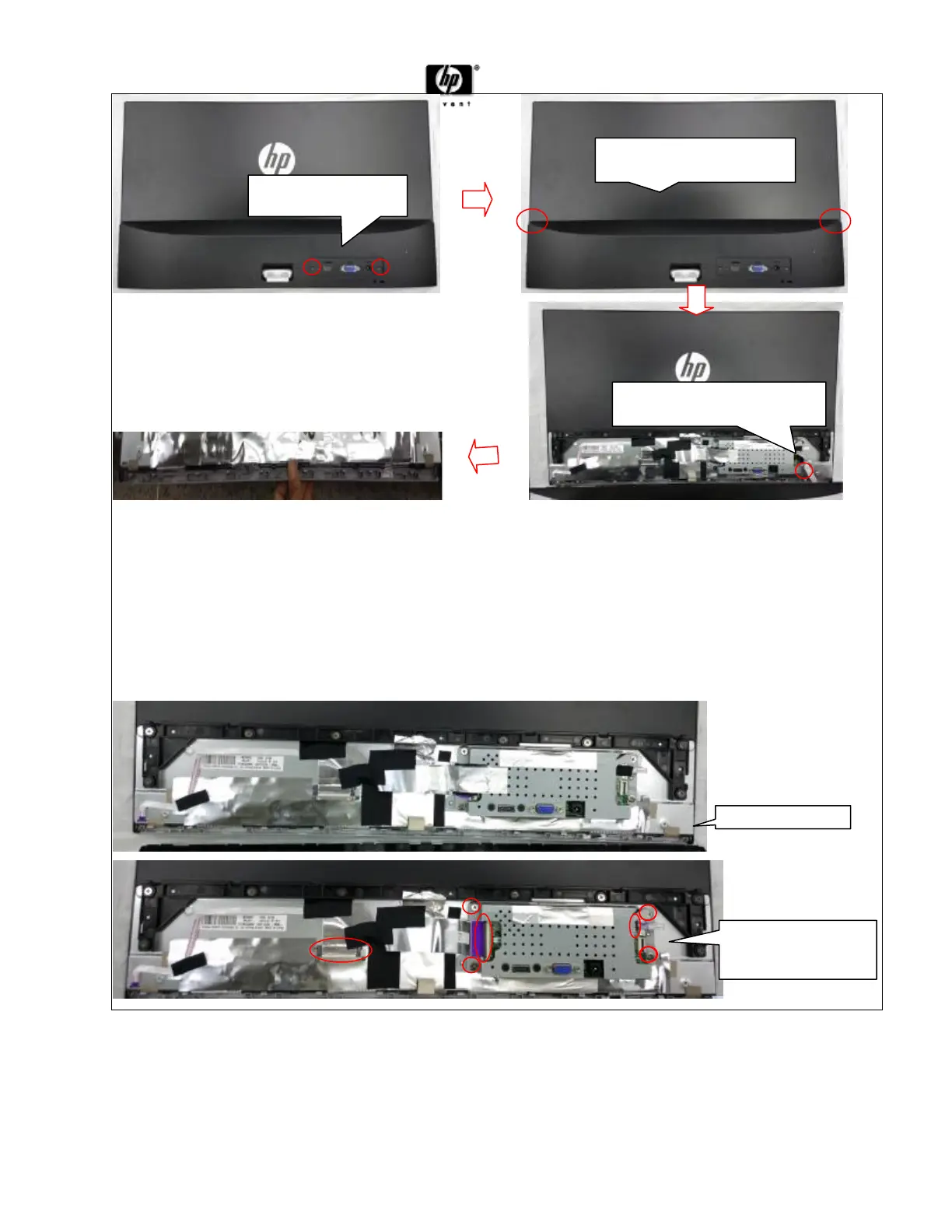

Step 3: To remove the shielding(contain the other material );
(3.1) Remove the acetate tapes covering the LVDS/ LED FFCs;
(3.2) Pull out the LVDS/ LED FFCs to separate the base assembly from the unit;
(3.3) Remove the four screws to separate shielding from CB
(3.4) Dismantle the rear cover supporter
Remove the screws with
Screwdriver
Dismantle the rear cover first
from the two marked position
Remove the 8pin FFC from main
board then remove rear cover
Remove all tapes
Pull out all FFCs
connectors and remove
screws

HP 22es Specifications

General

Display Size	21.5 inches
Resolution	1920 x 1080 (Full HD)
Panel Type	IPS
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	1000:1
Refresh Rate	60 Hz
Viewing Angle	178° horizontal / 178° vertical
Connectivity	VGA, HDMI
Color Support	16.7 million colors
Response Time	7 ms
