5. Disconnect the WLAN module antenna cables from the WLAN module (see WLAN module
on page 64).
6. Remove the following components:
●
Hard drive (see
Hard drive on page 70)
●
Keyboard (see
Keyboard on page 76)
●
Top cover (see
Top cover on page 79)
●
USB board (see
USB board on page 89)
●
Power connector cable (see
Power connector cable on page 91)
To remove the display assembly in its entirety:

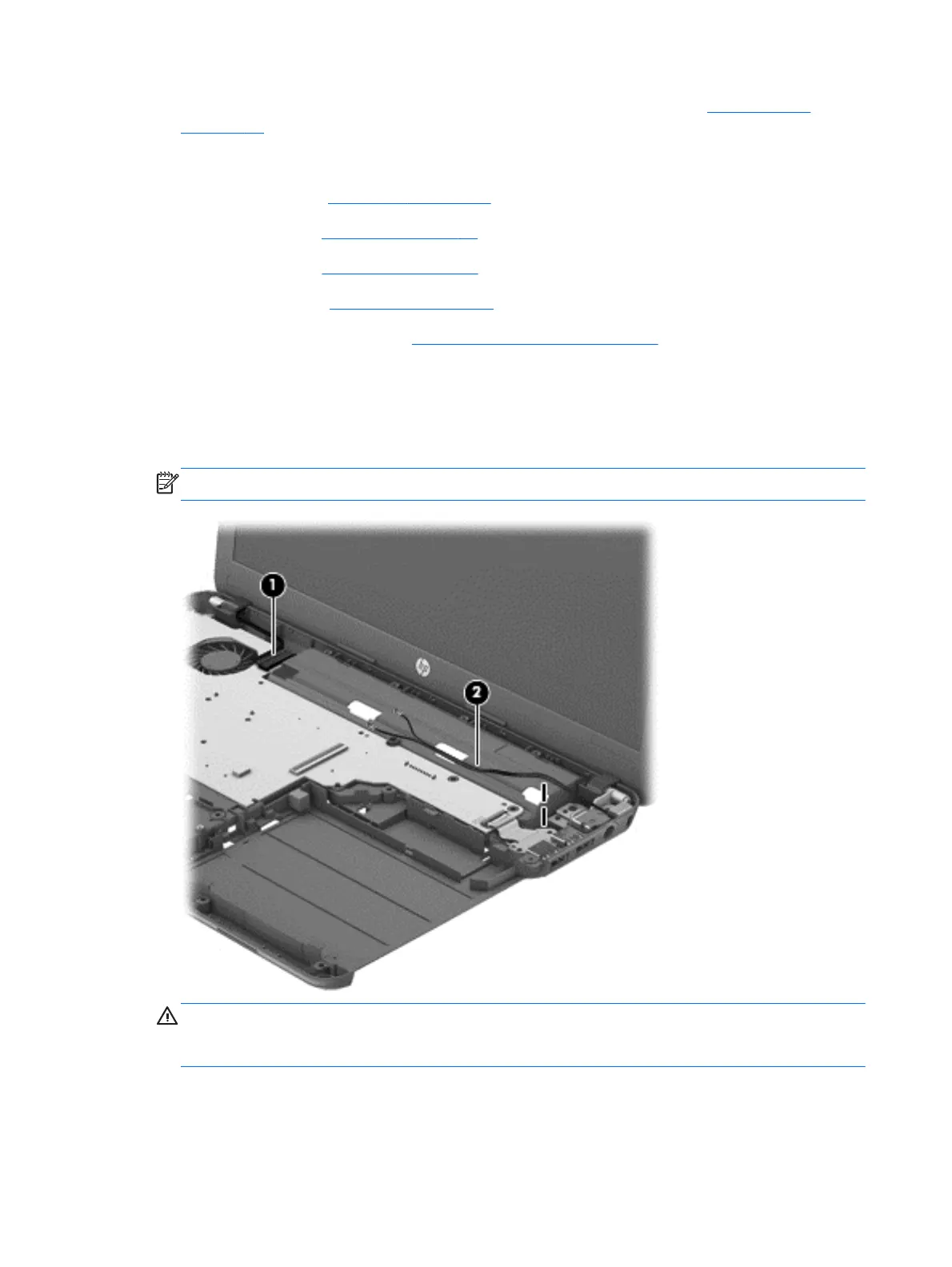

1. Disconnect the display panel cable (1) from the system board.
2. Release the wireless antenna cables from the clips (2) built into the base enclosure.
NOTE: Models may have either one or two antennas installed.
CAUTION: Support the display assembly when removing the following screws. Failure to
support the display assembly can result in damage to the display assembly and other
computer components.
3. Remove the five Phillips PM2.5×6.0 screws (1) that secure the display assembly to the computer.
94 Chapter 4 Removal and replacement procedures
