To remove the fan/heat sink assembly:
1. Disconnect the fan cable (1) from the system board.
2. Loosen the screws on the heat sink (2) that secure the fan/heat sink assembly to the system board.
NOTE: The number of screws used to secure the fan/heat sink assembly to the system board
varies by computer model.
3. Remove the Phillips PM2.0×3.0 screw (3) that secures the fan/heat sink assembly to the system
board.
4. Remove the fan/heat sink assembly (4).
NOTE: Due to the adhesive quality of the thermal material located between the heat sink and
system board components, it may be necessary to move the heat sink from side to side
to detach it.

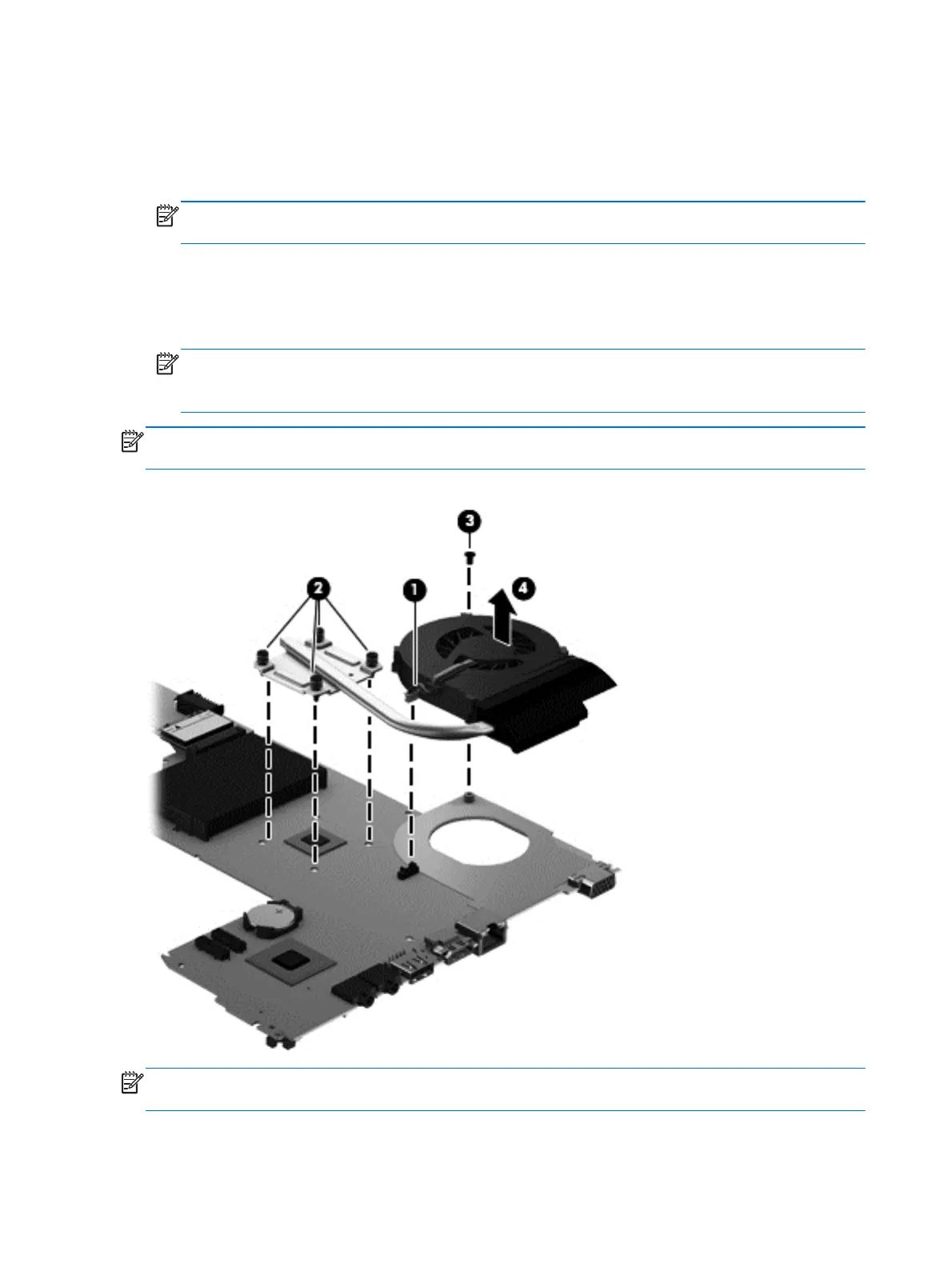

NOTE: The following illustration shows the fan/heat sink assembly removal process on a computer
model equipped with an AMD processor.
NOTE: The following illustration shows the fan/heat sink assembly removal process on a computer
model equipped with an Intel processor and a graphics subsystem with discrete memory.
110 Chapter 4 Removal and replacement procedures
