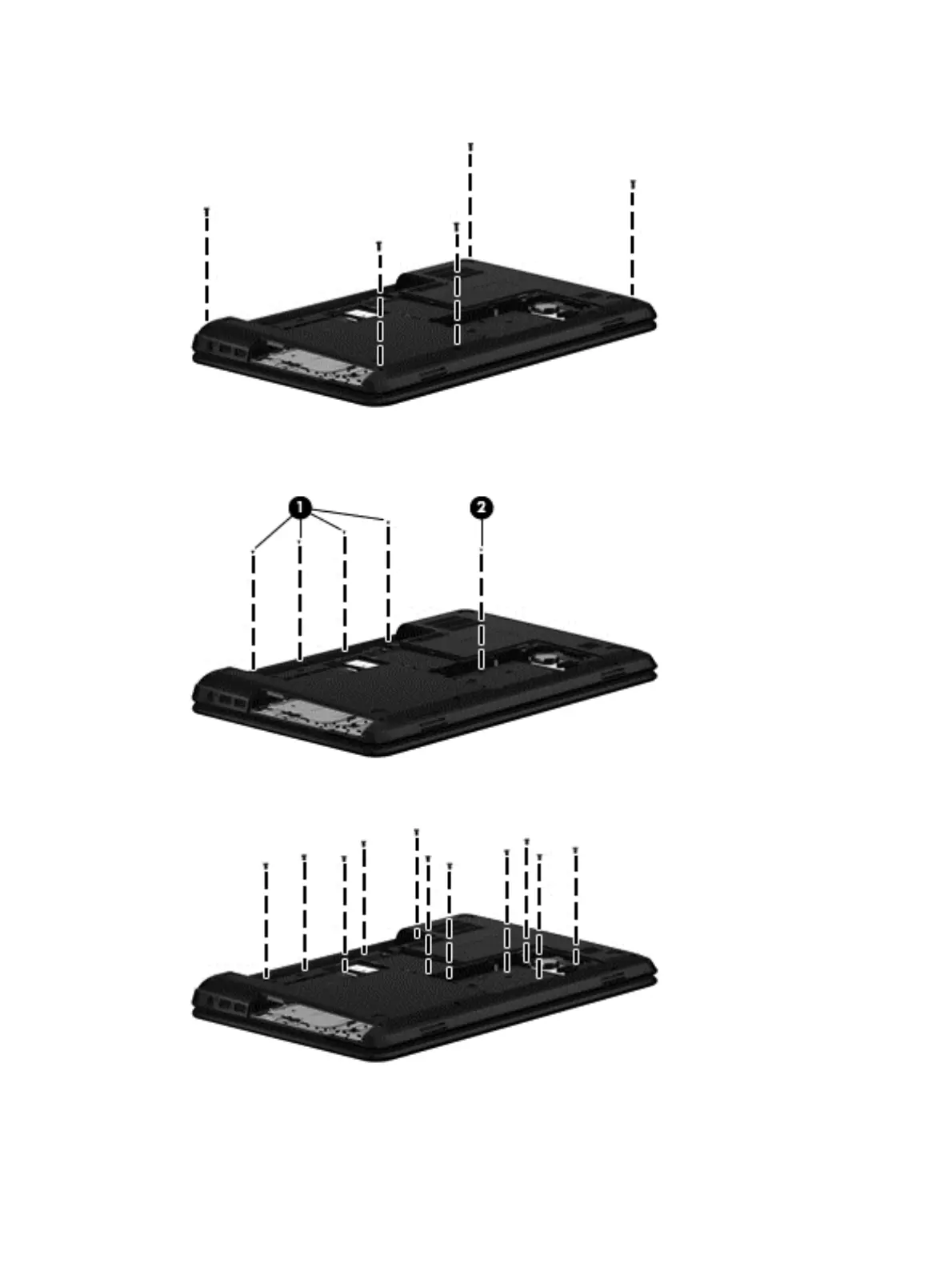

2. Remove the five Phillips PM2.5×6.0 screws that secure the top cover to the computer.
3. Remove the four Phillips PM1.6×2.0 screws (1) and the Phillips PM2.0×3.0 screw (2) that secure
the top cover to the computer.
4. Remove the eleven Phillips PM2.5×4.0 screws that secure the top cover to the computer.
5. Turn the computer right-side up with the front toward you, and then open the computer.
80 Chapter 4 Removal and replacement procedures
