5. Remove the optical drive (see Optical drive on page 31), if installed.
6. Remove the bottom cover (see Bottom cover on page 34).

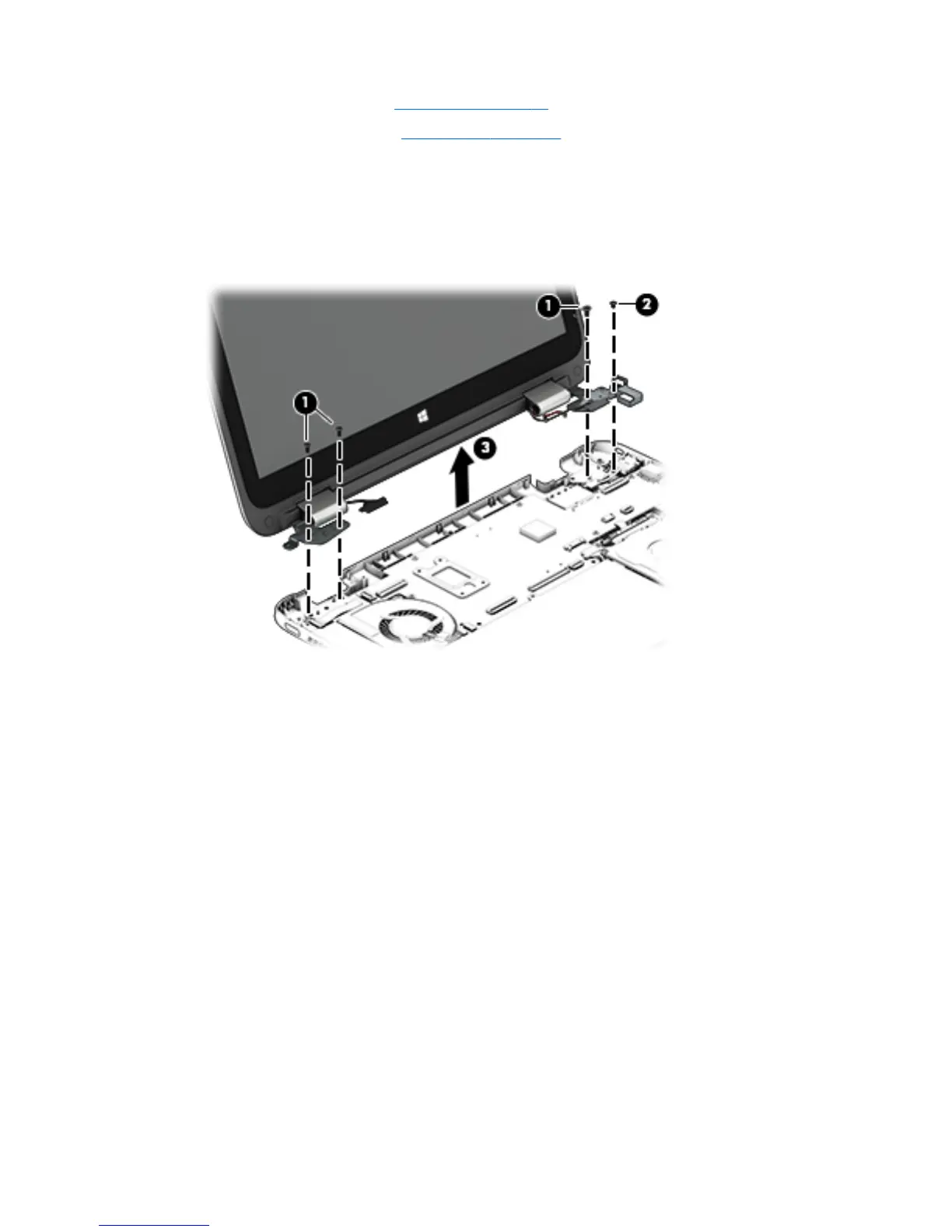

To remove the display assembly:
1. Remove the three Phillips PM2.5×5.0 screws (2), two Phillips broadhead PM2.0×2.0 screws (2) (on the
right hinge), and one Phillips PM2.5×3.5 screw (3) (on the left hinge) that secures the display assembly
to the computer.
2. Lift the display from the computer (4).
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display bezel:
a. Remove the two screw covers (1) and two Phillips PM2.5×3.5 screws (2) that secure the display
bezel to the enclosure.
Component replacement procedures 61
