2 External component identification

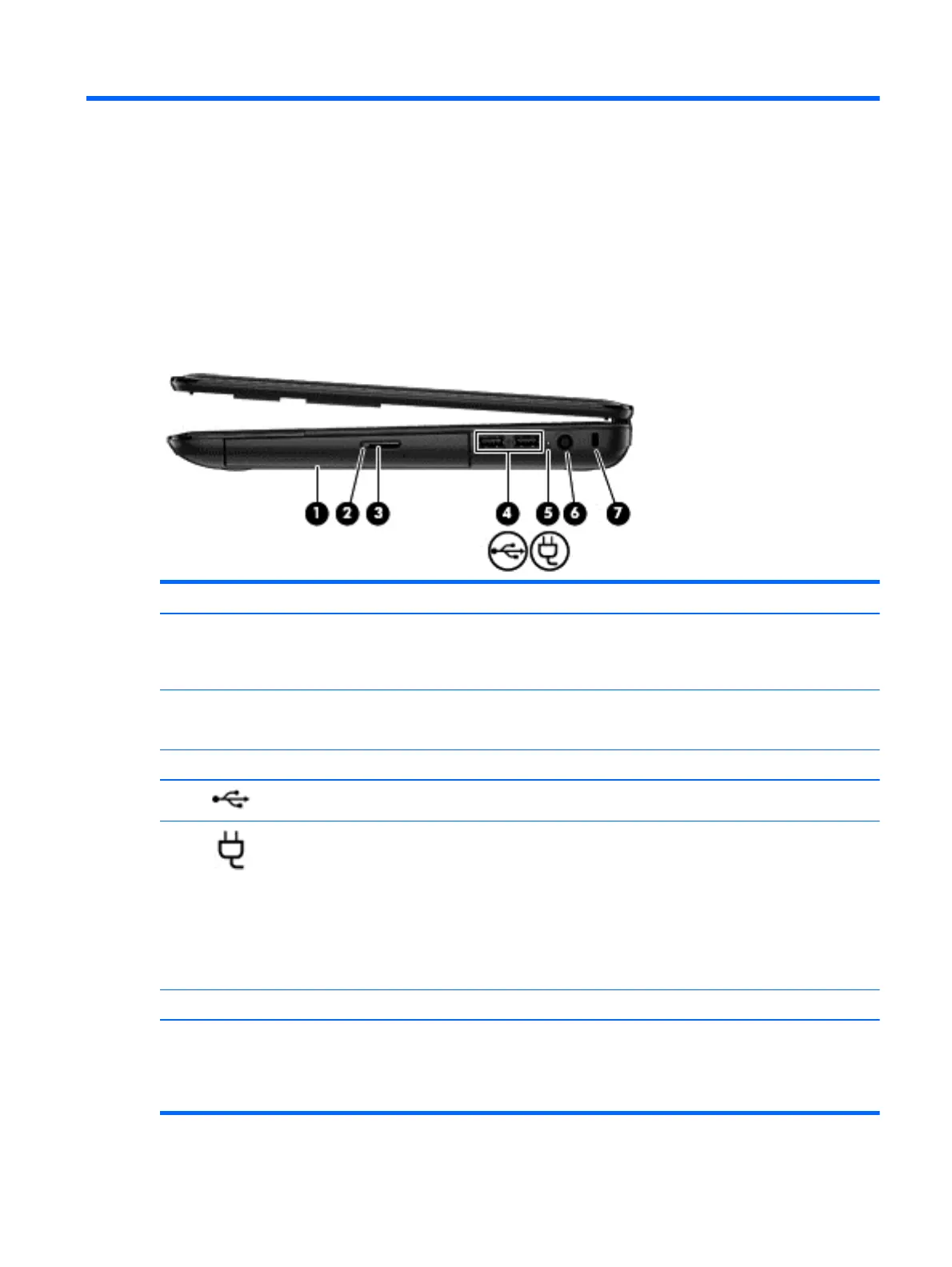

Right side
Component Description
(1) Optical drive Reads an optical disc.
NOTE: On select models, the optical drive also writes to an
optical disc.
(2) Optical drive light
●
Green: The optical drive is being accessed.
●
Off: The optical drive is idle.
(3) Optical drive eject button Releases the disc tray.
(4)
USB 2.0 ports (2) Connect optional USB devices.
(5) AC adapter light
●
White: The AC adapter is connected and the battery is
charged.
●
Amber: The AC adapter is connected and the battery is
charging.
●
Blinking amber: The battery is low or there is a battery
error.
●
Off: The computer is using DC power.
(6) Power connector Connects an AC adapter.
(7) Security cable slot Attaches an optional security cable to the computer.
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or
stolen.
ENWW Right side 5
