8

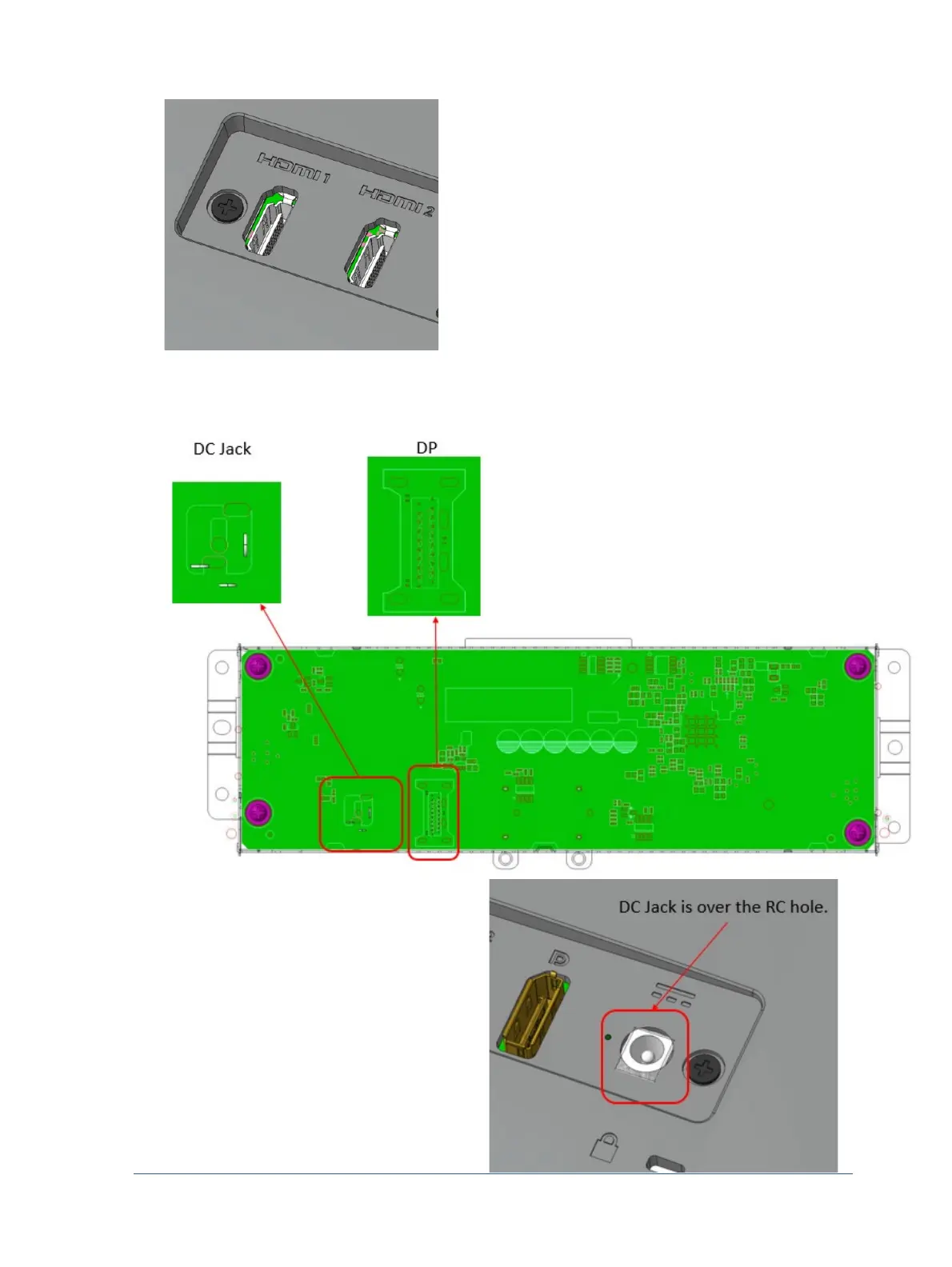

DisplayPort &DC power: If use the DisplayPort connector (A118340-ND) or the DC power connector (732-
5935-ND), the PCB layout need to be modify. The pin distance is different compares to original connector,
and it cannot fit PCB toaling hole.
The DisplayPort will be lower height than RC
surface, and the DC power is over the RC hole,
need to modify the ID.
