HP 27f 4k - Illustrated Parts Catalog

6
3 Illustrated parts catalog

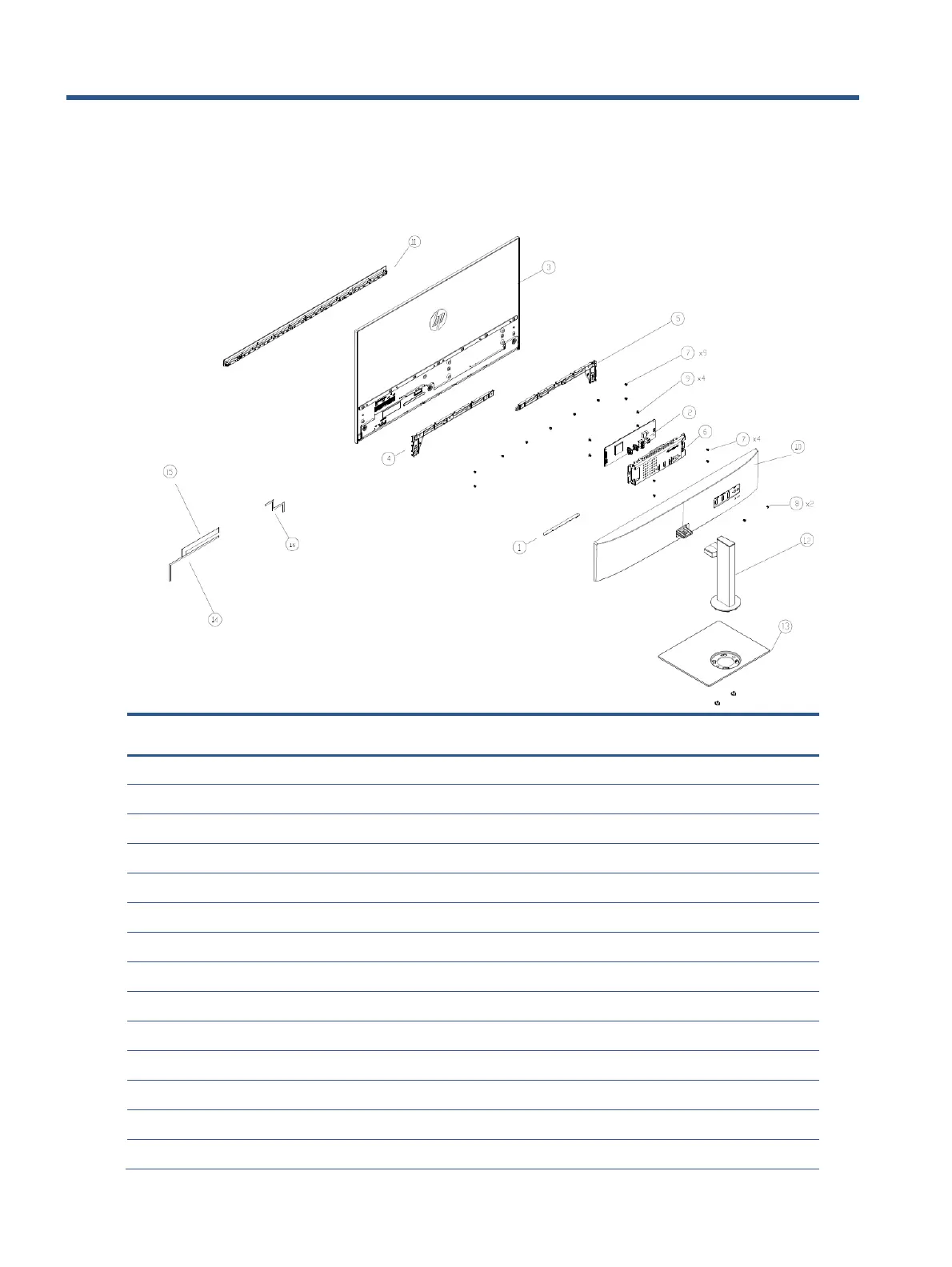

To identify the monitor major components, use this illustration and table.
Item Description Qty
1
DISPLAY BD ASS'Y HP Encore II 27f 4k
1
2
MAIN BD ASS'Y HP 27f 4k (LM270WR3-RSAL1)
1
3
LM270WF7-RSAL1,Encore II HP Black
1
4
REAR SUPPORT-R(ABS 94-HB/J13417B5)(HP 27f 4k)
1
5
REAR SUPPORT-L(ABS 94-HB/J13417B5)(HP 27f 4k)
1
6
SHIELDING (SECC 0.5T)(HP 27f 4k 1DP 2H)
1
7
MAC. SCREW-MI M3.0*4.0L, BLK-Ni
13
8
MAC. SCREW-MRF M3.0*6.0L, BLK-Ni
2
9
MAC. SCREW-MI M3.0*6.0L, BLK-ZNNI(HEAD DIAMETER 7.0)
4
10
REAR COVER(ABS 94-HB/Jack Black) (6009-0337)(HP 27f 4k)
1
11
FRONT DECO(ABS 94-HB/SP-1430)(HP 27f 4k)ASS'Y
1
12
NECK(AL/SP-1430)(ENCORE2)ASS'Y CX
1
13
BASE(AL/SP-1430)(ENCORE2-25F)ASS'Y CX
1
14
WH FFC 8P(0.5mm) 580mm(1FOLD+PRO)60V G/F (A5+A5) HF
1
