EL-MF877-00 Page 2
Template Revision B
PSG instructions for this template are available at EL-MF877-01
Components, parts and materials containing
radioactive substances
List the type and size of the tools that would typically be used to disassemble the product to a point where components
and materials requiring selective treatment can be removed.
Tool Size (if
applicable)
Description #1 Crisscross Screw Driver
Description #2 Hexagon Screw Driver
Description #3 Electric Iron
3.0 Product Disassembly Process
3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:
1. Remove access panel (Step1)
2. Disconnect ODD/ HDD power cable and ODD/ HDD SATA cable from ODD (Step2~Step3)
3. Remove ODD/ HDD from chassis (Step4~Step7)
4. Remove all cables and heat sink from MB (Step8~Step11)
5. Remove the Memory/ CPU/ Battery from MB (Step12~Step14)
6. Remove front panel from chassis (Step15)
7. Remove MB from chassis (Step16)
8. Remove system fan (Step17)
9. PSU from chassis (Step17~Step19)
10. Separate PSU and remove the Electrolytic Capacitors (Step 20~Step23)
3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items
contained in the product that require selective treatment (with descriptions and arrows identifying locations).

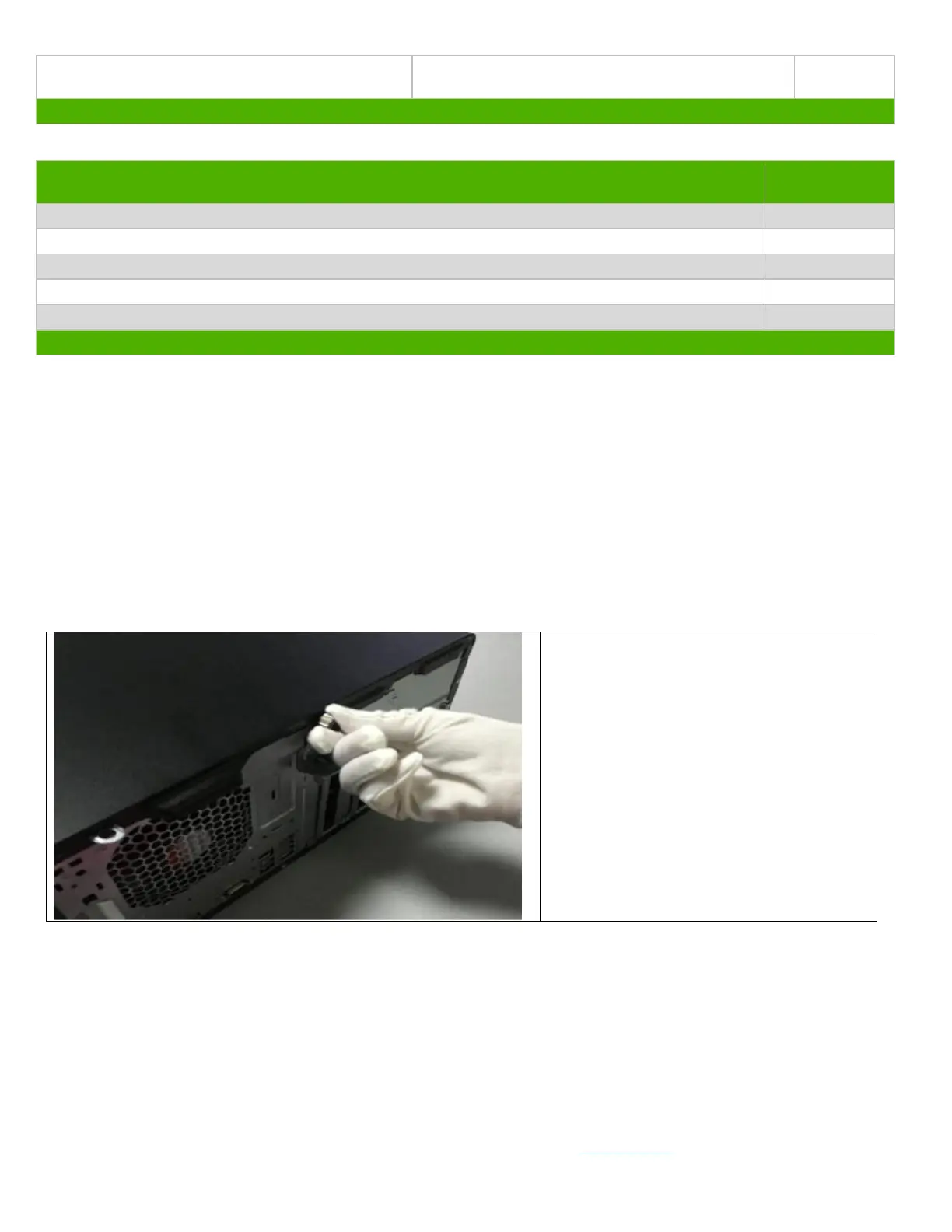

Step1 Loose thumb screw and remove
access panel.
To Next Page
