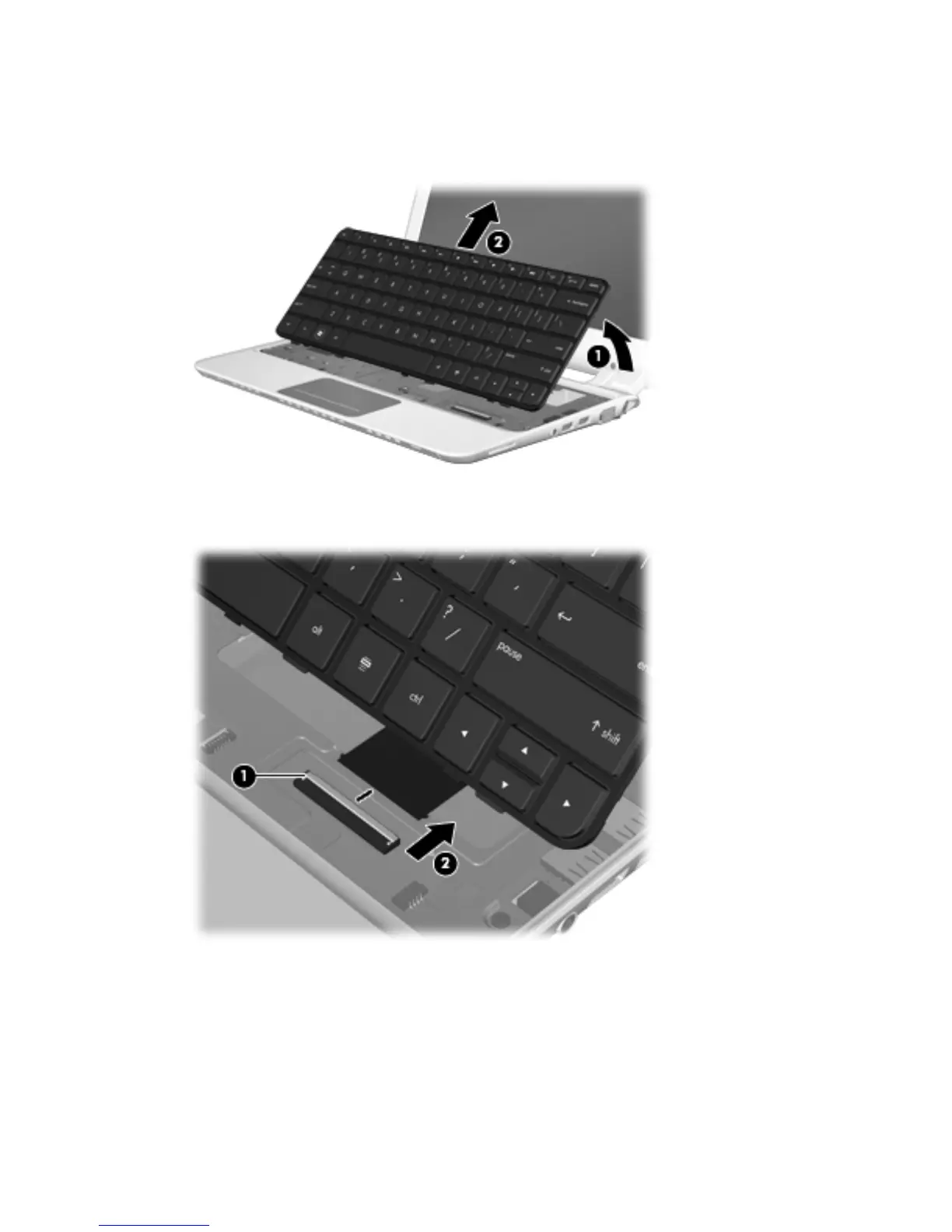

5. Use a flat-bladed screwdriver to pry the rear edge of the keyboard (1) loose from the three
retaining tabs.
6. Lift the keyboard (2) and turn it upside down, resting it on the top cover.
7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and
then disconnect the keyboard cable (2) from the system board.
8. Remove the keyboard.
Reverse this procedure to install the keyboard.
44 Chapter 4 Removal and replacement procedures ENWW
