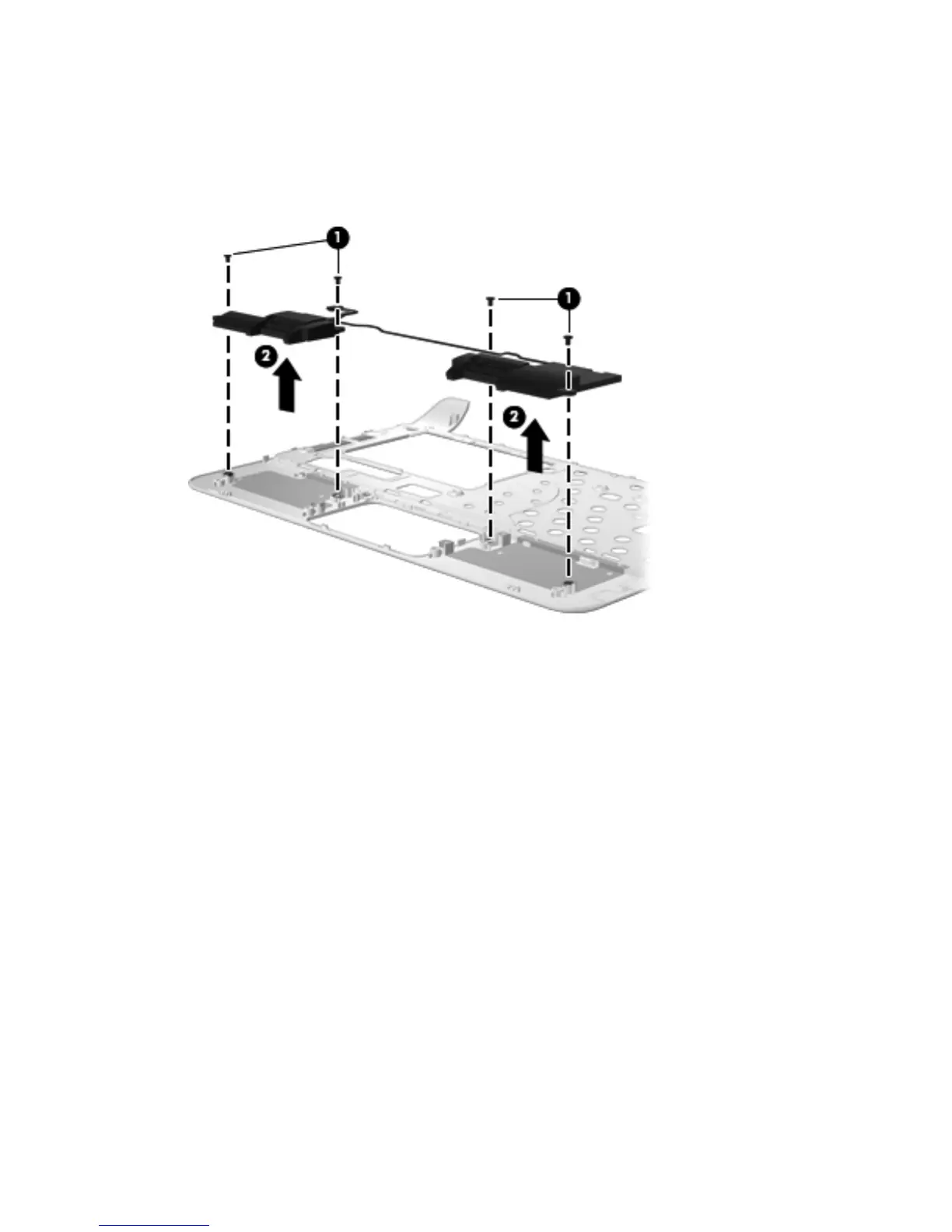

To remove the speaker assembly, follow these steps:
1. Position the top cover upside down with the front toward you.
2. Remove the 2 screws that secure the speaker assembly to the top cover (1).
3. Lift up and remove the speaker assembly(2).
Reverse this procedure to install the speaker assembly.
50 Chapter 4 Removal and replacement procedures ENWW
