10.

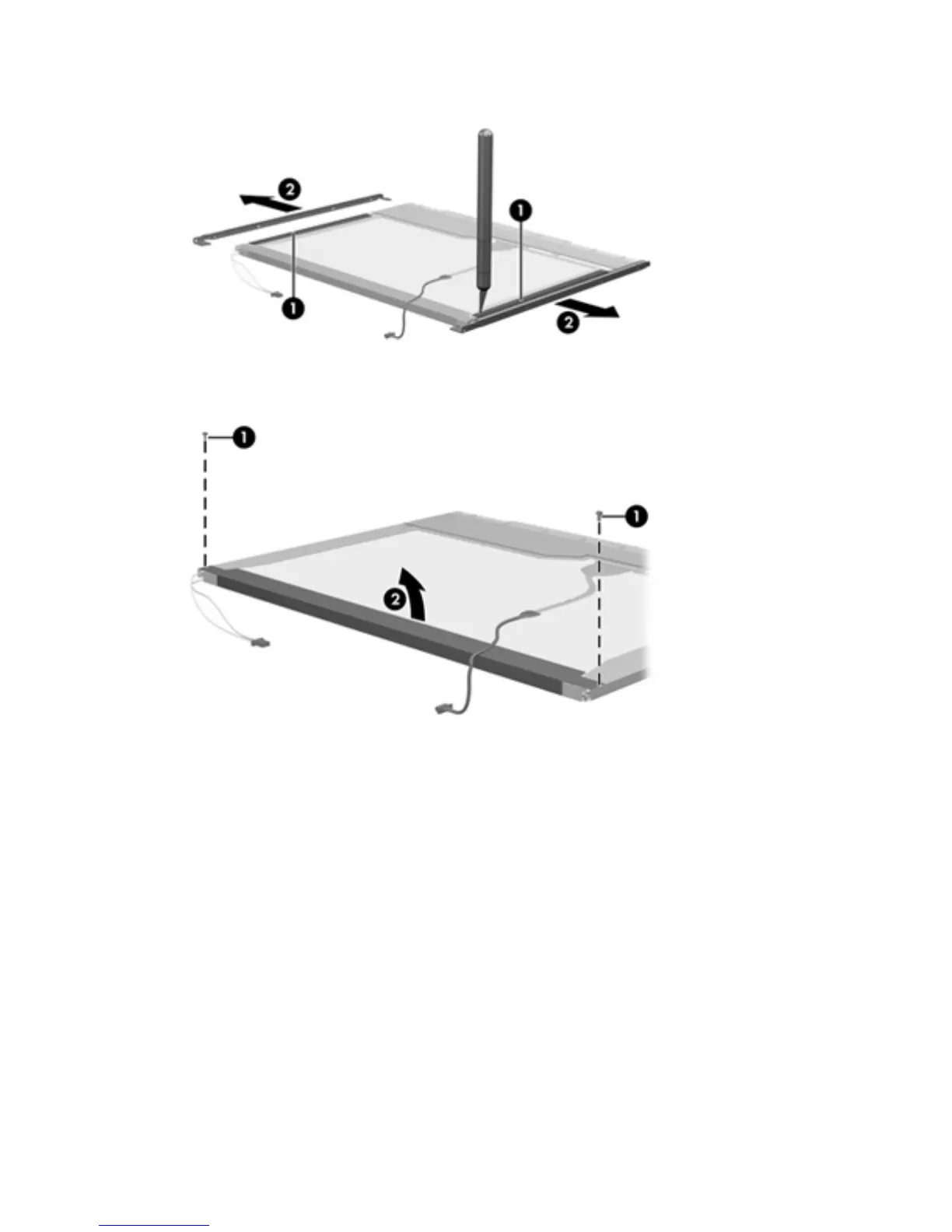

Remove the display panel fram
e
(2)
from the display panel.
11.
Remove the screws
(1)
that secure t
he backlight
cover to the display panel.
12.
Lift the top edge of the backlight cover
(2)
and swing it outward.
13.
Remove the backlight cover.
14.
Turn the display panel right-side up
.
90
Chapter 10 Re
cycling
ENWW
97
99
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
13
Top Components
13
Clickpad Touchpad
13
Lights
14
Buttons
15
Keys
16
Front Components
17
Right-Side Components
17
Left-Side Components
18
Display Components
19
Bottom Components
20
Wireless Antennas
21
Additional Hardware Components
22
3 Illustrated Parts Catalog
23
Service Tag
23
Computer Major Components
24
Display Assembly Subcomponents
27
Mass Storage Devices
28
Miscellaneous Parts
29
Sequential Part Number Listing
30
4 Removal and Replacement Procedures
33
Preliminary Replacement Requirements
33
Tools Required
33
Service Considerations
33
Cables and Connectors
33
Plastic Parts
33
Drive Handling
34
Grounding Guidelines
35
Electrostatic Discharge Damage
35
Packaging and Transporting Guidelines
36
Workstation Guidelines
36
Equipment Guidelines
37
Component Replacement Procedures
38
Service Tag
38
Computer Feet
39
Battery
40
SIM Card
41
Hard Drive
41
WWAN Module
45
WLAN Module
47
Memory Modules
49
Keyboard
51
Top Cover
53
Power Button Board
54
Clickpad Touchpad Button Board
55
Speaker Assembly
57
Display Assembly
59
System Board
63
RTC Battery
65
Heat Sink Assembly
66
Power Connector
68
RJ-45 Connector Cover
69
RJ-45 Connector
70
Fan
71
5 Computer Setup
73
Computer Setup in Windows 7
73
Starting Setup Utility
73
Using Setup Utility
73
Changing the Language of Setup Utility
73
Displaying System Information
74
Navigating and Selecting in Setup Utility
74
Restoring Default Settings in Setup Utility
74
Exiting Setup Utility
75
Setup Utility Menus
75
Main Menu
75
Security Menu
75
System Configuration Menu
75
Diagnostics Menu
76
6 Specifications
77
Computer Specifications
77
CM (11.6-In) (1366 X 768) HD Brightview LED Display Specifications
78
Hard Drive Specifications
79
7 Backup and Recovery
81
Restore
82
Creating Restore Media
82
Performing a System Restore
83
Restoring Using the Dedicated Recovery Partition (Select Models Only)
83
Restoring Using the Restore Media
84
Changing the Computer Boot Order
85
Backing up and Recovering Your Information
85
Using Windows Backup and Restore
86
Using Windows System Restore Points
87
Create a System Restore Point
87
Restore to a Previous Date and Time
87
When to Create Restore Points
87
8 Connector Pin Assignments
89
Audio-Out (Headphone)/Audio-In (Microphone) Jack
89
External Monitor
90
Network)
91
Universal Serial Bus
92
9 Power Cord Set Requirements
93
Requirements for All Countries and Regions
93
Requirements for Specific Countries and Regions
94
10 Recycling
95
Battery
95
Display
95
