Model 3300A Section VII
INDEX DESCRIPTION QUANTITY PART NO.
NO.
1 ASSEMBLY: FRAME 5 x 11 F.M. 2 5060-0731
2 PANEL: FRONT 1 03300-00201
3 PANEL: REAR 1 03300-00203*
4 COVER: REAR SIDE 2 5000-0732
5 COVER: FRONT SIDE 2 5000-0733
6 COVER: TOP ASSEMBLY 1 5060-0739
7 COVER: BOTTOM ASSEMBLY 1 5060-0751
8 HANDLE: SIDE ASSEMBLY 2 5060-0222
9 RETAINER: HANDLE ASSEMBLY 2 5060-0766
10 ASSEMBLY: FOOT 5 5060-0767
11 STAND: TILT 1 1490-0030
12 PLATE: FLUTED AL 2 5000-0051
* See backdating information in Appendix C.

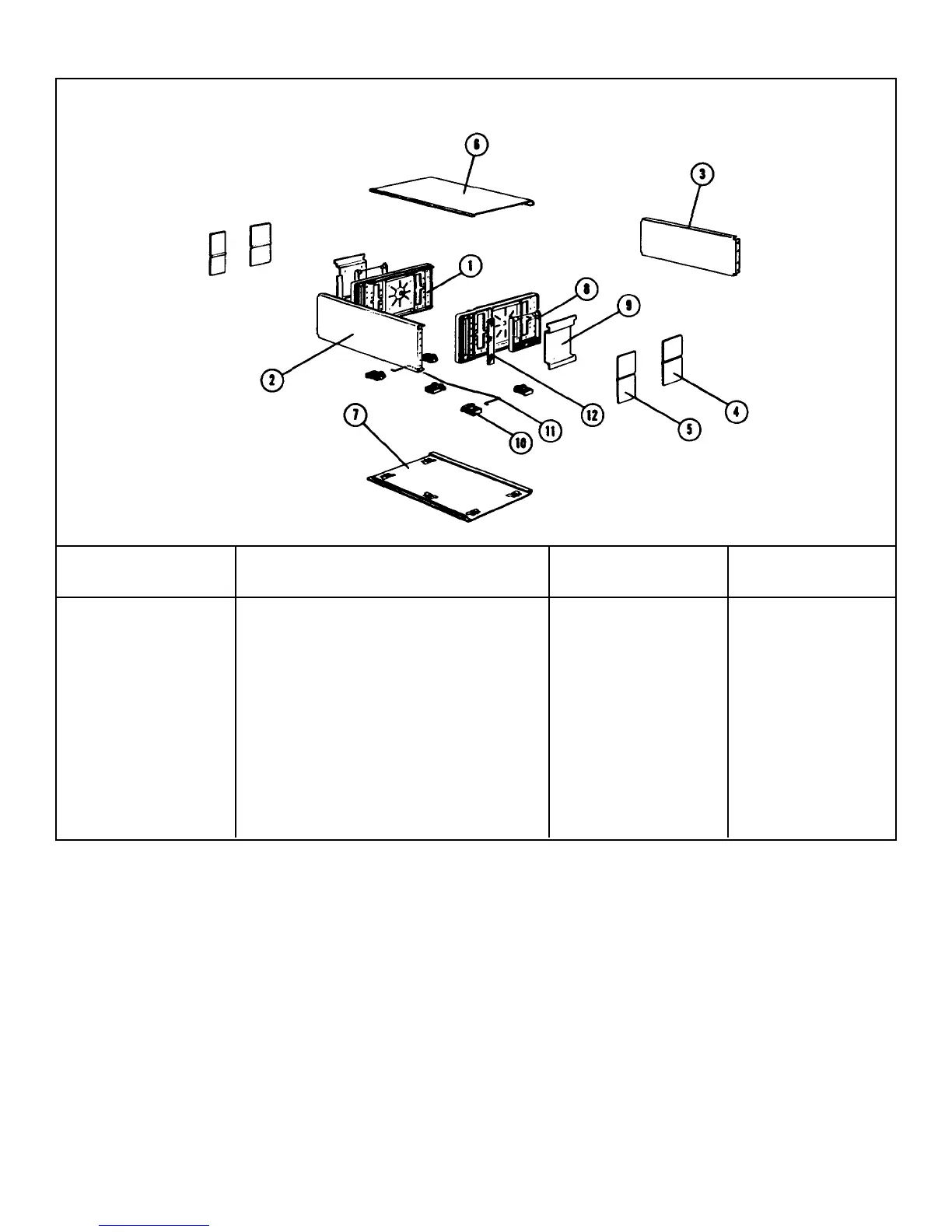

Figure 7-1. Modular Cabinet Parts.
