Installation
Model 3314A

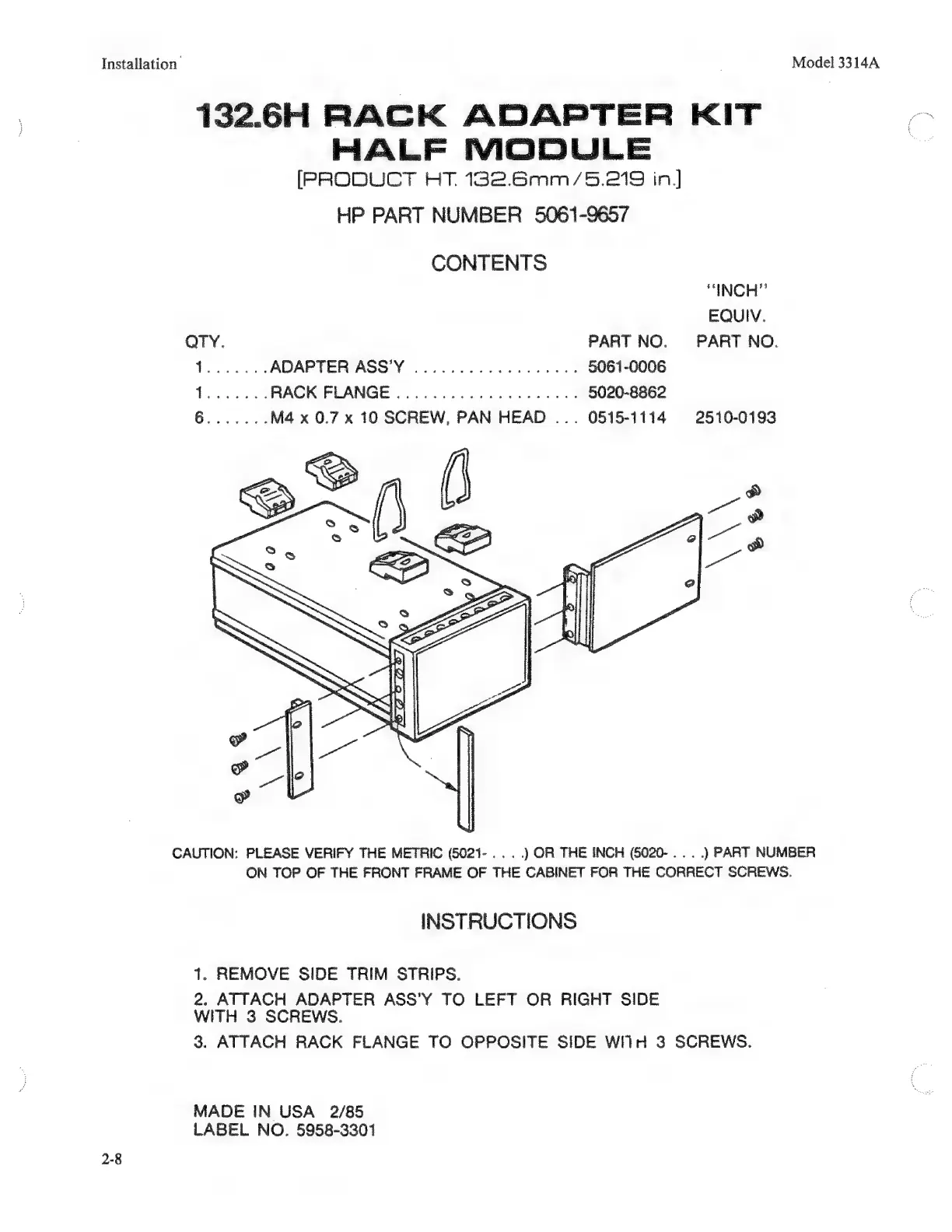

132.6H RACK ADAPTER KIT
HALF MODULE
[PRODUCT HT. 132.6mm /5.218 іп.
HP PART NUMBER 5061-9657
CONTENTS
“INCH”
EQUIV.
QTY. PART NO. PART NO.
ЕРИ ADAPTER ASS'Y .................. 5061-0006
| RM RACK FLANGE .................... 5020-8862
ЕИ М4 x 0.7 x 10 SCREW, PAN HEAD ... 0515-1114 2510-0193
CAUTION: PLEASE VERIFY THE METRIC (5021- . . . .) OR THE INCH (5020- . .. ) PART NUMBER
ON TOP OF THE FRONT FRAME OF THE CABINET FOR THE CORRECT SCREWS.
INSTRUCTIONS
1. REMOVE SIDE TRIM STRIPS.
2. ATTACH ADAPTER ASS'Y TO LEFT OR RIGHT SIDE
WITH 3 SCREWS.
3. ATTACH RACK FLANGE TO OPPOSITE SIDE МН 3 SCREWS.
MADE IN USA 2/85
LABEL NO. 5958-3301
2-8
