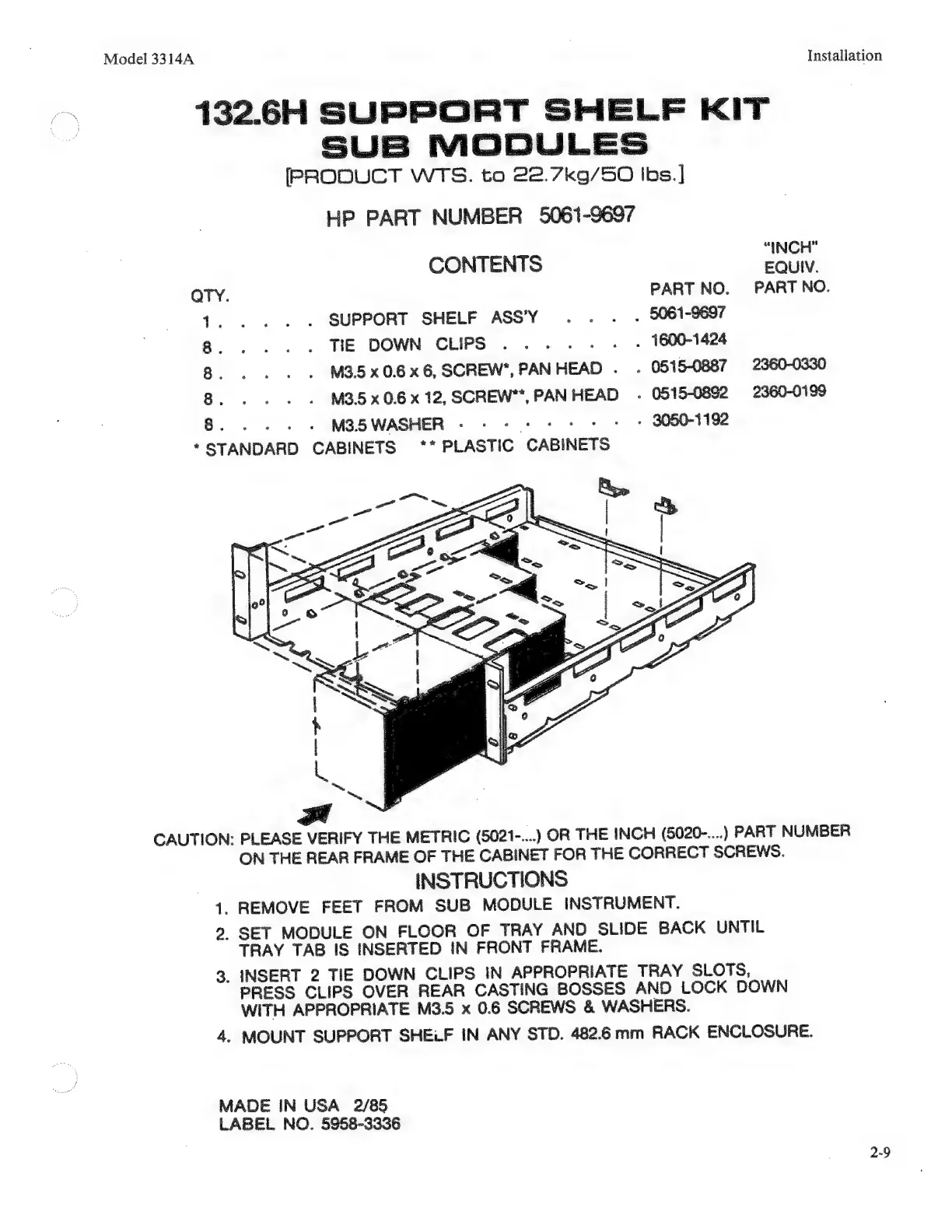

Model
3314A
Installation
132.6H
SUPPORT
SHELF
KIT
SUB
MODULES
[PRODUCT
WTS.
to
22.7ка/БО
Ibs.
]
HP
PART
NUMBER
5061-9697
CONTENTS
QTY.
PART
NO.
SUPPORT
SHELF
ASSY
.
.
.
.
5061-9697
TIE
DOWN
CLIPS
.
.
.
.
.
.
.
1600-1424
M3.5
x
0.6
х
6,
SCREW',
PAN
HEAD
. .
0515-0887
M3.5
x
0.6
x
12,
SCREW'**,
PAN
HEAD
.
0515-0892
.
9050-1192
2...
.
M35
WASHER
-
EERE
TANDARD
CABINETS
**
PLASTIC
CABINETS
од
о
о
со
б
~
"INCH"
EQUIV.
PART
NO.
2360-0330
2360-0199
CAUTION:
PLEASE
VERIFY
THE
METRIC
(5021-...)
OR
THE
INCH
(5020-....)
PART
NUMBER
ON
THE
REAR
FRAME
OF
THE
CABINET
FOR
THE
CORRECT
SCREWS.
INSTRUCTIONS
1.
REMOVE
FEET
FROM
SUB
MODULE
INSTRUMENT.
2.
SET
MODULE
ON
FLOOR
OF
TRAY
AND
SLIDE
BACK
UNTIL
TRAY
TAB
IS
INSERTED
IN
FRONT
FRAME.
3.
INSERT
2
TIE
DOWN
CLIPS
IN
APPROPRIATE
TRAY
SLOTS,
PRESS
CLIPS
OVER
REAR
CASTING
BOSSES
AND
LOCK
DOWN
WITH
APPROPRIATE
M3.5
x
0.6
SCREWS
&
WASHERS.
4.
MOUNT
SUPPORT
SHELF
IN
ANY
STD.
482.6
mm
RACK
ENCLOSURE.
MADE
IN
USA
2/85
LABEL
NO.
5958-3336
2-9
