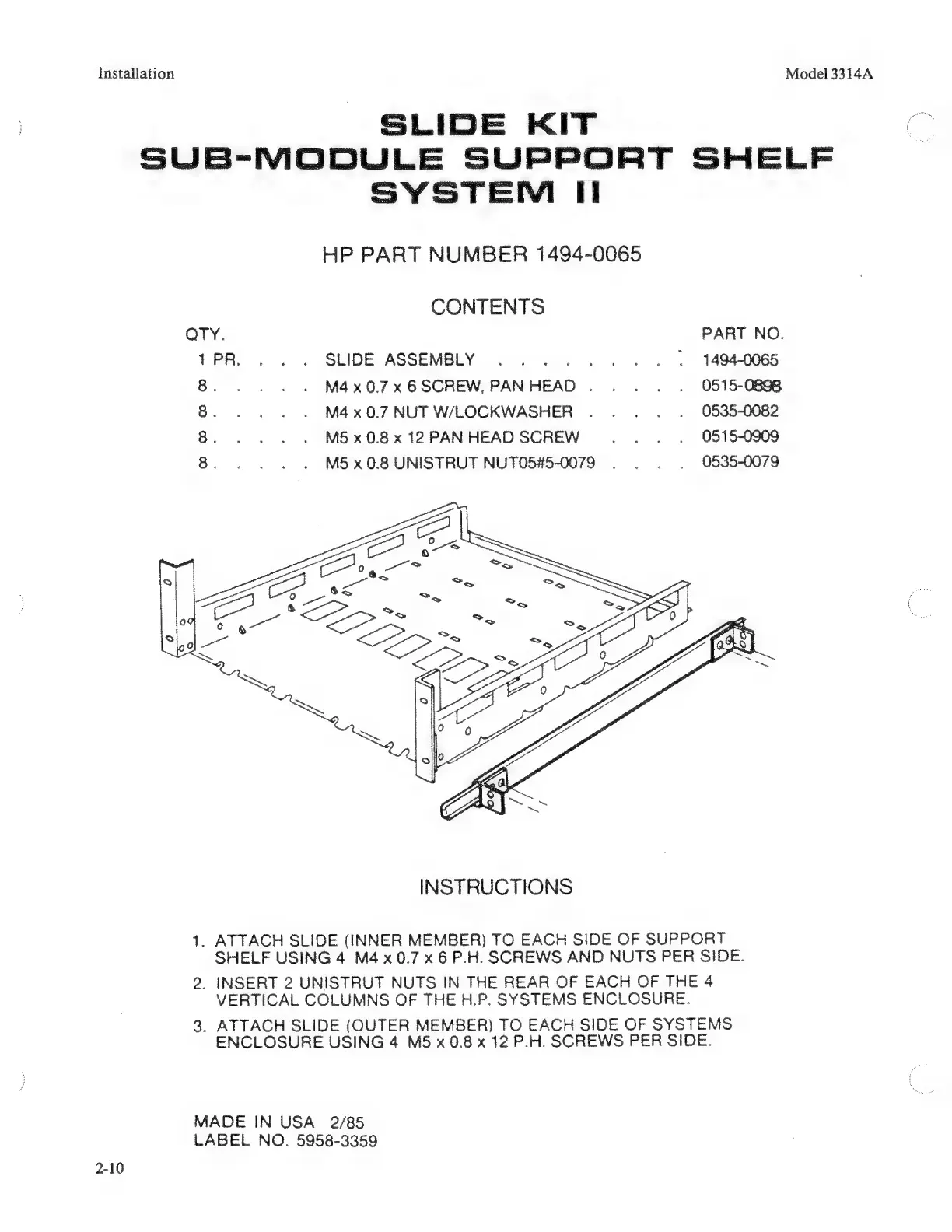

HP 3314A Manual

Installation Model 3314A
SLIDE KIT
SUB-MODULE SUPPORT SHELF
SYSTEM H
HP PART NUMBER 1494-0065
CONTENTS
ОТҮ; PART МО.
1PR. . . . SLIDE ASSEMBLY . . . . . . . . . 1494-0065
8. . . . . Maàx07x6SCREW, PANHEAD . . . . . 0515-0898
8. МА x 0.7 NUT W/LOCKWASHER . . . . . 0535-0082
8. M5 x 0.8 x 12 PAN HEAD SCREW . . . . 0515-0909
8. М5 x 0.8 UNISTRUT NUTO5#5-0079 . . . . 0535-0079
INSTRUCTIONS
1. ATTACH SLIDE (INNER MEMBER) TO EACH SIDE OF SUPPORT
SHELF
USING
4
M4
x
0.7
x
6
P.H.
SCREWS
AND
NUTS
PER
SIDE.
2. INSERT 2 UNISTRUT NUTS IN THE REAR OF EACH OF THE 4
VERTICAL COLUMNS OF THE H.P. SYSTEMS ENCLOSURE.
3.
ATTACH
SLIDE
(OUTER
MEMBER)
TO
EACH
SIDE
OF
SYSTEMS
ENCLOSURE
USING
4
M5
x
0.8
x
12
P.H.
SCREWS
PER
SIDE.
MADE IN USA 2/85
LABEL NO. 5958-3359
2-10
