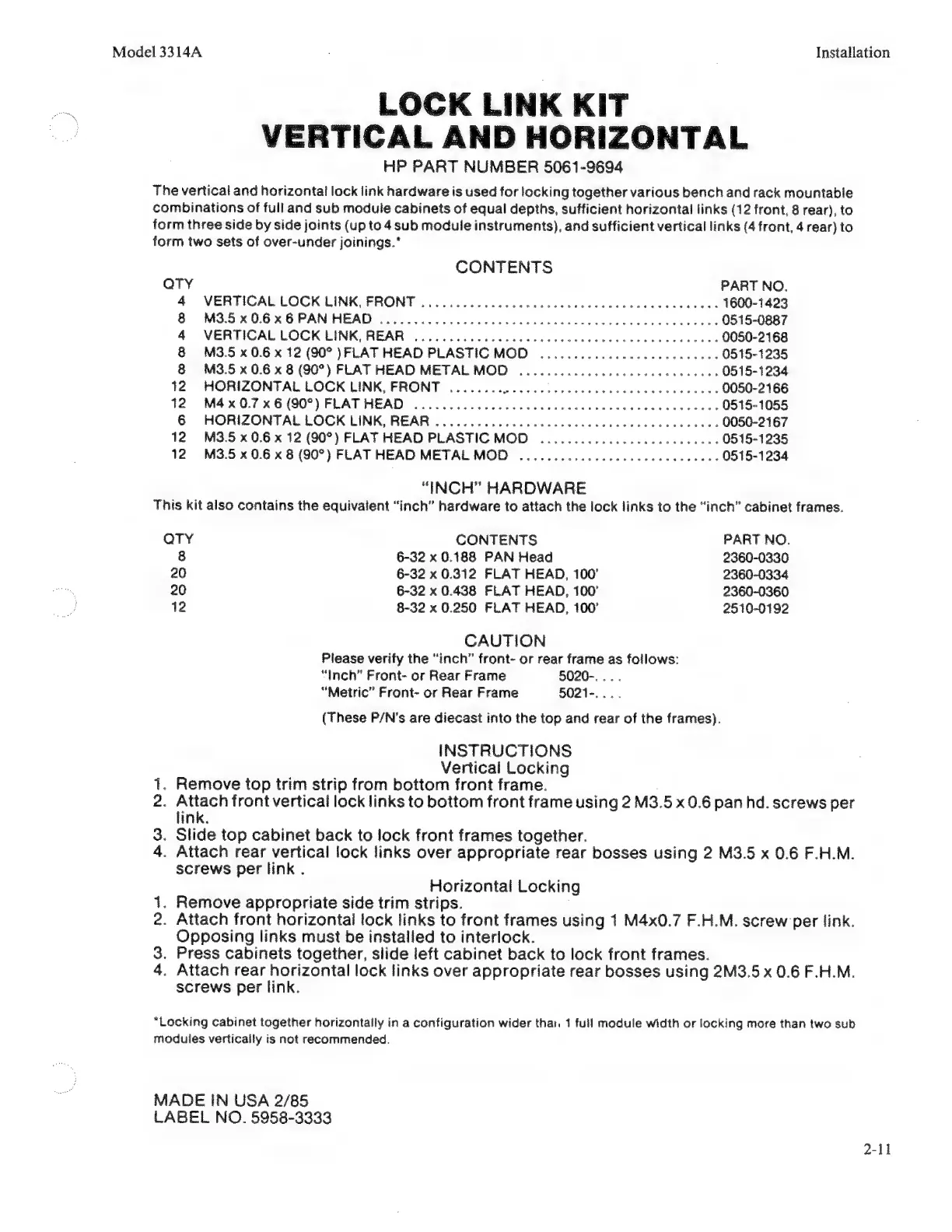

Model
3314A
|
Installation
LOCK
LINK
KIT
VERTICAL
AND
HORIZONTAL
HP
PART
NUMBER
5061-9694
The
vertical
and
horizontal
lock
link
hardware
is
used
for
locking
together
various
bench
and
rack
mountable
combinations
of
full
and
sub
module
cabinets
of
equal
depths,
sufficient
horizontal
links
(12
front,
8
rear),
to
form
three
side
by
side
joints
(up
to
4
sub
module
instruments),
and
sufficient
vertical
links
(4
front,
4
rear)
to
form
two
sets
of
over-under
joinings.*
CONTENTS
QTY
PART
NO.
4
VERTICAL
LOCK
LINK:
FRONT
2.5.
ades
nceeexe
yr
teer
ne
a
ea
n
Rs
1600-1423
8:
MOX
08
x
D
PANHEAD
S
u
l
ze
ok
te
OU
EE
RR
wd
XLI
0515-0887
4.
VERTICAL
LOCK
LINK,
REAR
оса
а
ни
а
на
и
ава
књ
0050-2168
8
МЗ5х0.6х
12
(90?
)FLAT
HEAD
PLASTIC
MOD
..........................
0515-1235
8
M3.5
x
0.6
x
8
(90?)
FLAT
HEAD
METAL
MOD
.............................
0515-1234
12
HORIZONTAL
LOCK
LINK,
FRONT
........
БКТ
Т
ТТТ
ТТТ
0050-2166
12
М4х07х6(90°)
FLAT
HEAD
........................................-...
0515-1055
6
‘HORIZONTAL
LOOK
LINK,
REAR
.........................................
0050-2167
12
M3.5
x
0.6
x
12
(90°)
FLAT
HEAD
PLASTIC
MOD
..........................
0515-1235
12
M3.5
x
0.6
x
8
(90°)
FLAT
HEAD
METAL
MOD
.............................
0515-1234
"INCH"
HARDWARE
This
kit
also
contains
the
equivalent
"inch"
hardware
to
attach
the
lock
links
to
the
"inch"
cabinet
frames.
AC
=
AC
mnm
QTY
CONTENTS
PART
NO.
8
6-32
x
0.188
PAN
Head
2360-0330
20
6-32
x
0.312
FLAT
HEAD,
100'
2360-0334
20
6-32
x
0.438
FLAT
HEAD,
100'
2360-0360
12
8-32
x
0.250
FLAT
HEAD,
100'
2510-0192
CAUTION
Please
verify
the
"inch"
front-
or
rear
frame
as
follows:
"Inch"
Front-
or
Rear
Frame
5020-....
"Metric"
Front-
or
Rear
Frame
5021-....
(These
P/N's
are
diecast
into
the
top
and
rear
of
the
frames).
INSTRUCTIONS
Vertical
Locking
.
Remove
top
trim
strip
from
bottom
front
frame.
.
Attach
front
vertical
lock
links
to
bottom
front
frame
using
2
M3.
5
x
0.6
pan
hd.
screws
per
link.
.
Slide
top
cabinet
back
to
lock
front
frames
together.
.
Attach
rear
vertical
lock
links
over
appropriate
rear
bosses
using
2
M3.5
x
0.6
F.H.M.
Screws
per
link.
Horizontal
Locking
.
Remove
appropriate
side trim
strips.
.
Attach
front
horizontal
lock
links
to
front
frames
using
1
M4x0.7
F.H.M.
screw
per
link.
Opposing
links
must
be
installed
to
interlock.
.
Press
cabinets
together,
slide
left
cabinet
back
to
lock
front
frames.
.
Attach
rear
horizontal
lock
links
over
appropriate
rear
bosses
using
2M3.5
x
0.6
F.H.M.
screws
per
link.
"Locking
cabinet
together
horizontally
in
a
configuration
wider
than
1
full
module
width
or
locking
more
than
two
sub
modules
verticaily
is
not
recommended.
MADE
IN
USA
2/85
LABEL
NO.
5958-3333
