Installation
2-12

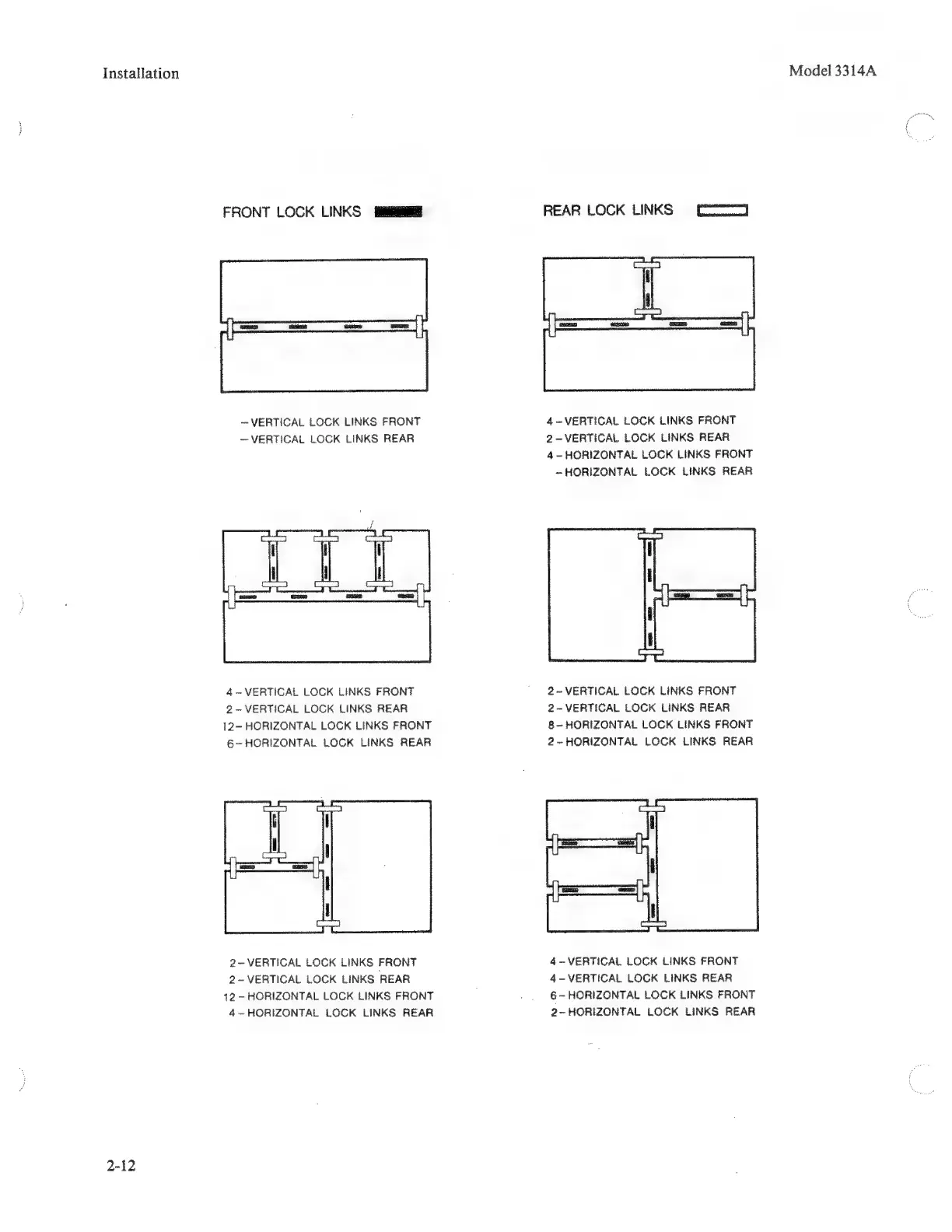

FRONT LOCK LINKS НІН
— VERTICAL LOCK LINKS FRONT
— VERTICAL LOCK LINKS REAR
Model 3314A
REAR LOCK LINKS fl
4 - VERTICAL LOCK LINKS FRONT
2 - VERTICAL LOCK LINKS REAR
4 – HORIZONTAL LOCK LINKS FRONT
~ HORIZONTAL LOCK LINKS REAR
4 – VERTICAL LOCK LINKS FRONT
2-VERTICAL LOCK LINKS REAR
12- HORIZONTAL LOCK LINKS FRONT
6- HORIZONTAL LOCK LINKS REAR
2- VERTICAL LOCK LINKS FRONT
2 – VERTICAL LOCK LINKS REAR
12 - HORIZONTAL LOCK LINKS FRONT
4 – HORIZONTAL LOCK LINKS REAR
2- VERTICAL LOCK LINKS FRONT
2- VERTICAL LOCK LINKS REAR
8- HORIZONTAL LOCK LINKS FRONT
2~-HORIZONTAL LOCK LINKS REAR
4-VERTICAL LOCK LINKS FRONT
4 - VERTICAL LOCK LINKS REAR
6 - HORIZONTAL LOCK LINKS FRONT
2-HORIZONTAL LOCK LINKS REAR
