Model 3314A
Operation
THE 3314A REAR PANEL
X3 output (only instruments with Option 001 have
this output) is a high voltage, low impedance out-
put whose output voltage is 3 times the displayed
amplitude and offset when the Main Output is ter-
minated into 500, This output whose capable of
sourcing + 30mA peak current without clipping.
The upper frequency limit is 1MHz.
X Axis output produces a voltage ramp from -5V
to + 5V whose voltage is proportional to the sweep
frequency. This output is useful to drive the X Axis
of plotters and oscilloscopes.
Z Axis output produces voltage levels to blank
(>+5V)or
enhance
(«-5V)the
intensity
of
an
oscilloscope display during sweep (intensifies the
marker frequency and blanks the retrace) or ARB
(intensifies the current vector).
HP-IB is used to control the operating of the 3314A
from a remote controller. This connector uses
metric fasteners and is not compatible with older
cables using english threated fasteners. Metric
fasteners are available from -hp- to upgrade older
cables.

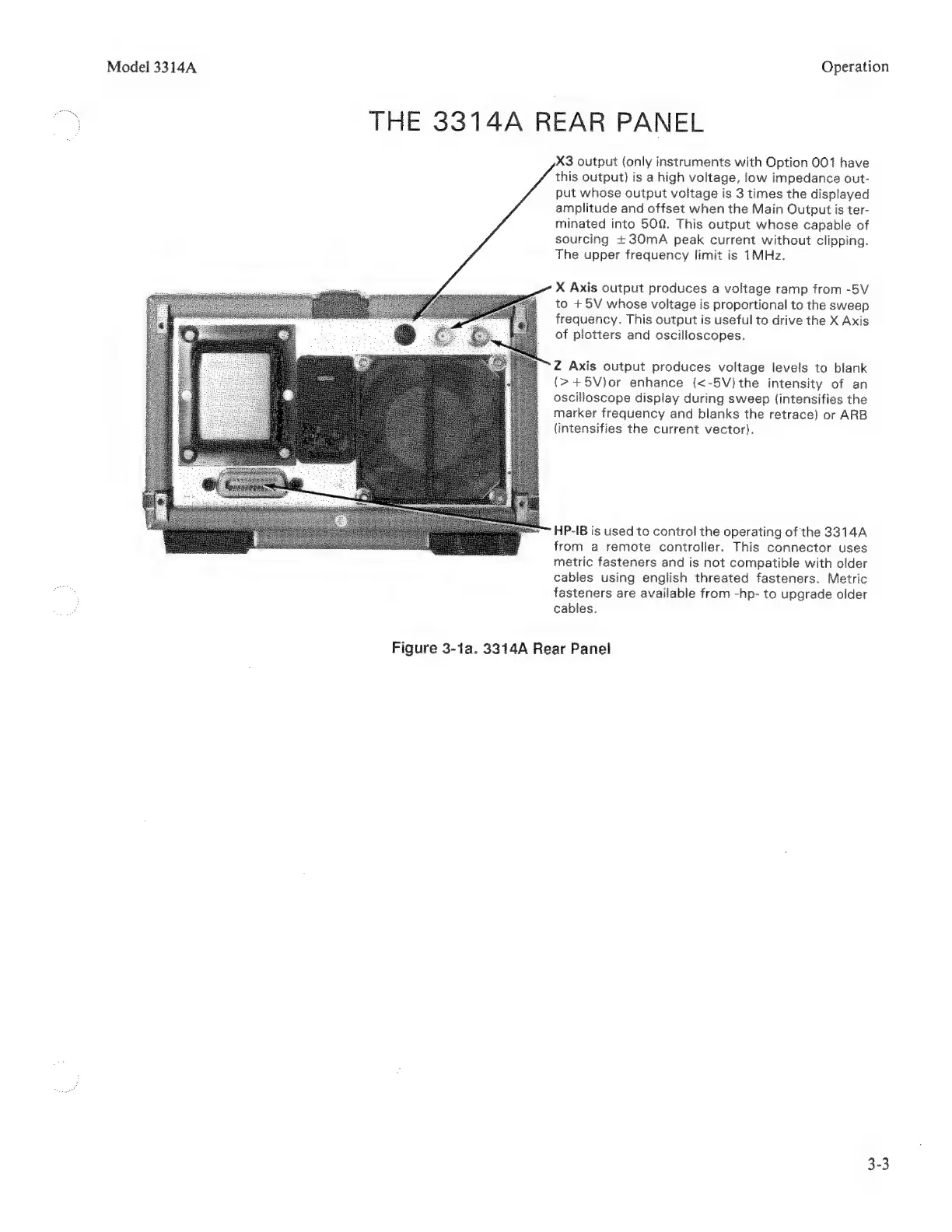

Figure 3-1a. 3314A Rear Panel
3-3
