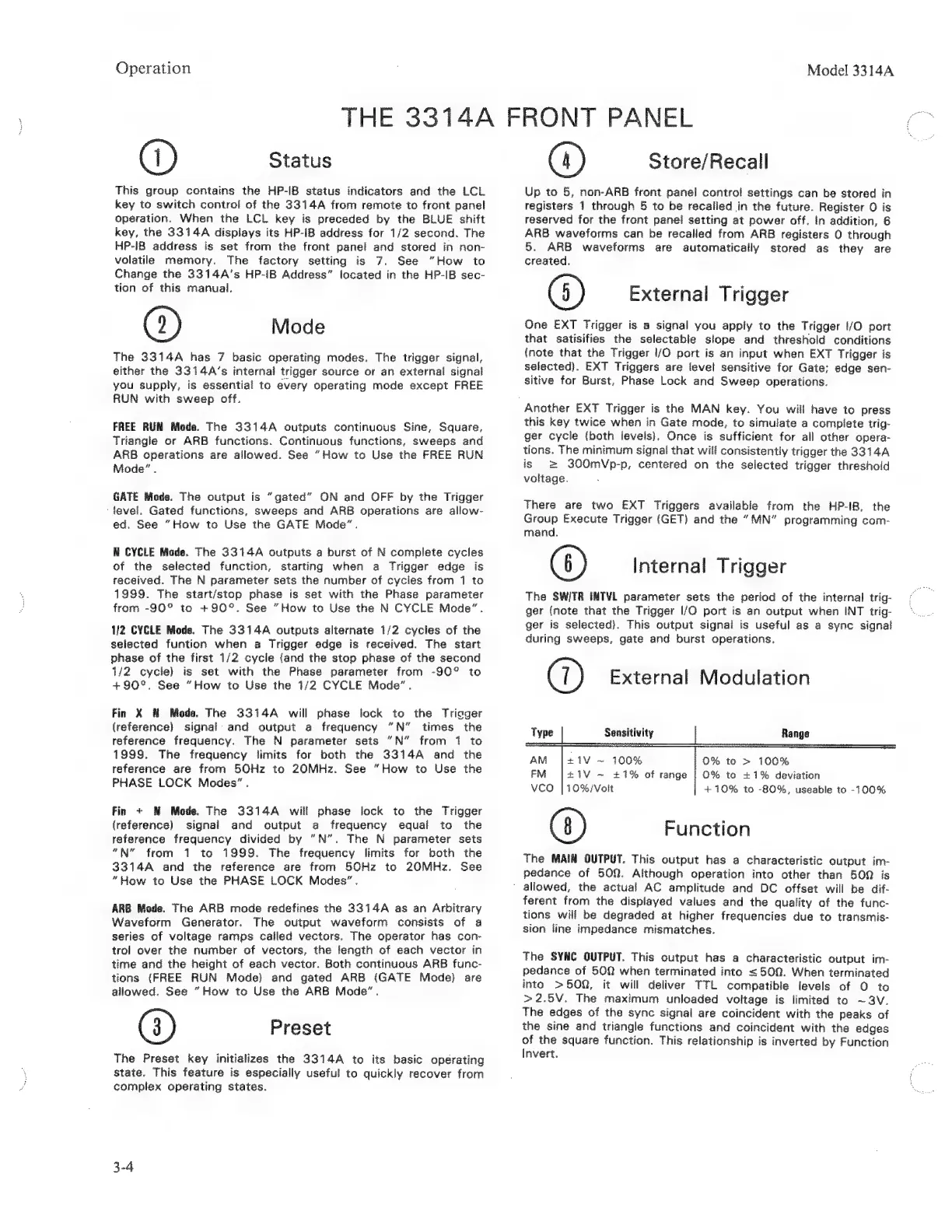

Operation
Model
3314A
THE
3314A
FRONT
PANEL
(1)
Status
This
group
contains
the
HP-IB
status
indicators
and
the
LCL
key
to
switch
control
of
the
3314A
from
remote
to
front
panel
operation.
When
the
LCL
key
is
preceded
by
the
BLUE
shift
key,
the
3314A
displays
its
HP-IB
address
for
1/2
second.
The
НР-ІВ
address
is
set
from
the
front
panel
and
stored
in
non-
volatile
memory.
The
factory
setting
is
7.
See
"How
to
Change
the
3314A's
HP-IB
Address"
located
in
the
HP-IB
sec-
tion
of
this
manual.
(2)
Mode
The
3314A
has
7
basic
operating
modes.
The
trigger
signal,
either
the
3314A’s
internal
trigger
source
or
an
external
signal
you
supply,
is
essential
to
every
operating
mode
except
FREE
RUN
with
sweep
off.
FREE
RUM
Mode.
Тһе
3314A
outputs
continuous
Sine,
Square,
Triangle
or
ARB
functions.
Continuous
functions,
sweeps
and
ARB
operations
are
allowed.
See
"How
to
Use
the
FREE
RUN
Mode".
GATE
Mode.
The
output
is
"gated"
ON
and
OFF
by
the
Trigger
‘level.
Gated
functions,
sweeps
and
ARB
operations
are
allow-
ed,
See
"How
to
Use
the
GATE
Mode”.
N
CYCLE
Mode.
The
3314A
outputs
a
burst
of
N
complete
cycles
of
the
selected
function,
starting
when
a
Trigger
edge
is
received.
The
N
parameter
sets
the
number
of
cycles
from
1
to
1999.
The
start/stop
phase
is
set
with
the
Phase
parameter
from
-90?
to
+90°.
See
"How
to
Use
the
N
CYCLE
Mode".
1/2
CYCLE
Mods.
The
3314A
outputs
alternate
1/2
cycles
of
the
selected
funtion
when
a
Trigger
edge
is
received.
The
start
phase
of
the
first
1/2
cycle
{and
the
stop
phase
of
the
second
1/2
cycle)
is
set
with
the
Phase
parameter
from
-90°
to
+90°.
See
"How
to
Use
the
1/2
CYCLE
Mode".
Fin
X
Н
Mode
The
3314A
will
phase
lock
to
the
Trigger
(reference)
signal
and
output
a
frequency
"N"
times
the
reference
frequency.
The
N
parameter
sets
"N"
from
1
to
1999.
The
frequency
limits
for
both
the
3314A
and
the
reference
are
from
5O0Hz
to
20MHz.
See
"How
to
Use
the
PHASE
LOCK
Modes".
Fin
+
N
Mode
The
3314A
will
phase
lock
to
the
Trigger
(reference)
signal
and
output
a
frequency
equal
to
the
reference
frequency
divided
by
"N".
The
N
parameter
sets
from
1
to
1999.
The
frequency
limits
for
both
the
3314A
and
the
reference
are
Кот
БОНх
to
20MHz.
See
"How
to
Use
the
PHASE
LOCK
Modes".
ARB
Mode.
The
ARB
mode
redefines
the
3314A
as
an
Arbitrary
Waveform
Generator.
The
output
waveform
consists
of
a
series
of
voltage
ramps
called
vectors.
The
operator
has
con-
trol
over
the
number
of
vectors,
the
length
of
each
vector
in
time
and
the
height
of
each
vector.
Both
continuous
ARB
func-
tions
(FREE
RUN
Mode)
and
gated
ARB
(GATE
Mode)
are
allowed.
See
"
How
to
Use
the
ARB
Mode".
©
Preset
The
Preset
key
initializes
the
3314A
to
its
basic
operating
state.
This
feature
is
especially
useful
to
quickly
recover
from
complex
operating
states.
Store/Recall
Up
to
5,
non-ARB
front
panel
control
settings
can
be
stored
in
registers
1
through
5
to
be
recalled
in
the
future.
Register
О
is
reserved
for
the
front
panel
setting
at
power
off.
іп
addition,
6
ARB
waveforms
can
be
recalled
from
ARB
registers
O
through
5.
ARB
waveforms
are
automatically
stored
as
they
are
created.
(5)
External
Trigger
One
EXT
Trigger
is
a
signal
you
apply
to
the
Trigger
УО
port
that
satisifies
the
selectable
slope
and
threshold
conditions
(note
that
the
Trigger
1/O
port
is
an
input
when
EXT
Trigger
is
selected).
EXT
Triggers
are
level
sensitive
for
Gate;
edge
sen-
sitive
for
Burst,
Phase
Lock
and
Sweep
operations.
Another
EXT
Trigger
is
the
MAN
key.
You
will
have
to
press
this
key
twice
when
in
Gate
mode,
to
simulate
a
complete
trig-
ger
cycle
(both
levels),
Once
is
sufficient
for
all
other
opera-
tions.
The
minimum
signal
that
will
consistently
trigger
the
3314A
is
>
300тУр-р,
centered
on
the
selected
trigger
threshold
voltage.
There
are
two
EXT
Triggers
available
from
the
HP-IB,
the
Group
Execute
Trigger
(GET)
and
the
"
MN"
programming
com-
mand.
(6)
Internal
Trigger
The
SW/TR
IMTVL
parameter
sets
the
period
of
the
internal
trig-
ger
{note
that
the
Trigger
I/O
port
is
an
output
when
INT
trig-
ger
is
selected).
This
output
signal
is
useful
as
a
sync
signal
during
sweeps,
gate
and
burst
operations.
(7)
External
Modulation
Type
Sensitivity
Range
£1V
~
100%
ЕЛМ
~
+1%
of
range
1O%/Volt
0%
to
>
100%
O96
to
+1%
deviation
+
1096
to
-80%,
useable
to
-100%
Function
The
MAIN
OUTPUT.
This
output
has
a
characteristic
output
im-
pedance
of
500.
Although
operation
into
other
than
БОО
is
`
allowed,
the
actual
AC
amplitude
and
DC
offset
will
be
dif-
ferent
from
the
displayed
values
and
the
quality
of
the
func-
tions
will
be
degraded
at
higher
frequencies
due
to
transmis-
sion
line
impedance
mismatches.
The
SYNC
OUTPUT.
This
output
has
a
characteristic
output
im-
pedance
of
500
when
terminated
into
<
БОО.
When
terminated
into
2
500,
it
will
deliver
TTL
compatible
levels
of
O
to
>2.5V.
The
maximum
unloaded
voitage
is
limited
to
—3V.
The
edges
of
the
sync
signal
are
coincident
with
the
peaks
of
the
sine
and
triangle
functions
and
coincident
with
the
edges
of
the
square
function.
This
relationship
is
inverted
by
Function
Invert.
