Model 3314A
Entry/Sweep
Most
of
the
keys
in
this
group
are
select
keys
for
variable
en-
tries,
The
top
row
contains
select
keys
for
the
more
universal
parameters.
Note
that
the
blue
shifted
definition
of
these
keys
presets
the
parameter.
The
second
row
contains
the
select
keys
for
the
3314A's
sweep
capabilities.
The
SW/TR
INTVL
key
is
the
select
key
for
the
sweep
interval
(SW
INTVL)
and
for
the
internal
trigger
interval
(TR
INTVE),
When
ARB
is
active,
the
sweep
functions
are
redefined
to
ARB
functions.
The
keys
are
renamed
by
the
labels
below
them.
(10) Range
RANGE
UP
or
DOWN
(t
or
1)
keys
multiply
or
divide
the
displayed
value
by
10
until
the
3314A’s
operating
limits
are
reached.
This
provides
an
extremely
fast
method
to
modify
the
displayed
parameter.
RANGE HOLD inhibits auto-ranging of Frequency (8 ranges),
Amplitude (4 ranges), and/or DC Offset (2 ranges) when these
parameters
are
changed
with
the
Modify
knob.
When
in
Fin
X
N and Fin - N, Frequency Range Hold also inhibits auto-
acquisition.
Operation
Modify
All variable parameters (selected by keys in the Entry Group)
are entered into the 3314A using the Modify knob or the Т or
| keys. These controis change the value of the displayed
operating parameter. The Modify knob has 2 basic operating
modes called "Cursor" and “Multi Speed”.
CURSOR (a digit is flashing). This mode is useful when making
small changes or changes of constant increments. The flashing
cursor digit is incremented or decremented by 1 whenever
rotation of the Modify knob is sensed. The — and — keys
move the cursor through the display.
MULTI SPEER (no digit is flashing). This mode is useful when
making large changes. The least significant digit in the display
is incremented or decremented 1, 2, 4, 8, 16 or 32 times
faster depending upon how fast you turn the Modify knob.

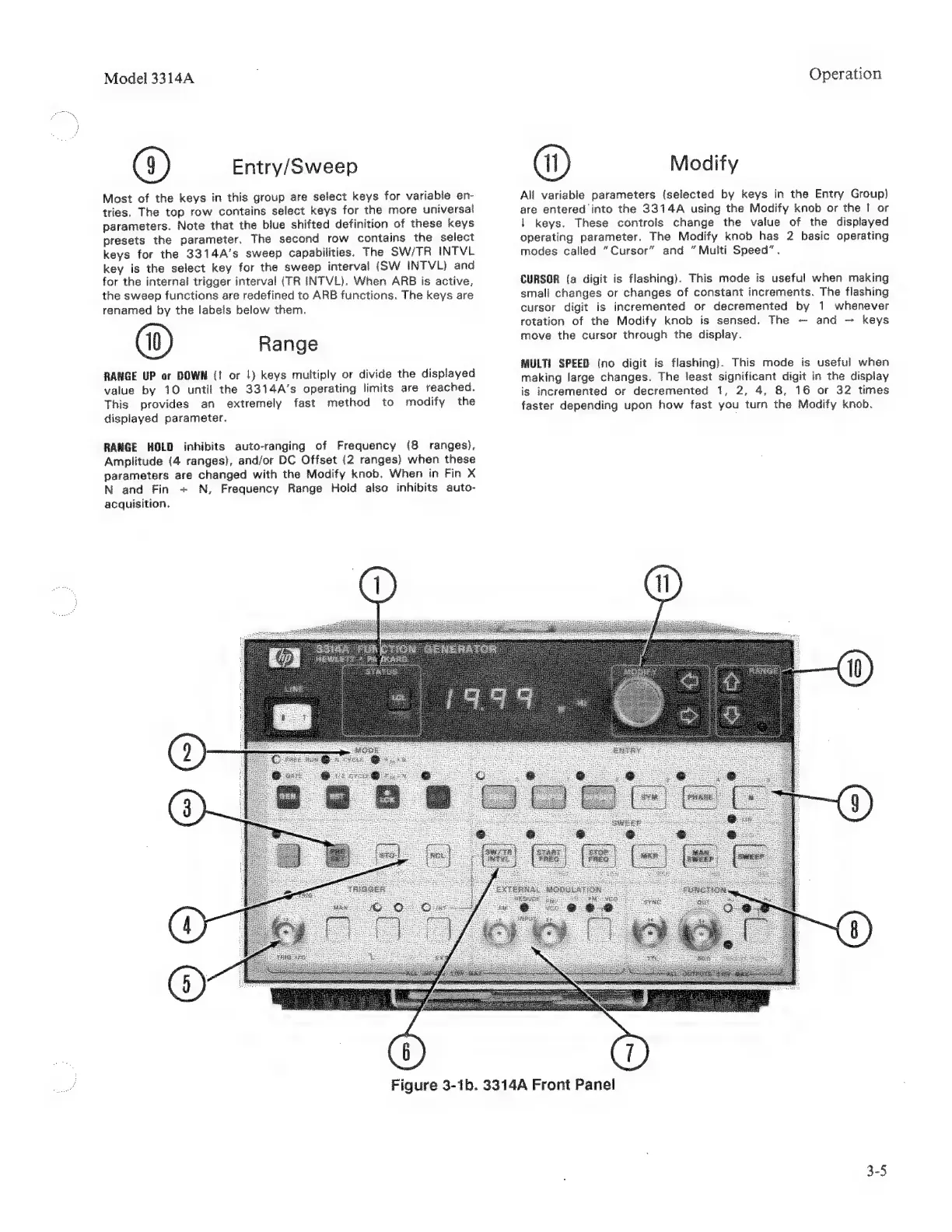

Figure 3-1b. 3314A Front Panel
