Model
3314A
УНЕ
Performance
Tests
SPECTRUM
ANALYZER
ATTENUATOR

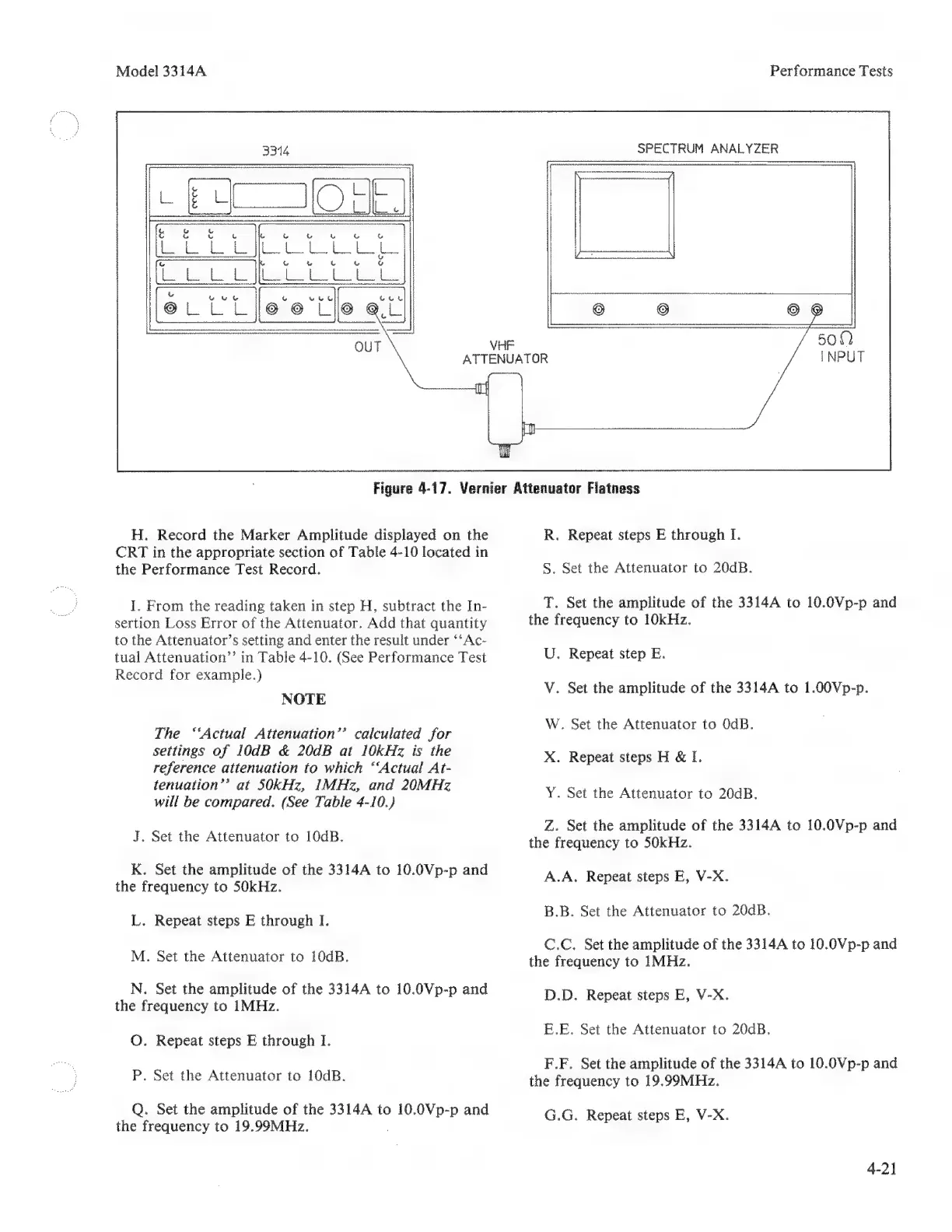

Figure
4-17.
Vernier
Attenuator
Flatness
H.
Record
the
Marker
Amplitude
displayed
on
the
CRT
in
the
appropriate
section
of
Table
4-10
located
in
the
Performance
Test
Record.
I.
From
the
reading
taken
in
step
H,
subtract
the
In-
sertion
Loss
Error
of
the
Attenuator.
Add
that
quantity
to
the
Attenuator's
setting
and
enter
the
result
under
“Ас-
tual
Attenuation’
m
Table
4-10.
(See
Performance
Test
Record
for
example.)
NOTE
The
“Actual
Attenuation”
calculated
for
settings
of
10dB
&
20dB
at
10kHz
is
the
reference
attenuation
to
which
“Actual
At-
tenuation”’
at
50kHz,
IMHz,
апа
20MHz
will
be
compared.
(See
Table
4-10.)
J.
Set
the
Attenuator
to
IOdB.
K.
Set
the
amplitude
of
the
3314A
to
10.0Vp-p
and
the
frequency
to
50КН2.
L.
Repeat
steps
E
through
I.
M.
Set the
Attenuator
to
10dB.
N.
Set
the
amplitude
of
the
3314A
to
10.0Vp-p
and
the
frequency
to
1MHz.
O.
Repeat
steps
E
through
I.
P.
Set
the
Attenuator
to
10dB.
Q.
Set
the
amplitude
of
the
3314A
to
10.0Vp-p
and
the
frequency
to
19.99MHz.
R.
Repeat
steps
E
through
I.
S.
Set
the
Attenuator
to
20dB.
T.
Set the
amplitude
of
the
3314A
to
10.0Vp-p
and
the
frequency
to
10kHz.
U.
Repeat
step
E.
V.
Set
the
amplitude
of
the
3314A
to
1.00Vp-p.
W.
Set
the
Attenuator
to
OdB.
X.
Repeat
steps
H
&
I.
Y.
Set
the
Attenuator
to
20dB.
Z.
Set
the
amplitude
of
the
3314A
to
10.0Vp-p
and
the
frequency
to
50kHz.
A.A,
Repeat
steps
E,
V-X.
B.B.
Set
the
Attenuator
to
20dB.
C.C.
Set
the
amplitude
of
the
3314A
to
10.0Vp-p
and
the
frequency
to
IMHz.
D.D.
Repeat
steps
E,
V-X.
E.E.
Set
the
Attenuator
to
20dB.
F.F.
Set
the
amplitude
of
the
3314A
to
10.0Vp-p
and
the
frequency
to
19.99M
Hz.
G.G.
Repeat
steps
E,
V-X.
4-21
