Performance 'rests
Model 3314A
110
3314
50 OHM
FEEDTHRU
TERMINA TION
3314
NO CONNECTION

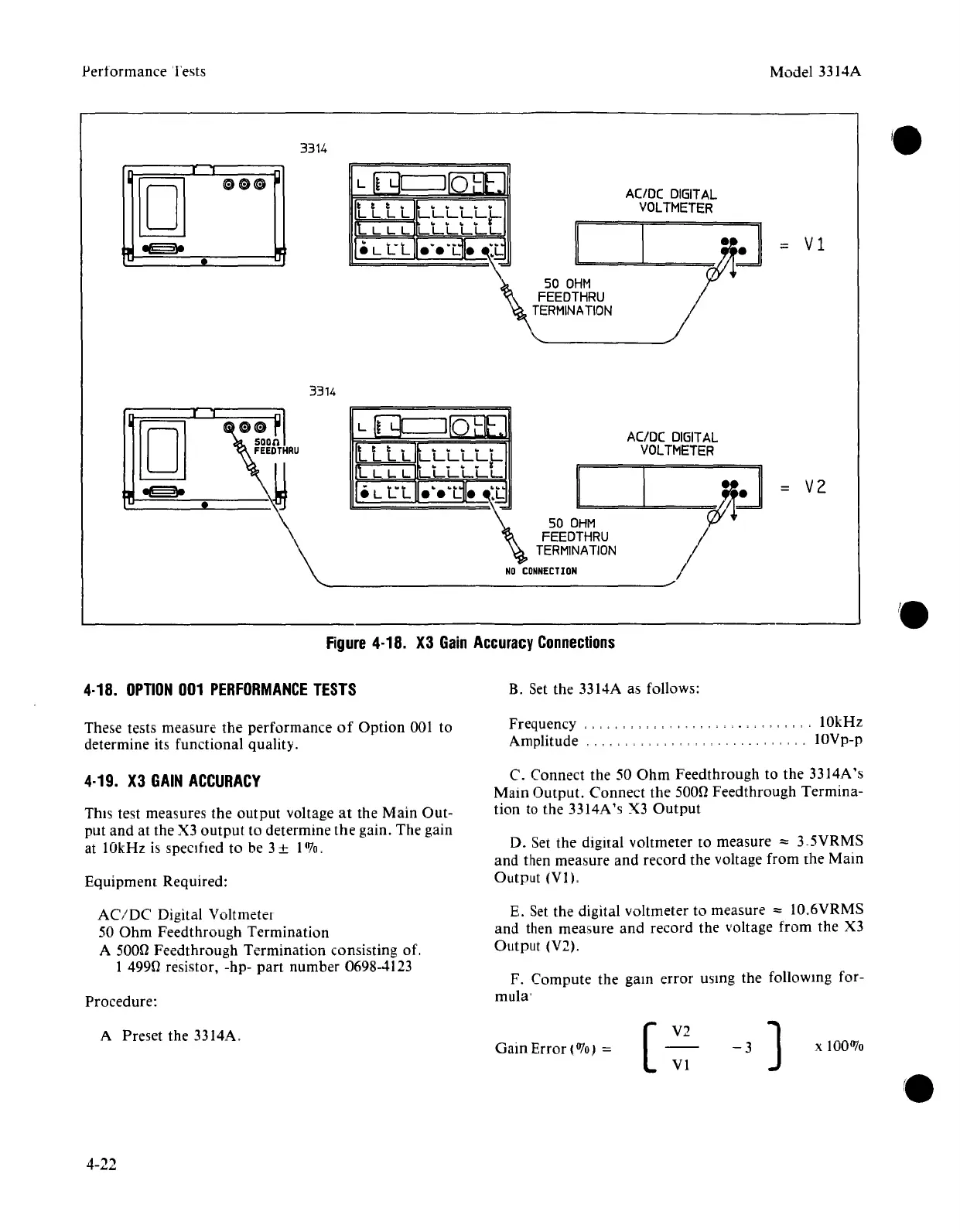

Figure 4·18. X3 Gain Accuracy Connections
AC/DC DIGITAL
VOLTMETER
AC/DC DIGITAL
VOLTMETER
= Vi
= V2
4·18. OPTION 001 PERFORMANCE TESTS
These tests measure the performance of Option 001 to
determine its functional quality.
B. Set the 3314A as follows:
Frequency .. , , , , , , , . , . , , .
Amplitude . . . , , , , . ,
10kHz
lOVp-p
4-19. X3 GAIN ACCURACY
ThIS test measures the output voltage at the Main Out-
put and at the X3 output to determine the gain. The gain
at 10kHz is specified to be 3 ± 1070.
Equipment Required:
C. Connect the 50 Ohm Feedthrough to the 3314A's
MaIO Output. Connect the 5000 Feedthrough Termina-
tion to the 3314A's X3 Output
D. Set the digital voltmeter to measure > 3.5VRMS
and then measure and record the voltage from the Main
Output (VI).
F. Compute the gam error using the following for-
mula'
E. Set the digital voltmeter to measure > 1O.6VRMS
and then measure and record the voltage from the X3
Output (V2).
AC /DC Digital Voltmeter
50 Ohm Feedthrough Termination
A 5000 Feedthrough Termination consisting of.
1 4990 resistor, -hp- part number 0698-4123
Procedure:
A Preset the 3314A.
4-22
Gain Error (070) =
[
~
VI
x 100070
