Rack Mounting
● Install an Instrument support rail on each side of the Instrument cabi
net. (The Instrument support rails, used to support
the weight of fhe
Instrument, are Included with HP instrument cabinets.)
I
WARNING
The HP 3326A is heavy (approximately 27 kg, 60
IbsJ. Use extreme care when lifting it to avoid per
sonal injury. The weight of the HP 3326A must be
supported by instrument support rails inside the in
strument cabinet. Do not, under any circum
stances, attempt to rack mount the HP 3326A
using only the front flanges.
● Using two people, l ift the HP 3326A to Its position in the cabinet on
top of the instrument support rai ls.
● Using the appropriate screws, fasten the HP 3326A rack mount
flanges to the front of the instrument cabinet.
HANDLE KIT, BENCH OPERATION
5061-0090
OPTION 907
RACK MOUNT FLANGE KIT
5061-0078
OPTION 908
RACK MOUNT FLANGE/FRONT HANDLE KIT
5061-0084
OPTION 909

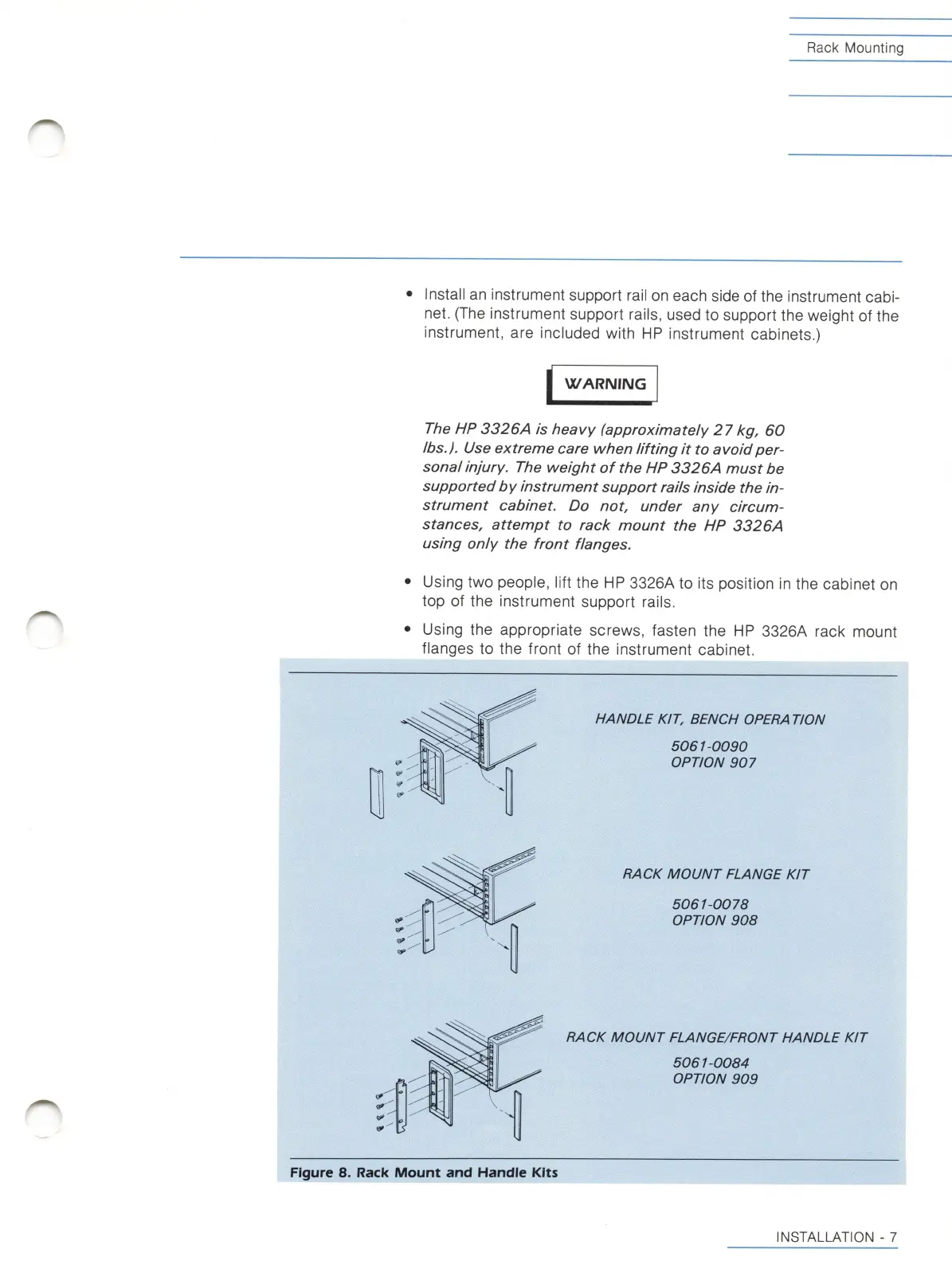

Figure 8. Rack Mount and Handle Kits
INSTALLATION - 7
