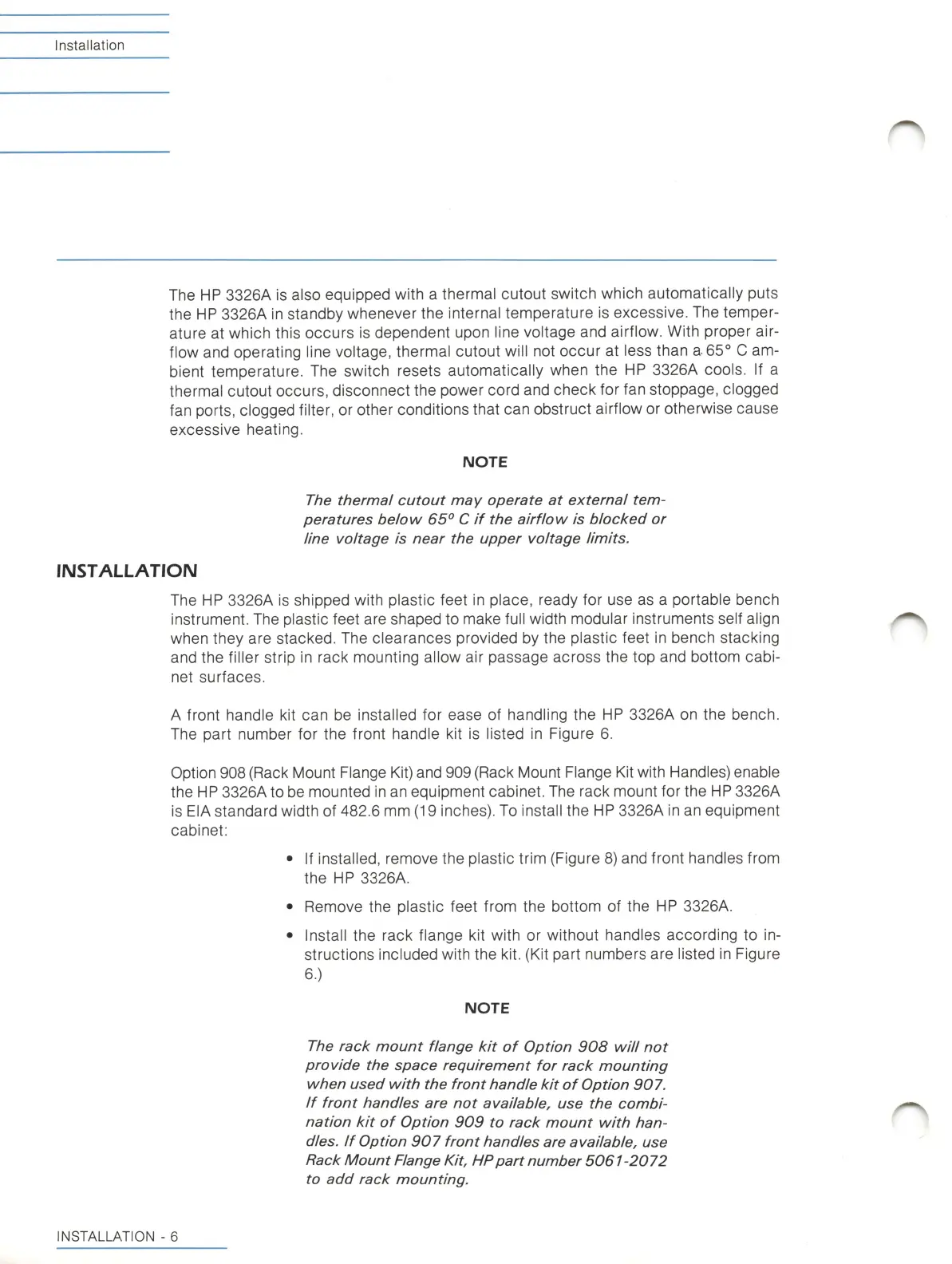

Installation
The
HP
3326A
is
also
equipped
with
a
thermal
cutout
switch
which
automaticai
iy
puts
the
HP
3326A
in
standby
whenever
the
internai
temperature
is
excessive.
The
temper
ature
at
which
this
occurs
is
dependent
upon
i
ine
voitage
and
airfiow.
With
proper
air-
fiow
and
operating
line
voitage,
thermai
cutout
wii
i
not
occur
at
iess
than
a
65°
C
am
bient
temperature.
The
switch
resets
automatically
when
the
HP
3326A
coois.
if
a
thermai
cutout
occurs,
disconnect
the
power
cord
and
check
for
fan
stoppage,
ciogged
fan
ports,
clogged
filter,
or
other
conditions
that
can
obstruct
airflow
or
otherwise
cause
excessive
heating.
MOTE
The
thermal
cutout
may
operate
at
external
tem
peratures
below
65°
C
if
the
airflow
is
blocked
or
line
voltage
is
near
the
upper
voltage
limits.
INSTALLATION
The
HP
3326A
is
shipped
with
plastic
feet
in
place,
ready
for
use
as
a
portable
bench
instrument.
The
plastic
feet
are
shaped
to
make
full
width
modular
instruments
self
align
when
they
are
stacked.
The
clearances
provided
by
the
plastic
feet
in
bench
stacking
and
the
fi
l
ler
strip
in
rack
mounting
al
low
air
passage
across
the
top
and
bottom
cabi
net
surfaces.
A
front
handle
kit
can
be
instal
led
for
ease
of
handl
ing
the
HP
3326A
on
the
bench.
The
part
number
for
the
front
handle
kit
is
listed
in
Figure
6.
Option
908
(Rack
Mount
Flange
Kit)
and
909
(Rack
Mount
Flange
Kit
with
Handles)
enable
the
HP
3326A
to
be
mounted
in
an
equipment
cabinet.
The
rack
mount
for
the
HP
3326A
is
EIA
standard
width
of
482.6
mm
(19
inches).
To
install
the
HP
3326A
in
an
equipment
cabinet:
If
instal
led,
remove
the
plastic
trim
(Figure
8)
and
front
handles
from
the
HP
3326A.
Remove
the
plastic
feet
from
the
bottom
of
the
HP
3326A.
Instal
l
the
rack
flange
kit
with
or
without
handles
according
to
in
structions
included
with
the
kit.
(Kit
part
numbers
are
l
isted
in
Figure
6.)
MOTE
The
rack
mount
flange
kit
of
Option
908
will
not
provide
the
space
requirement
for
rack
mounting
when
used
with
the
front
handle
kit
of
Option
907.
If
front
handles
are
not
available,
use
the
combi
nation
kit
of
Option
909
to
rack
mount
with
han
dles.
If
Option
907
front
handles
are
available,
use
Rack
Mount
Flange
Kit,
HP
part
number
5061-2072
to
add
rack
mounting.
INSTALLATION
-
6
