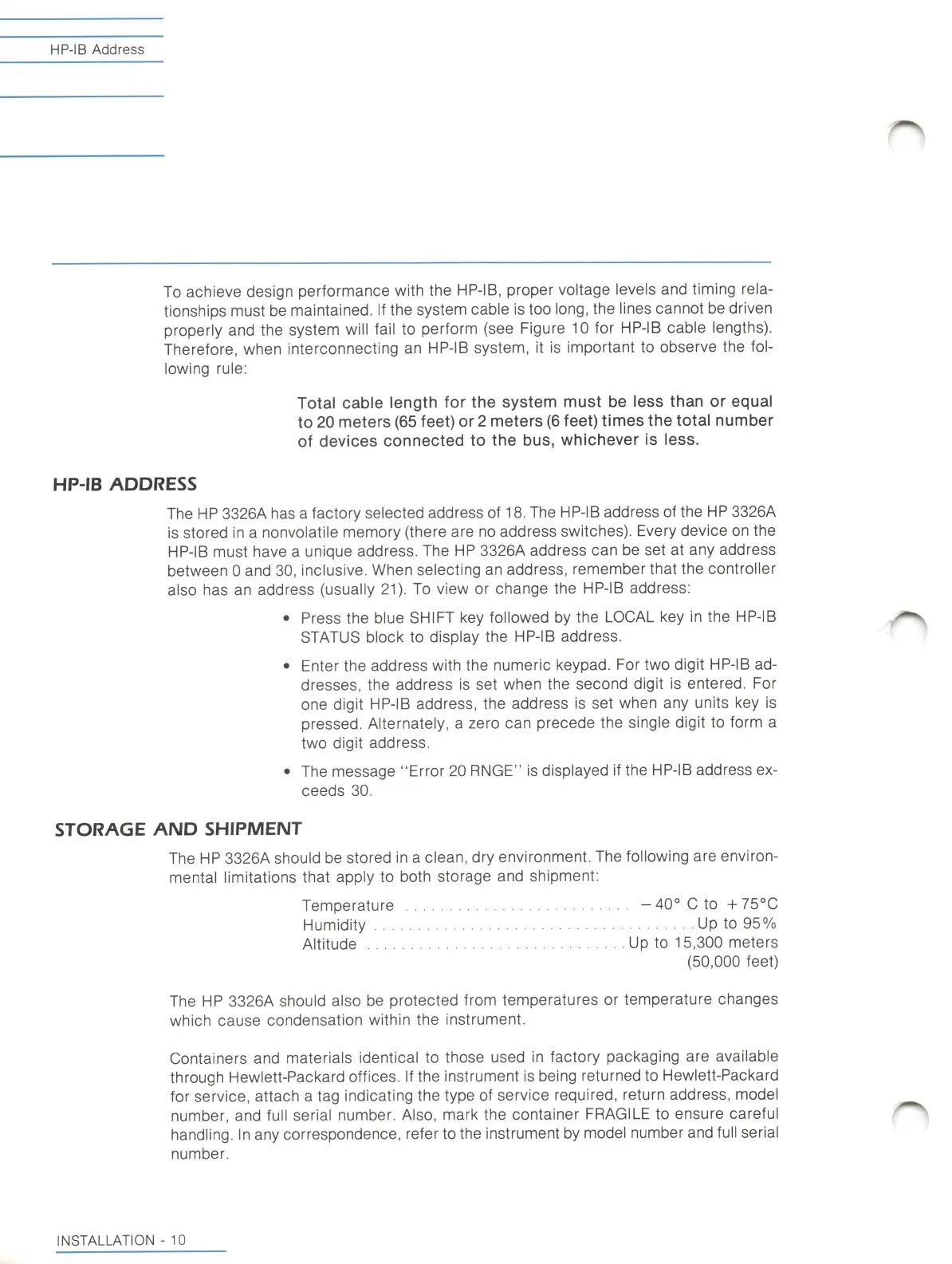

HP-IB Address
To achieve design performance with the HP-IB, proper voltage levels and timing rela
tionships must be maintained. If the system cable is too long, the l ines cannot be driven
properly and the system will fai l to perform (see Figure 10 for HP-IB cable lengths).
Therefore, when interconnecting an HP-IB system, it is important to observe the fol
lowing rule;
Total cable length for the system must be less than or equal
to 20 meters (65 feet) or 2 meters (6 feet) times the total number
of devices connected to the bus, whichever is less.
HP-IB ADDRESS
The HP 3326A has a factory selected address of 18. The HP-IB address of the HP 3326A
is stored in a nonvolatile memory (there are no address switches). Every device on the
HP-IB must have a unique address. The HP 3326A address can be set at any address
between 0 and 30, inclusive. When selecting an address, remember that the controller
also has an address (usually 21). To view or change the HP-IB address;
● Press the blue SHIFT key fol lowed by the LOCAL key in the HP-IB
STATUS block to display the HP-IB address.
● Enter the address with the numeric keypad. For two digit HP-IB ad
dresses, the address is set when the second digit is entered. For
one digit HP-IB address, the address is set when any units key is
pressed. Alternately, a zero can precede the single digit to form a
two digit address.
● The message “Error 20 RNGE’’ is displayed if the HP-IB address ex
ceeds 30.
STORAGE AMD SHIPMENT
The HP 3326A should be stored in a clean, dry environment. The fol lowing are environ
mental l imitations that apply to both storage and shipment;
Temperature
Humidity . . .
Altitude . . . .
-40° C to -k75°C
Up to 95%
Up to 15,300 meters
(50,000 feet)
The HP 3326A should also be protected from temperatures or temperature changes
which cause condensation within the instrument.
Containers and materials identical to those used in
factory packaging are avai lable
through Hewlett-Packard offices. If the instrument is being returned to Hewlett-Packard
for service, attach a tag indicating the type of service required, return address, model
number, and ful l serial number. Also, mark the container FRAGILE to ensure careful
handling. In any correspondence, refer to the instrument by model number and ful l serial
number.
INSTALLATION - 10
