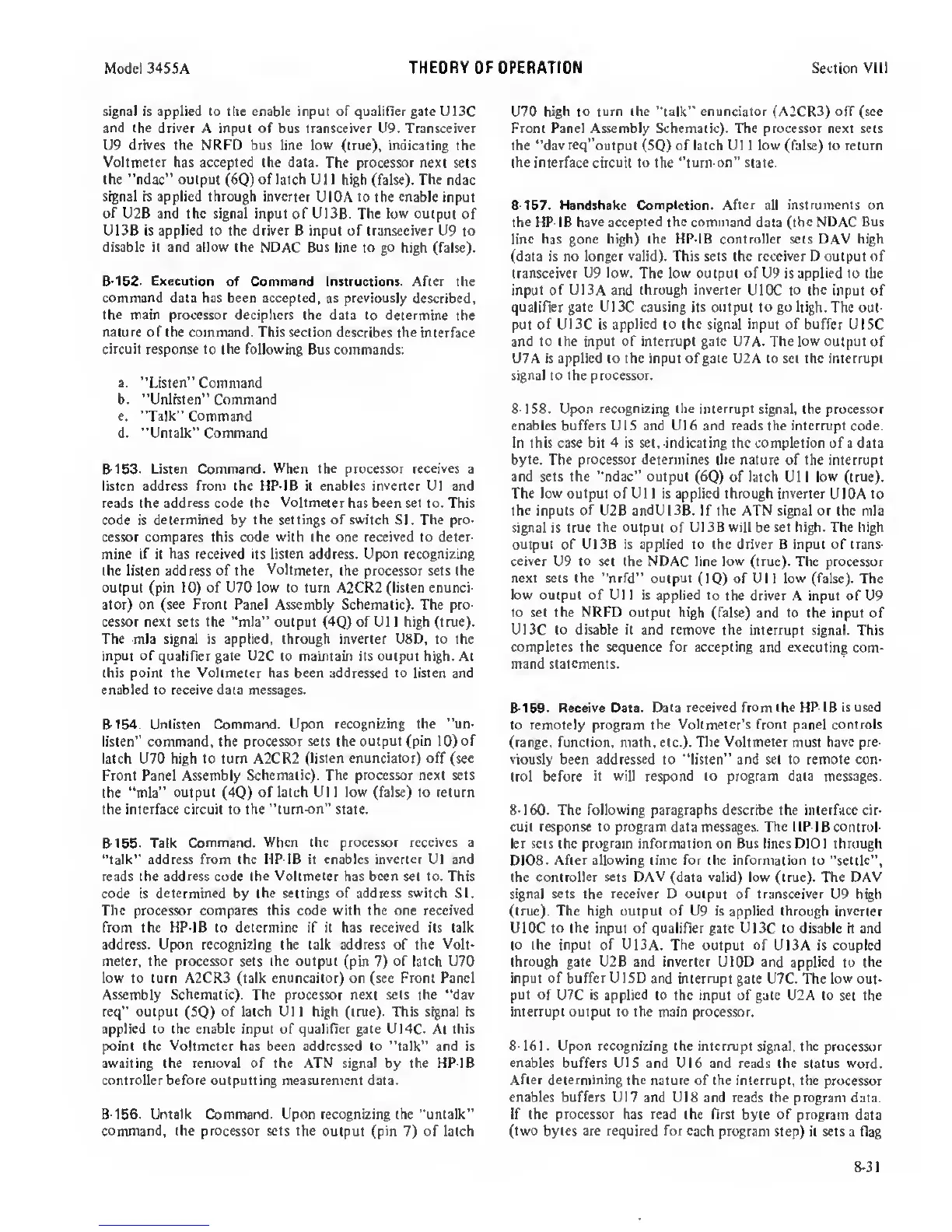

Model 34S5A
THEORY OF OPERATION Section VIII
signal is applied to the enable input of qualifter gate
UI3C
and
the
driver
A input of bus transceiver U9. Transceiver
U9 drives the NRFD
bus
line
low (true), indicating the
Voltmeter has accepted the
data.
The processor
next sets
the “ndac” output
(6Q)
of latch
Dll high (false). The ndac
signal is applied through inverter
U lOA to the
enable
input
of U2B and the signal input of
U13B.
The low output
of
U13B is
applied
to the driver B input of transceiver U9 to
disable it and allow the NDAC Bus line to go
high (false).
8*152. Execution
of
Command
Instructions. After the
command data has been accepted, as previously
described,
the
main processor deciphers the data to
determine the
nature of the command. This section describes the
interface
circuit response
to
the following
Bus commands:
a. “Listen” Command
b. “Unlisten” Command
c.
“Talk”
Command
d. “Untalk” Command
8-153.
Listen CommarxJ.
When
the processor
receives
a
listen address from the HP-IB it enables
inverter
U1 and
reads the
address
code the
Voltmeter
has been set to. This
code is
determined
by
the settings of switch
SI. The
pro-
cessor compares this code with the one
received
to deter-
mine if
it
has received
its listen
address.
Upon recognizing
the listen address of the
Voltmeter,
the processor sets the
output (pin
10)
of U70 low to turn A2CR2 (listen enunci-
ator) on (see Front Panel Assembly Schematic). The pro-
cessor next sets the “mla” output
(4Q)
of U1 1 high (true).
The mla signal is applied, through inverter USD. to the
input
of
qualifier
gate U2C
to maintain its output high. At
this point the Voltmeter has been addressed to listen and
enabled to receive data messages.
8-154.
Unlisten Command. Upon
recognizing the “un-
listen” command, the processor
sets
the
output (pin
10)
of
latch U70 high to turn A2CR2 (listen
enunciator)
off
(see
Front Panel Assembly
Schematic). The processor next sets
the “mla"
output
(^)
of latch U1
1
low (false) to return
the interface circuit to the
“turn-on”
state.
8-155.
Talk Command.
When the processor receives a
“talk” address from the HP-lB it enables
inverter
U1 and
reads the address code the
Voltmeter
has been set to. This
code is
determined
by
the settings of address switch
SI.
The processor compares this code with the one received
from the HP-IB to determine if it has received its talk
address. Upon recognizing the talk address of the
Volt-
meter. the processor sets the output
(pin
7)
of latch U70
low to turn A2CR3 (talk enuncaitor) on (see Front Panel
Assembly Schematic). The processor next sets the "dav
req” output
(SQ)
of latch Ull high (true). This signal is
applied to the enable input of qualifier gate
U14C. At
this
point the Voltmeter has been addressed to “talk” and is
awaiting the removal of the ATN signal by the HP-IB
controller before outputting measurement data.
8-156.
Untalk Command.
Upon
recognizing the “untalk”
command, the processor sets the
output (pin
7)
of latch
U70
high to turn the
“talk"
enunciator
(A2CR3)
off (see
Front Panel Assembly Schematic). The processor next sets
the
“dav
req
"output
(5Q)
of latch U 1 1
low
(false) to return
the
interface circuit
to
the “turn-on"
state.
8-157. Handshake Completion. After
all
instruments
on
the HP-IB
have accepted the command
data
(the NDAC Bus
line has gone high) the HP-IB controller sets DAV high
(data is no longer valid). This sets the
receiver
D output of
transceiver
U9
low.
The low output of U9 is applied to the
input
of
U13A and
through inverter
UlOC to the input of
qualifier gate UI3C causing
its
output to go
high. The out-
put
of
U13C is
applied
to
the
signal
input
of buffer UI5C
and to the input of interrupt gate U7A. The low output
of
U7A is applied to the input of gate U2A to set the interrupt
signal to the processor.
8-IS8. Upon
recognizing the interrupt signal,
the processor
envies buffers UlS and UI6and reads the interrupt
code.
In this case bit
4
is set, indicating the completion of a data
byte. The processor determines the
nature of the interrupt
and sets the “ndac” output
(6Q)
of latch U1 1
low
(true).
The low output of Ul 1 is applied through inverter
UlOA to
the inputs
of
U2B andUI3B. If the ATN signal or the mla
signal is
true the output
of
U13B will be set high. The high
output of U13B is applied to the driver B input of trans-
ceiver
U9
to
set the NDAC line low (true). The processor
next sets the “nrfd”
output (IQ) of Ul 1 low (false). The
low output of Ul 1 is applied
to the driver A input of U9
to set the NRFD output high
(false) and to the input of
U13C to disable it and remove
the
interrupt
signal. This
completes the sequence for accepting
and
executing
com-
mand statements.
8-159. Receive Data. Data
received
from
the HP-IB Is used
to remotely program the
Voltmeter’s front panel controls
(range, function, math, etc.). The Voltmeter must
have
pre-
viously
been addressed to “listen” and set to remote con-
trol before it
will respond to program data messages.
8-160.
The following paragraphs describe the interface cir-
cuit
response to program data messages. The HP-IB
control-
ler sets the
program
information on Bus lines DIOl through
D108.
After allowing lime for the information
to
“settle",
the controller sets
DAV
(data
valid)
low (true). The DAV
signal sets the receiver D output of transceiver
U9 high
(true). The high output of U9 is applied
through
inverter
UlOC
to
the input of qualifier gate UI3C to disable it and
to the input
of
U13A.
The output
of
UI3A is coupled
through gate U2B and inverter UIOD and applied
to the
input of buffer U15D
and
interrupt
gate U7C. The low out-
put of
U7C
is applied
to the input of gate U2A to set the
interrupt output to the main processor.
8-161.
Upon recognizing the interrupt signal, the
processor
enables
buffers UlS and U16 and reads the status word.
After determining
the nature of the interrupt, the
processor
enables buffers
U17 and UlS and reads the program data.
If the processor has read the first byte of program
data
(two bytes are required for each
program step) it sets
a
flag
8-31
