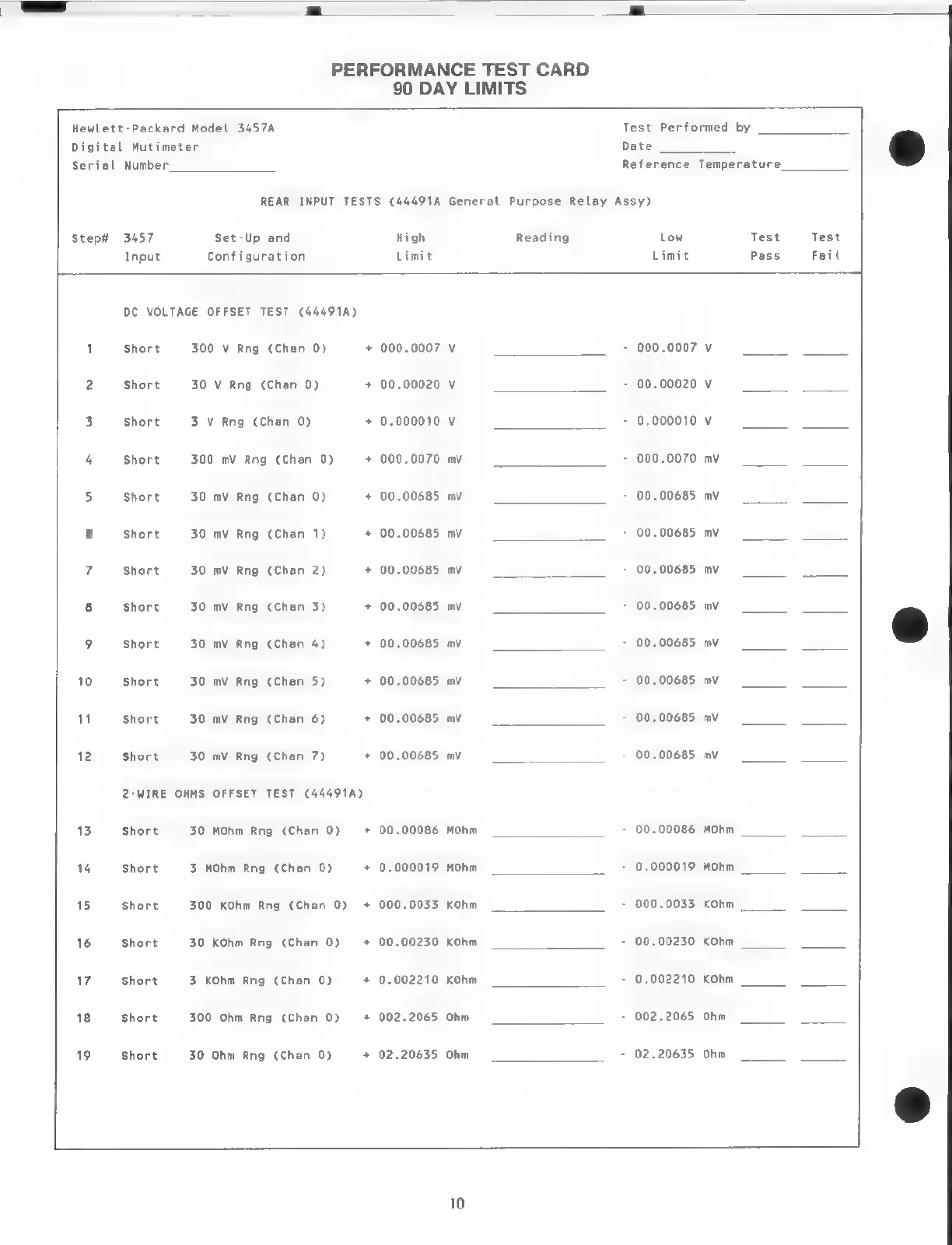

PERFORMANCE TEST CARD
90 DAY LIMITS
Hewlett-Packard Model 3457A Test Performed by
Digital Mutimeter Date
Serial Number Reference Temperature
REAR INPUT TESTS (44491A General Purpose Relay Assy)
Step# 3457 Set-Up and High Reading Low
Input Configuration Limit Limit
Test
Pass
Test
Fail
DC VOLTAGE OFFSET TEST (44491A)
1 Short 300 V Rng (Chan 0) + 000.0007 v - 000.0007 v
2 Short 30 V Rng (Chan 0) + 00.00020 v + 00.00020 v
3 Short 3 V Rng (Chan 0) + 0.000010 v - 0.000010 v
4 Short 300 mV Rng (Chan 0) + 000.0070 mv —— - 000.0070 mv
= Short 30 mV Rng (Chan 0) + 00.00685 mv - 00.00685 mv
6 Short 30 mV Rng (Chan 1) + 00.00685 mv ~ 00.00685 mv
, Short 30 mV Rng (Chan 2) + 00.00685 mv - 00.00685 mv
8 Short 30 mV Rng (Chan 3) + 00.00685 mv - 00.00685 mv
9 Short 30 mV Rng (Chan 4) + 00.00685 mv - 00.00685 mv
10 Short 30 mV Rng (Chan 5) + 00.00685 mv _ = «(00.00685 mv
im Short 30 mV Rng (Chan 6) + 00.00685 mv - 00.00685 mv
12 Short 30 mV Rng (Chan 7) + 00.00685 mv _— - 00.00685 mv
2-WIRE OHMS OFFSET TEST (44491A)
13 Short 30 MOhm Rng (Chan 0) + 00.00086 MOohm > 00.00086 MOhm
14 Short 3 MOhm Rng (Chan 0) + 0.000019 MOhm + 0.000019 MOhm
15 Short 300 KOhm Rng (Chan 0) + 000.0033 KOhm - 000.0033 KOhm
16 Short 30 KOhm Rng (Chan 0) + 00.00230 KOhm - 00.00230 KkOhm
17 Short 3 KOhm Rng (Chan 0) + 0.002210 KOhm - 0.002210 KOhm
18 Short 300 Ohm Rng (Chan 0) + 002.2065 Ohm - 002.2065 Ohm
19 Short 30 Ohm Rng (Chan 0) + 02.20635 Ohm + 02.20635 Ohm
