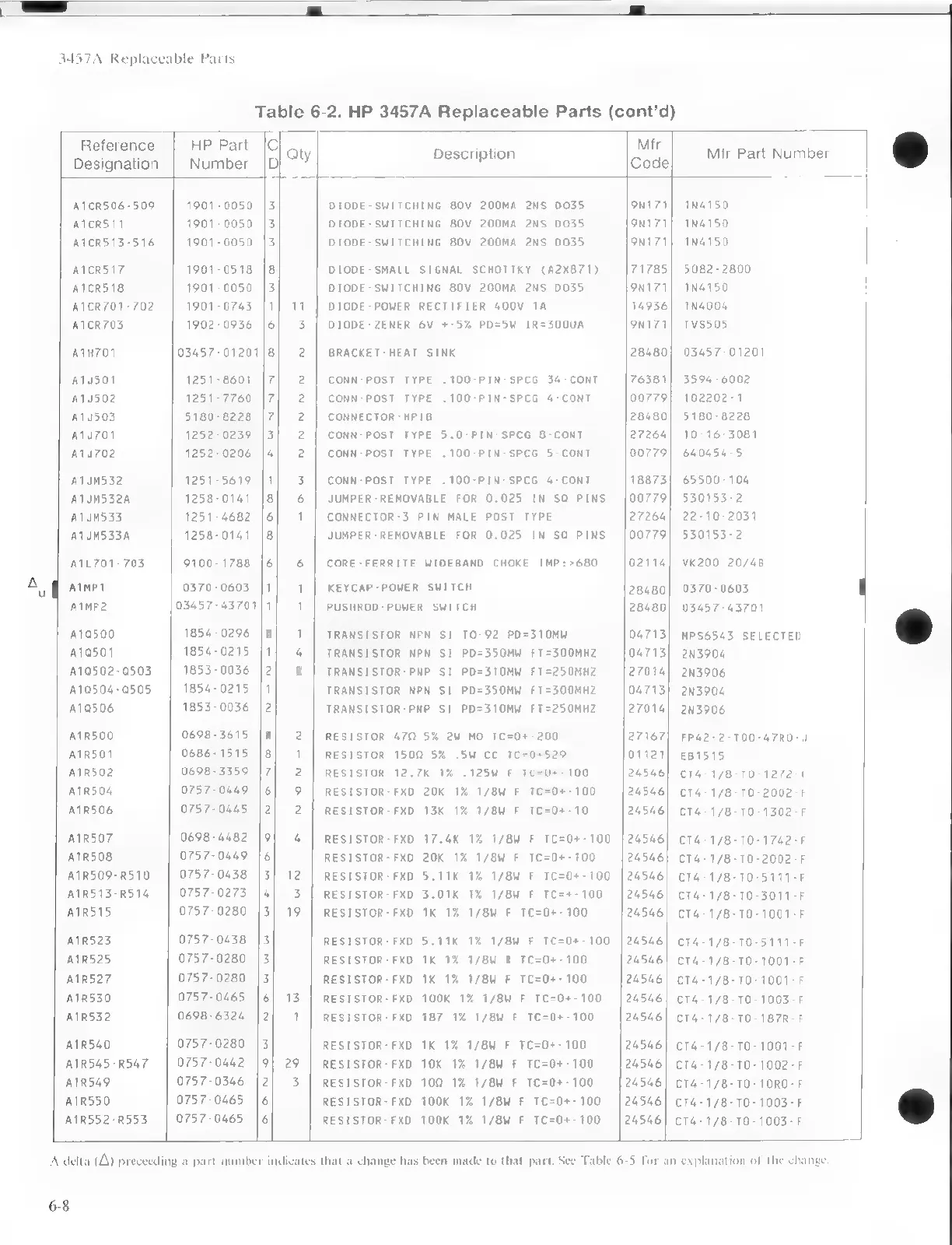

3457A Replaceable Parts
Table 6-2. HP 3457A Replaceable Parts (cont'd)
Reference HP Part |C| Mfr
4 Qt Description Mfr Part Number
Designation Number |D| P Code
A1cR506-509 | 1901-0050 |3 DIODE-SWITCHING 80V 200MA 2NS D035 9N171] 1N4150
A1CR511 1901-0050 |3 DIODE-SWITCHING 80V 200MA 2NS D035 9N171] 1N4150
A1CR513-516 | 1901-0050 |3 DIODE-SWITCHING 80V 200MA 2NS 0035 9N171] 1N4150
AICR517 1901-0518 |8 DIODE-SMALL SIGNAL SCHOTTKY (A2x871) 71785| 5082-2800
AICRS18 1901-0050 |3 DIODE-SWITCHING SOV 200MA 2NS DO35 9NI71] 1N4150
A1CR701-702 1901-0743 |1] 11 | DIODE-POWER RECTIFIER 400V 1A 14936] 1N4004
AICR703 1902-0936 |6 DIODE-ZENER 6V +-5% PD=5W IR=300UA 9nt71] TVS505
A1H701 03457-01201/8| 2 | BRACKET-HEAT SINK 28480] 03457-01201
A1d501 1251-8601 |7] 2 | CONN-POST TYPE .100-PIN-SPCG 34-CONT 76381] 3594-6002
A1g502 1251-7760 |7] 2 | CONN-POST TYPE .100-PIN-SPCG 4-CONT 00779] 102202-1
A1d503 5180-8228 |7| 2 | CONNECTOR-HPIB 28480| 5180-8228
A1J701 1252-0239 |3| 2 | CONN-POST TYPE 5.0-PIN-SPCG 8-CONT 27264| 10-16-308
A1d702 1252-0206 |4| 2 | CONN-POST TYPE .100-PIN-SPCG 5-CONT 00779| 640454-5
ALIMS32 1251-5619 |1| 3 | CONN-POST TYPE .100-PIN-SPCG 4-CONT 18873] 65500-104
ATIMS32A 1258-0141 |8| 6 | JUMPER-REMOVABLE FOR 0.025 IN SQ PINS |00779] 530153-2
A1JM533 1251-4682 |6} 1 | CONNECTOR-3 PIN MALE POST TYPE 27264] 22-10-2031
ATIMS33A 1258-0141 |8 JUMPER-REMOVABLE FOR 0.025 IN SO PINS |00779| 530153-2
AIL701-703 9100-1788 |6| 6 | CORE-FERRITE WIDEBAND CHOKE IMP:>680 02114] vK200 20/48
AIMP1 0370-0603 }1| 1 | KEYCAP-POWER SWITCH 28480| 0370-0603
AIMP2 03457-43701]1] 1 | PUSHROD-POWER SWITCH 28480] 03457-4370
A10500 1854-0296 |8| 1 | TRANSISTOR NPN SI TO-92 PD=310MW 04713] MPS6543 SELECTED
A1Q0501 1854-0215 |1| 4 | TRANSISTOR NPN SI PD=350MW FT=300MHZ 04713) 2N3904
A10502-0503 1853-0036 |2 5 TRANSISTOR-PNP SI PD=310MW FT=250MHZ 27014) 2N3906
10504-0505 1854-0215 |1 TRANSISTOR NPN SI PD=350MW FT=300MHZ 04713] 2N3904
10506 1853-0036 |2 TRANSISTOR-PNP SI PD=310MW FT=250MHZ 27014) 2N3906
A1R500 0698-3615 |8] 2 | RESISTOR 472 5% 2W MO TC=0+-200 27167) FP42-2-T00-47RD-
A1R501 0686-1515 |8] 1 | RESISTOR 1502 5% .5W CC T 01121) £81515,
AIR502 0698-3359 |7| 2 | RESISTOR 12.7k 1% .125W FT 100 24546] C14-1/8-T0-1272
A1R504 0757-0449 |6] 9 | RESISTOR-FXD 20K 1% 1/8W F TC=0+-100 24546] CT4-1/8-T0-2002
A1R506 0757-0445 2] 2 | RESISTOR-FXD 13K 1% 1/8W F TC=0+-10 24546] CT4-1/8-T0-1302-F
A1R507 0698-4482 |9/ 4 | RESISTOR-FXD 17.4K 1% 1/8W F TC=0+-100 |24546] cT4-1/8-10-1742-
A1R508 0757-0449 16 RESISTOR-FXD 20k 1% 1/8W F TC=0+-100 24546) CT4-1/8-T0-2002-F
AIR509-R510 | 0757-0438 |3] 12 | RESISTOR-FXD 5.11K 1% 1/8W F TC=O0+-100 [24546] CT4-1/8-10-5111-F
AIR513-R514 | 0757-0273 |4| 3 | RESISTOR-FXD 3.01K 1% 1/8W F TC=+-100 [24546] cT4-1/8-T0-3011-F
AIR515 0757-0280 |3| 19 | RESISTOR-FXD 1k 1% 1/8W F TC=0+-100 24546| CT4-1/8-10-1001-F
AIR523 0757-0438 |3 RESISTOR-FXD 5.11K 1% 1/8W F TC=0+-100 |24546] CT4-1/8-T0-5111-F
AIR525 0757-0280 |3 RESISTOR-FXD 1K 1% 1/8W F TC=0+-100 24546) CT4-1/8-T0-1001-F
AIR527 0757-0280 |3 RESISTOR-FXD 1K 1% 1/8W F TC=0+-100 24546] CT4-1/8-T0-1001-F
A1R530 0757-0465 |6| 13 | RESISTOR-FXD 100K 1% 1/8W F TC=0+-100 |24546| cT4-1/8-T0-1003-F
AIRS32 0698-6324 |2| 1 | RESISTOR-FXD 187 1% 1/8W F TC=0+-100 | 24546] CT4-1/8-T0-187R-F
A1R540 0757-0280 |3 RESISTOR-FXD 1K 1% 1/8W F TC=0+-100 24546] CT4-1/8-T0-1001-F
AIR545-R547
|
0757-0442
|9|
29
|
RESISTOR-FXD
10K
1%
1/8W
F
TC=0+-100
|24546]
CT4-1/8-T0-1002-F
AIR549
0757-0346
|2|
3
|
RESISTOR-FXD
100
1%
1/8W
F
TC=0+-100
|
24546]
cT4-1/8-10-10R0-F
AIR55SO 0757-0465 |6 RESISTOR-FXD 100K 1% 1/8W F TC=0+-100 | 24546] CT4-1/8-T0-1003-F
A1R552-R553
|
0757-0465
|6
RESISTOR-FXD
100K
1%
1/8W
F
TC=0+-100
[24546]
cT4-1/8-10-1003-F
A delta (4) preceeding a part number indicates that a change has been made to that part. See Table 6-5 for an explanation of the change.
