3457A Replaceable Parts

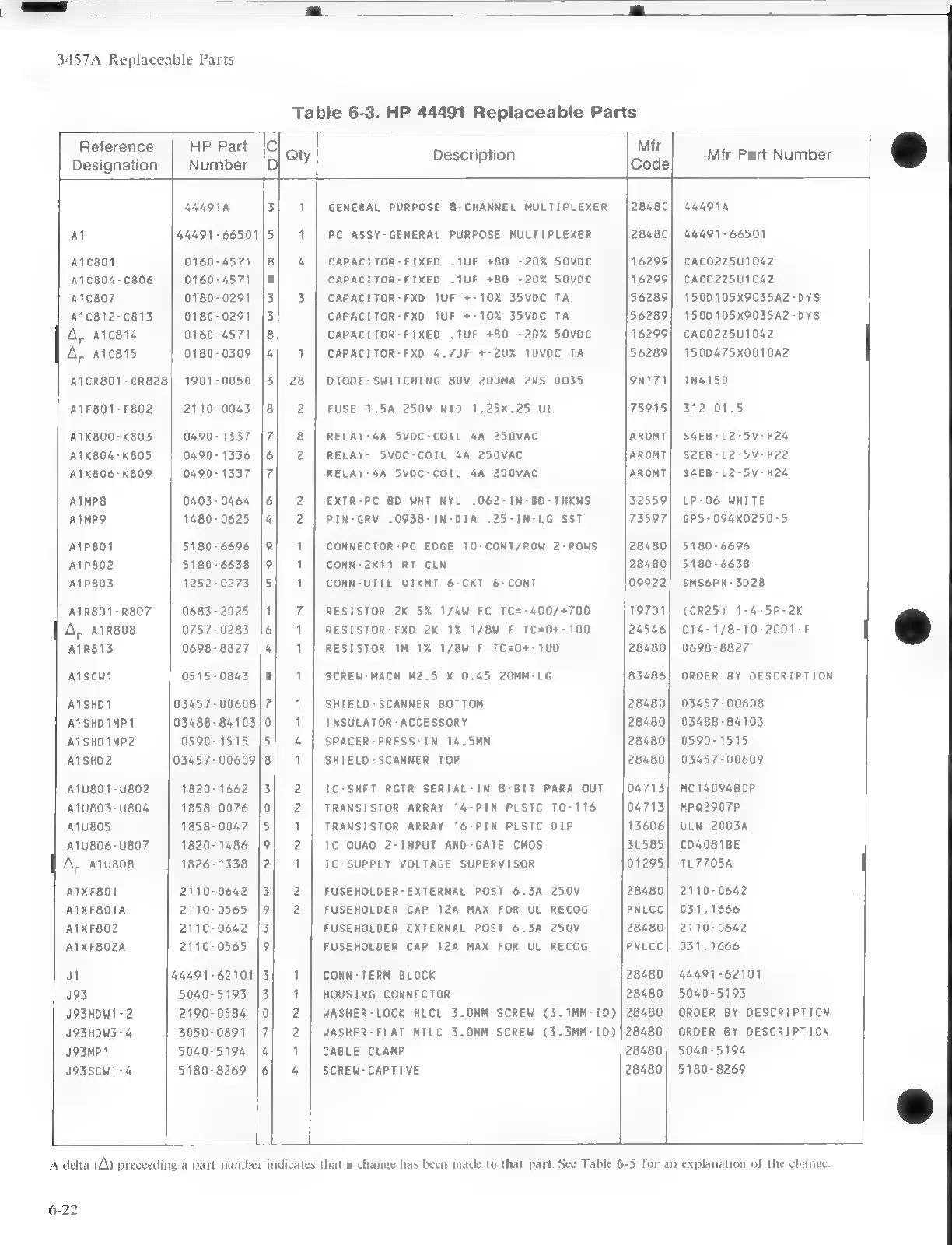

Table 6-3. HP 44491 Replaceable Parts
Reference HP Part |C| ey Mfr
‘ ‘ at Description Mfr Part Number
Designation Number |p| “'Y eer Code eck Numbe
444918 3] 1 | GENERAL PURPOSE 8-CHANNEL MULTIPLEXER |28480| 444918
Al 44491-66501/5| 1 | PC ASSY-GENERAL PURPOSE MULTIPLEXER 28480] 44491-66501
A1caot 0160-4571 |8| 4 | CAPACITOR-FIXED .1UF +80 -20% SOVvDC 16299] caco2z5u104z
A1C804-c806 | 0160-4571 |8 CAPACITOR-FIXED .1UF +80 -20% SOvoc 16299] caco2z5u1042z
A1C807 0180-0291 |3| 3 | CAPACITOR-FXD 1UF +-10% 35VDC TA 56289] 150D105x9035A2-DYS
A1c812-c813 | 0180-0291. |3 CAPACITOR-FXD 1UF +-10% 35VDC TA 56289] 1500105X9035A2-DYS
A, A1c814 0160-4571 {8 CAPACITOR-FIXED .1UF +80 -20% SOVDC 16299] cAcO2zZ5U104Z
A, A1c815 0180-0309 |4| 1 | CAPACITOR-FXD 4.7UF +-20% 10VDC TA 56289| 150D475x0010A2
AICR8O1-CR828| 1901-0050 |3] 28 | DIODE-SWITCHING 80V 200MA 2NS D035 9N171] 1N4150
A1F801-F802 | 2110-0043 [8] 2 | FUSE 1.5A 250V NTD 1.25X.25 UL 75915] 312 01.5
A1K800-K803 | 0490-1337 |7} 8 | RELAY-4A 5VDC-COIL 4A 250VAC AROMT| S4EB-L2-5V-H24
A1K804-K805 | 0490-1336 |6| 2 | RELAY- SVDC-COIL 4A 250VAC AROMT| S2EB-L2-5V-H22
A1K806-K809 | 0490-1337 |7 RELAY-4A 5VDC-COIL 4A 250VAC AROMT| SGEB-L2-5V-H24
AIMPB 0403-0464 [6] 2 | EXTR-PC BD WHT NYL .062-IN-BD-THKNS 32559] LP-06 WHITE
AIMP9 1480-0625 |4] 2 | PIN-GRV .0938-IN-DIA .25-IN-LG SST 73597] GP5-094x0250-5
A1PB01 5180-6696 |9| 1 | CONNECTOR-PC EDGE 10-CONT/ROW 2-ROWS | 28480] 5180-6696
A1PB02 5180-6638 |9| 1 | CONN-2x11 RT CLN 28480] 5180-6638
A1P803 1252-0273 |5| 1 | CONN-UTIL QIKMT 6-CKT 6-CONT 09922] sMS6PH-3028
A1R801-R807 | 0683-2025 |1| 7 | RESISTOR 2k 5% 1/4W FC TC=-400/+700 19701) (CR25) 1-4-5P-2Kk
A, A1R808 0757-0283 |6] 1 | RESISTOR-FXD 2k 1% 1/8W F TC=0+-100 24546] CT4-1/8-10-2001-F oe
AIRB13 0698-8827 |4| 1 | RESISTOR 1M 1% 1/8W F TC=0+-100 28480] 0698-8827
A1scW1 0515-0843 |2] 1 | SCREW-MACH M2.5 X 0.45 20MM-LG 83486] ORDER BY DESCRIPTION
AISHD1 03457-00608/7| 1 | SHIELD-SCANNER BOTTOM 28480] 03457-00608
ATSHDIMP1 03488-84103/0| 1 | INSULATOR-ACCESSORY 28480] 03488-84103
AVSHDIMP2 0590-1515 |5| 4 | SPACER-PRESS-IN 14.5MM 28480) 0590-1515
AISHD2 03457-00609|8| 1 | SHIELD-SCANNER TOP 28480] 03457-00609
A1u801-U802 | 1820-1662 }3} 2 | IC-SHFT RGTR SERIAL-IN 8-BIT PARA OUT 04713] MC14094B8CP
A1U803-U804 | 1858-0076 |0| 2 | TRANSISTOR ARRAY 14-PIN PLSTC TO-116 04713] mPa2907P
A1U805 1858-0047 |5| 1 | TRANSISTOR ARRAY 16-PIN PLSTC DIP 13606] ULN-2003A
A1u806-U807 | 1820-1486 |9| 2 | IC QUAD 2-INPUT AND-GATE CMOS 31585] CD4081BE
[ 4, A1U808 1826-1338 |2} 1 | IC-SUPPLY VOLTAGE SUPERVISOR 01295] TL7705A |
AIXF801 2110-0642 |3] 2 | FUSEHOLDER-EXTERNAL POST 6.3A 250V 28480] 2110-0642
AIXFBO1A 2110-0565 |9| 2 | FUSEHOLDER CAP 12A MAX FOR UL RECOG PNLCC] 031.1666
AIXF802 2110-0642 |3 FUSEHOLDER-EXTERNAL POST 6.3A 250V 28480] 2110-0642
AIXFBO2A 2110-0565 |9 FUSEHOLDER CAP 12A MAX FOR UL RECOG PNLCC] 031.1666
a) 44491-62101/3| 1 | CONN-TERM BLOCK 28480] 44491-62101
193 5040-5193 |3] 1 HOUSING-CONNECTOR 28480| 5040-5193
J9BHDW1-2 2190-0584 |0| 2 | WASHER-LOCK HLCL 3.0MM SCREW (3.1MM-1D)|28480| ORDER BY DESCRIPTION
JO3BHDWS - 4 3050-0891 |7| 2 | WASHER-FLAT MTLC 3.0MM SCREW (3.3MM-ID)|28480| ORDER BY DESCRIPTION
J93MP1 5040-5194 |4| 1 | CABLE CLAMP 28480] 5040-5194
J93SCWI-4 5180-8269 |6| 4 | SCREW-CAPTIVE 28480| 5180-8269
A delta (A) preceeding a part number indicates that a change has been made to that part. See Table 6-5 for an explanation of the change.
6-22
