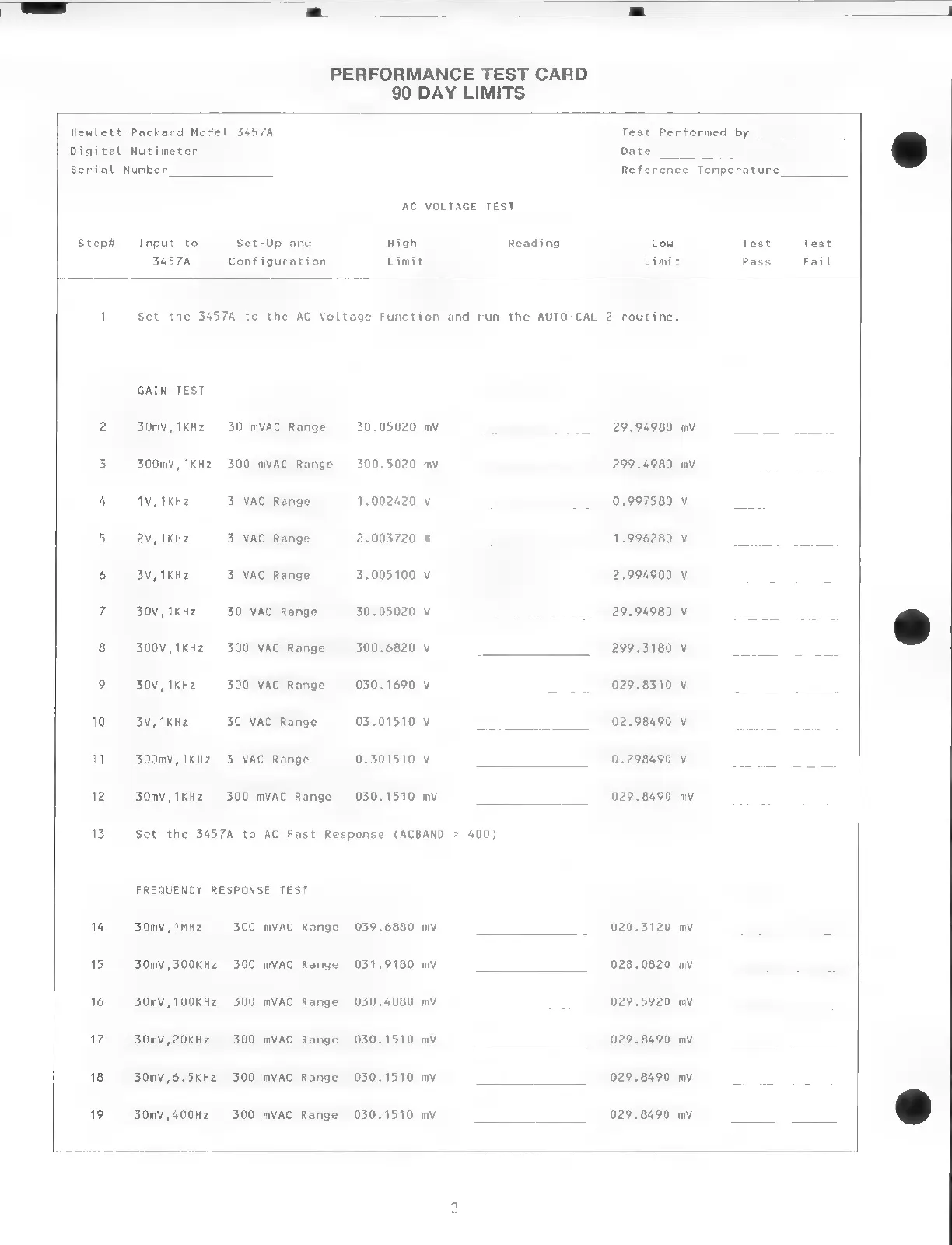

HP 3457A - Page 94

PERFORMANCE TEST CARD
90 DAY LIMITS
Hewlett-Packard Model 3457A
Digital Mutimeter
Serial Number
Test Performed by
dete
Reference Temperature.
AC VOLTAGE TEST
Step# Input to Set-Up and High Reading Low Test Test
34570 Configuration Limit Limit Pass Fail
1 Set the 3457A to the AC Voltage Function and run the AUTO-CAL 2 routine.
GAIN TEST
2 30mV,1KHz 30 mVAC Range —-30..05020 mv _-29.94980 mv =f.
3 300mV,1KHz 300 mVAC Range 300.5020 mv 299.4980 mv _ _
4 WV, 1kH2 3 VAC Range 1.002420 v _ 0.997580 v —-
C 2v, 1KHz 3 VAC Range 2.003720 v 1.996280 V ae
6 3V,1KHz 3 VAC Range 3.005100 v 2.994900 Vv 7
7 ~~ 30V, 1KHz 30 VAC Range 30.05020 v 7 29.94980 V Se oy pa
8 300V,1KHz 300 VAC Range 300.6820 v 99.3180 ¥ ae eee
9 30V,1KHz 300 VAC Range 030.1690 v — 029.8310 v a, oe
10. 3V, 1KHz 30 VAC Range 03.01510 v 02. 98490 a
11 300mv, 1KHz 3 VAC Range 0.301510 v 0.298490 v ~_& & = =
bi 30mv, 1KHZ 300 mVAC Range 030.1510 mv 029.8490 mv -
13 Set the 3457A to AC Fast Response (ACBAND > 400)
FREQUENCY RESPONSE TEST
14 30mv, MHz 300 mVAC Range 039.6880 mv _ 020.3120 mv -
15 30mV,300KHz 300 mVAC Range 031.9180 mv 028.0820 mv =
16 30mV,100KHz 300 mVAC Range 030.4080 mv 029.5920 mv
17 30mV,20KHz 300 mVAC Range 030.1510 mv 029.8490 mv aes, ee,
18 30mV,6.5KHz 300 mVAC Range 030.1510 mv 029.8490 mv ——
19 30mv,400Hz 300 mVAC Range 030.1510 mv 029.8490 mv Le
