ENWW Replacing supply items 93

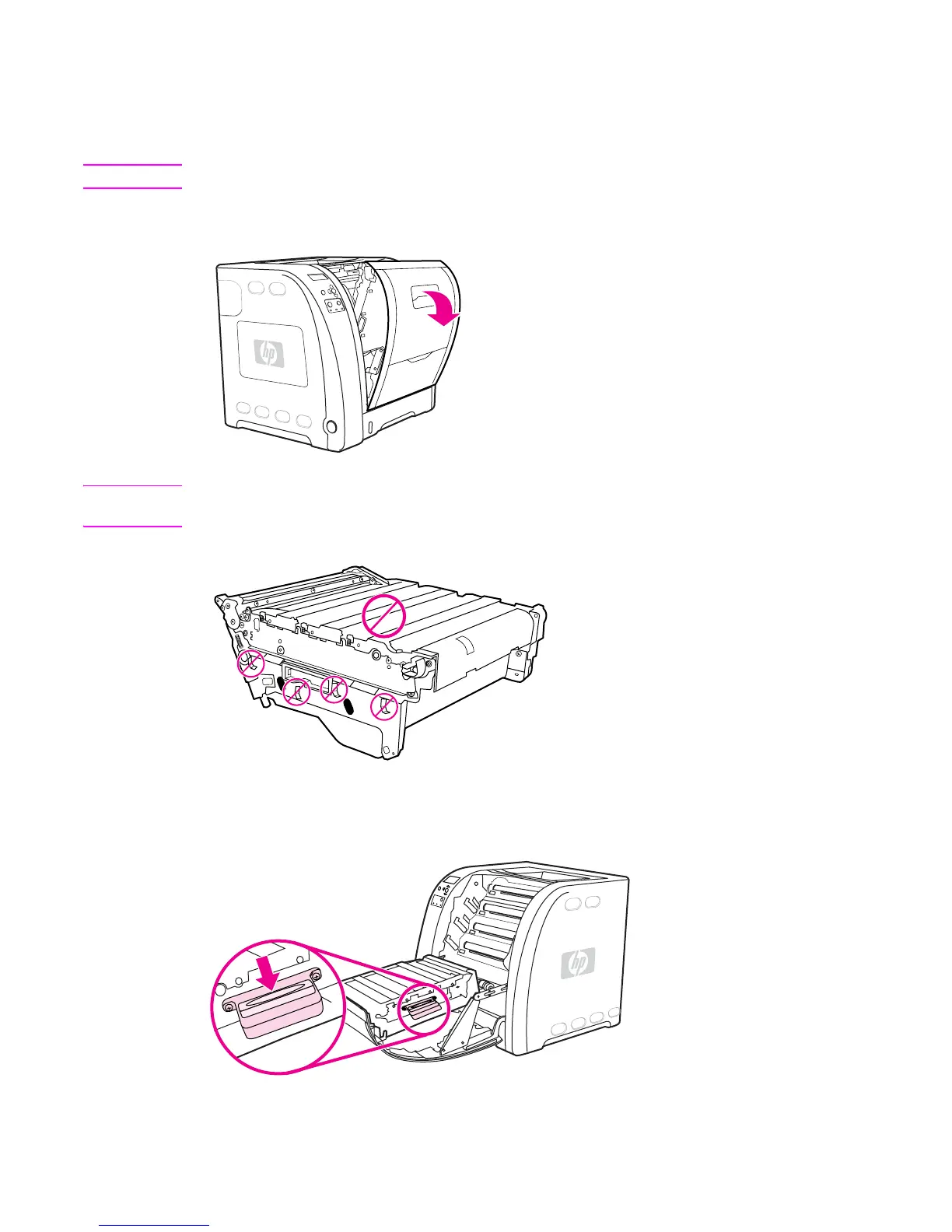

Replacing the transfer unit
Replace the transfer unit when the printer control panel displays REPLACE TRANSFER KIT. The
image transfer kit contains a replacement transfer unit for this printer.
WARNING! Remove any jewelry or any other metal items from you body to avoid electric shock.
1 Lift the front door handle and pull down the front door.
WARNING! Do not place anything on the transfer unit. Do not touch the top of the transfer unit or the contacts
on the left side of the transfer unit.
2 Grasp the right blue handle. Press and hold down the blue button. Slightly lift the right side of
the transfer unit.
