ENWW Covers 201
Covers
The following procedures describe removal of the printers external covers.

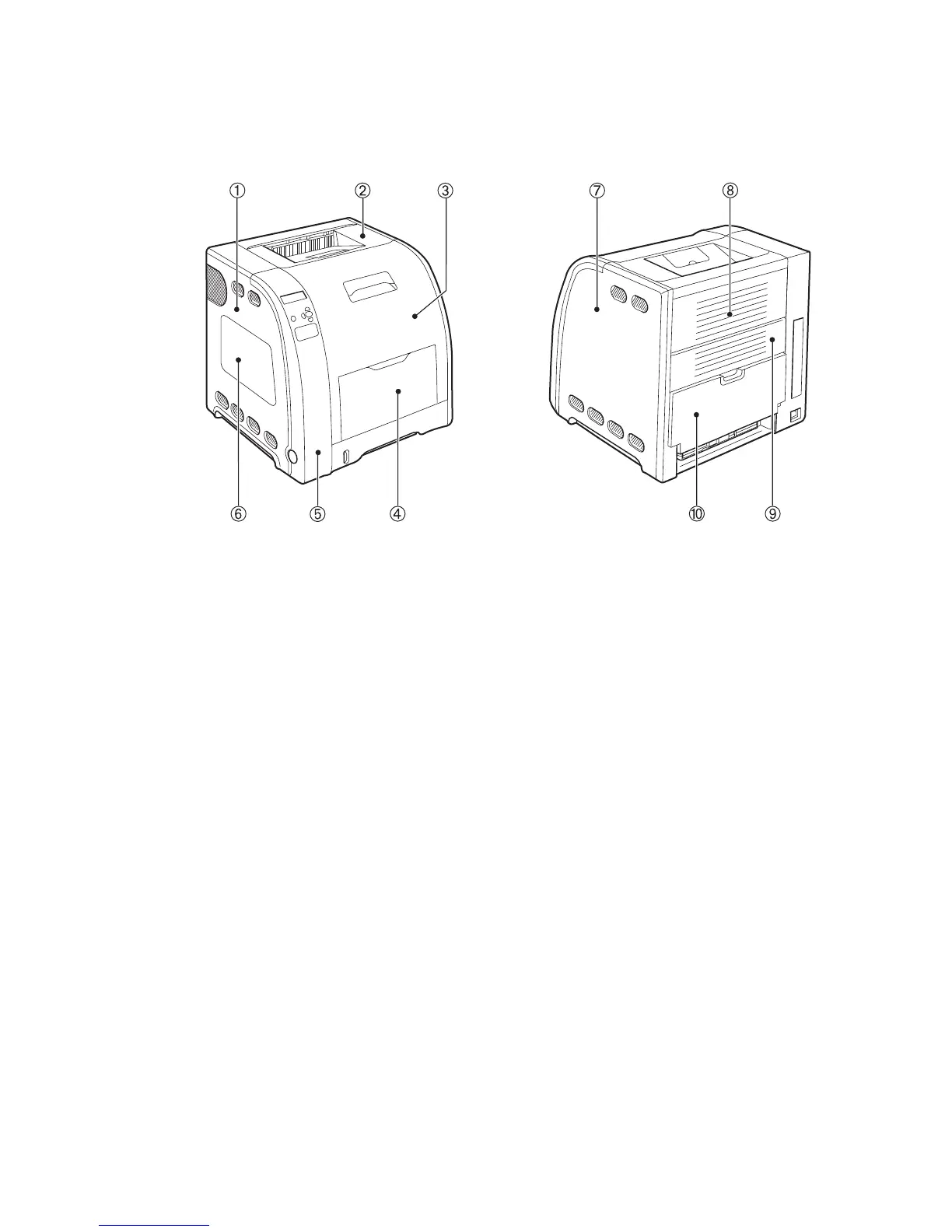

Figure 6-2 Cover locations
1. Left cover
2. Top cover
3. Front door
4. Tray 1 (multipurpose tray)
5. Left front door (includes control panel)
6. DIMM cover (HP3700 only)
7. Right cover
8. Upper rear door
9. Rear cover
10. Lower rear door (rear output bin)
