202 Removal and replacement ENWW
Front door removal
1 Open the front door.
2 Remove the transfer unit and the print cartridges. See Transfer unit removal and Print
cartridge removal.
3 Remove the right cover, see Right cover removal.
4 Remove the left cover, see Left cover removal.
5 Remove two e-clips (1) from the front door rod bracket.
6 Remove two screws (2) from the right hinge (3).

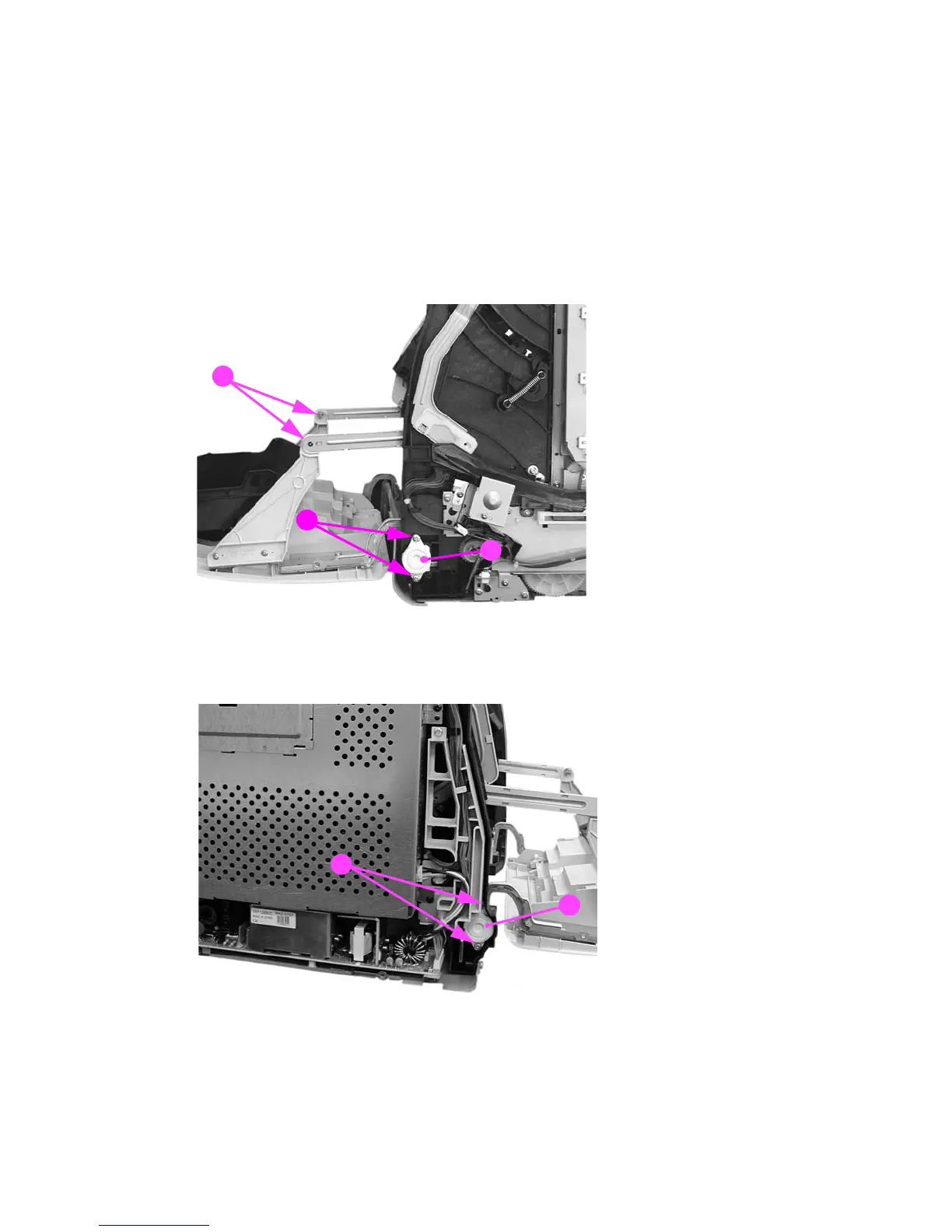

Figure 6-3 Front door removal (1 of 2)
7 Remove two screws (1) from the left hinge (2).
Figure 6-4 Front door removal (2 of 2)
2
1
3
1
2
