ENWW Solenoids and Clutches 259
3 Disconnect one connector (1), remove one screw (2), and remove the secondary transfer roller
engaging solenoid (3).

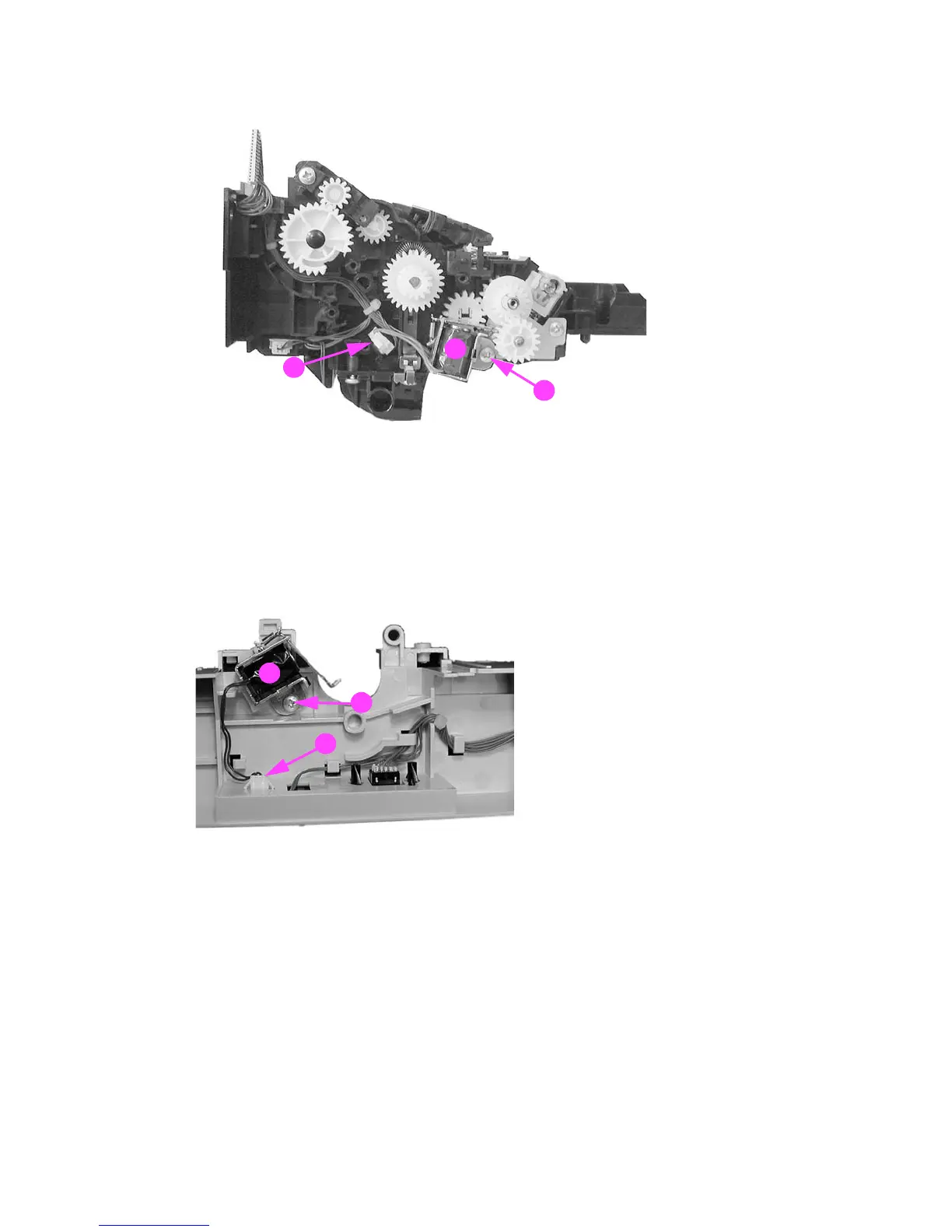

Figure 6-93 Secondary transfer roller engaging solenoid removal (2 of 2)
Duplex feed solenoid (SL5) removal (HP3700 only)
1 Remove the right 250-sheet tray guide. See Cassette (Tray 2) guide, right, removal (HP3700).
2 Disconnect one connector (1), remove one screw (2), and remove the duplex feed solenoid
(3).
Figure 6-94 Duplex feed solenoid removal
