5 Remove two screws (1) and remove the feed motor (2).
Figure 6-102 Feed motor removal (3 of 3)
Delivery motor (M2) removal
1 Remove the right cover. See Right cover removal.
2 Remove one connector (1).
3 Remove two screws (2) and remove the delivery motor (3).

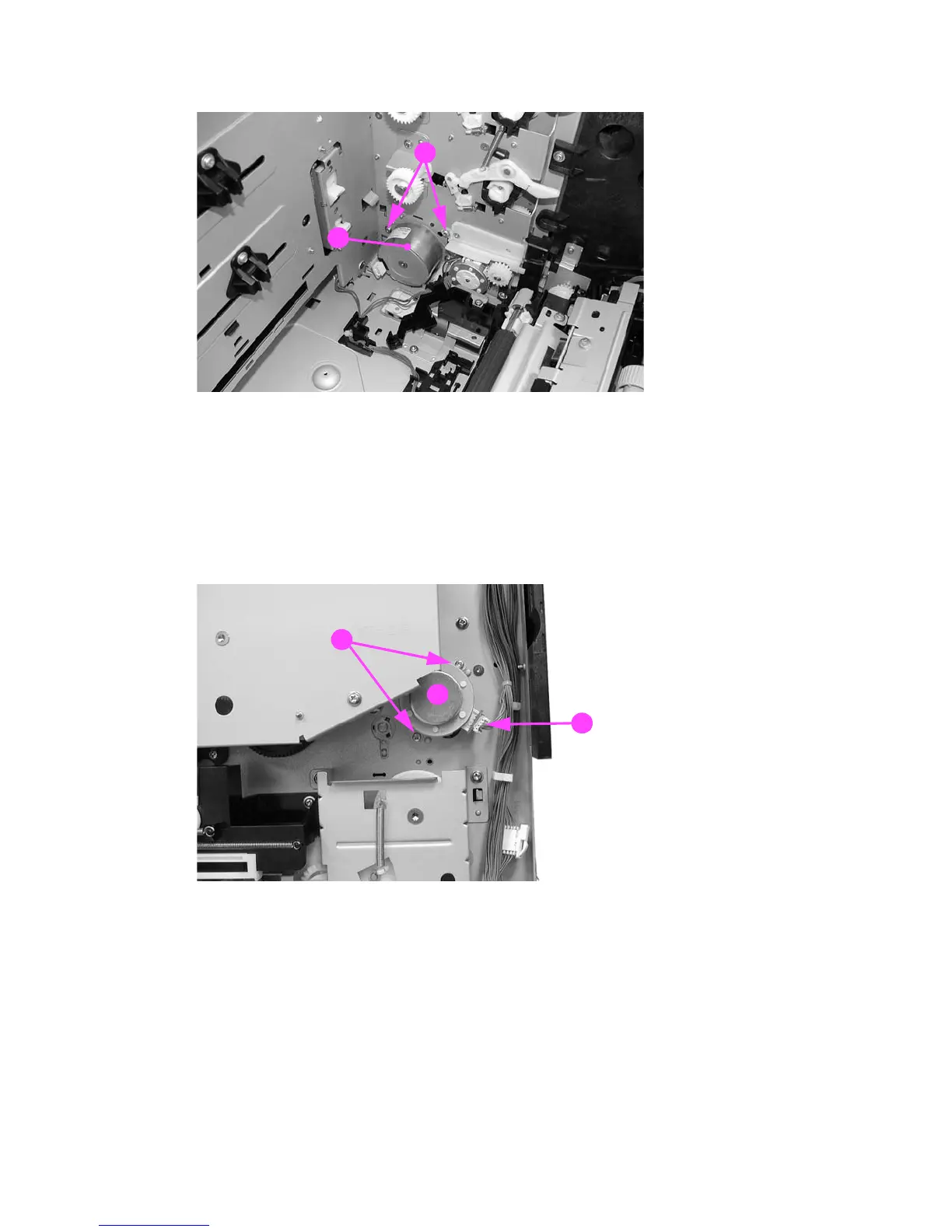

Figure 6-103 Delivery motor removal
1
2
1
2
3
