HP 3500 Series - Page 281

ENWW Motor and fans 267

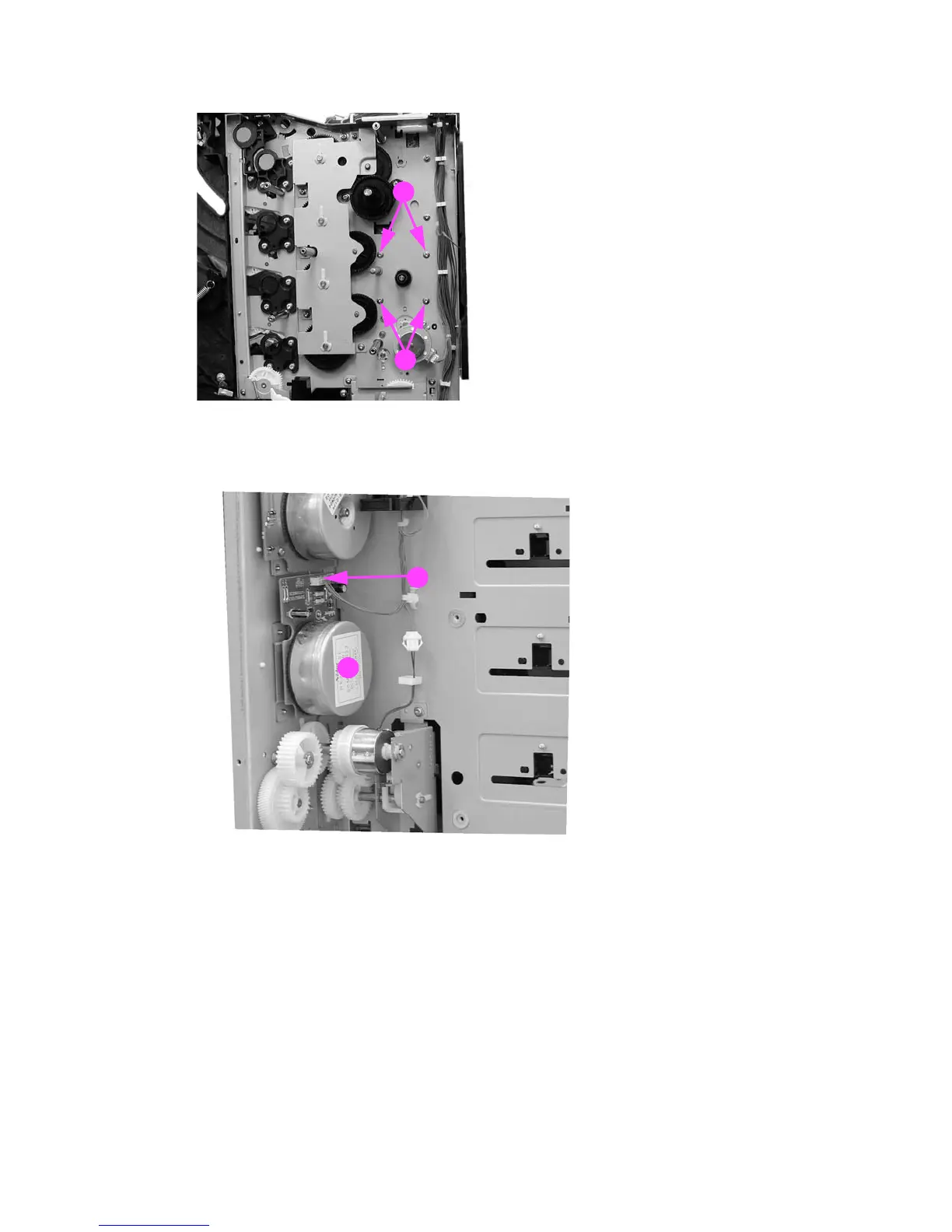

5 Remove four screws (1).
Figure 6-108 Developing motor removal (2 of 3)
6 Disconnect one connector (1) and remove the developing motor (2).
Figure 6-109 Developing motor removal (3 of 3)
1
1
2
1
