ENWW 500-Sheet paper feeder (Tray 3) covers 291
Right cover removal - 500-sheet paper feeder
1 Remove Tray 3.
2 Lift up to release two pins (1) and pull the top edge of the cover (2) in the direction of the arrow
to remove the cover (3).

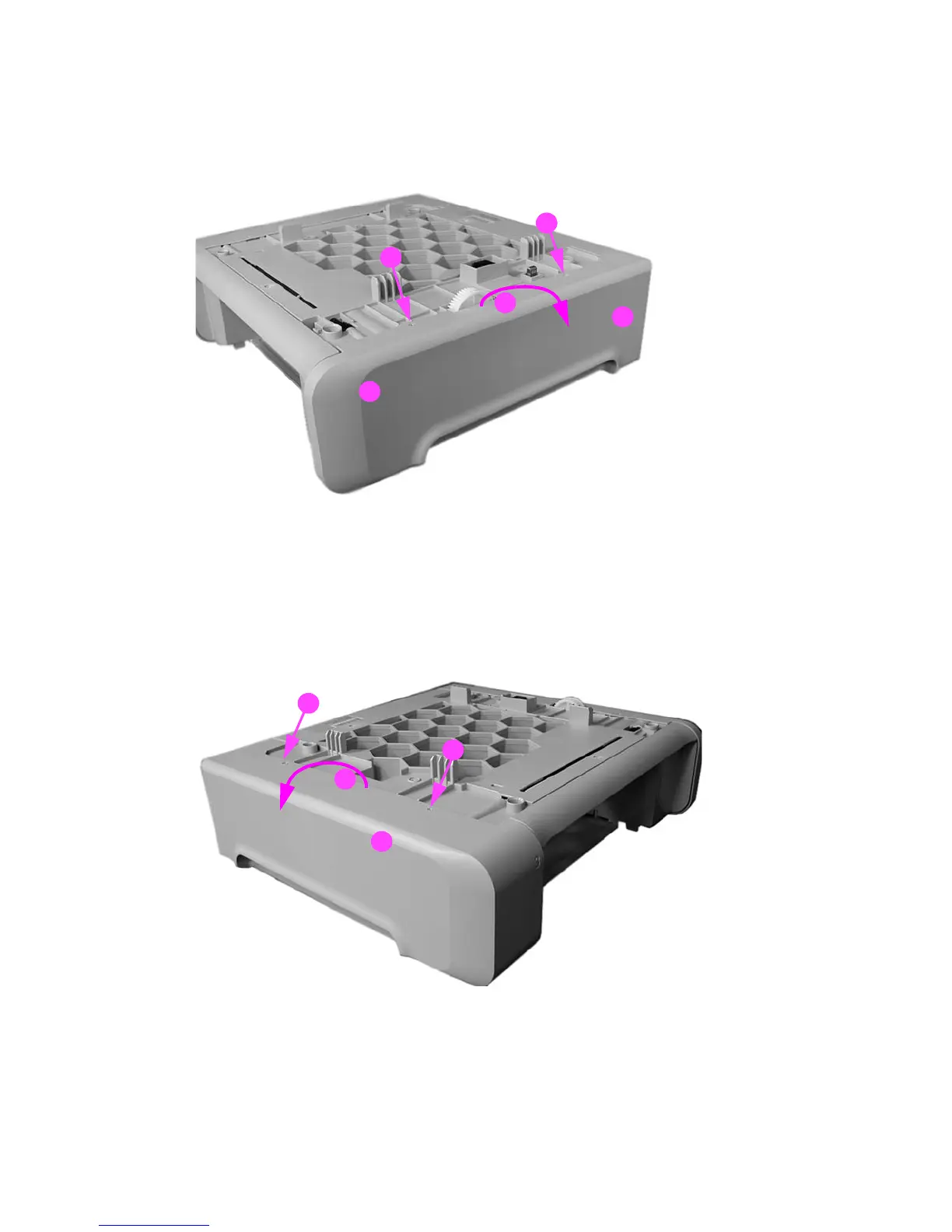

Figure 6-146 500-sheet paper feeder right cover removal
Left cover removal - 500-sheet paper feeder
1 Remove Tray 3.
2 Lift up on the top edge of the cover to release two pins (1) and pull the edge in the direction of
the arrow (2) to remove the cover (3).
Figure 6-147 500-sheet paper feeder left cover removal
1
1
2
3
3
1
1
2
3
