292 Removal and replacement ENWW
500-Sheet paper feeder internal parts
Pick-up roller removal - 500-sheet paper feeder
1 Remove Tray 3.
2 Turn the 500-sheet paper feeder over.
3 Move the left side of the roller unit (1) to the left (2), then pull it out and to the right (3).

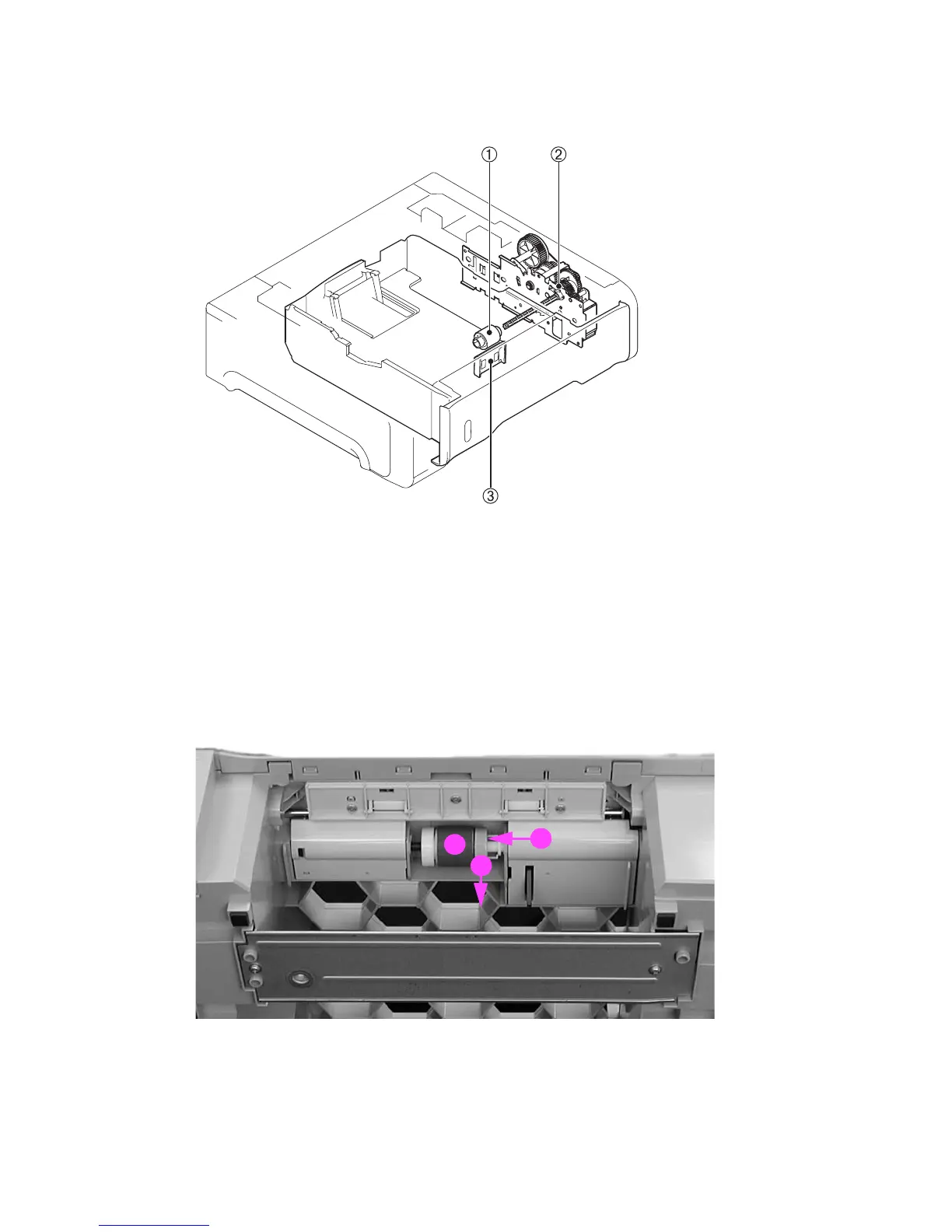

Figure 6-148 500-Sheet paper feeder pick-up roller removal
1. 500-Sheet paper feeder pick-up roller
2. 500-Sheet paper feeder pick-up drive unit
3. 500-Sheet paper feeder separation pad
3
1
2
